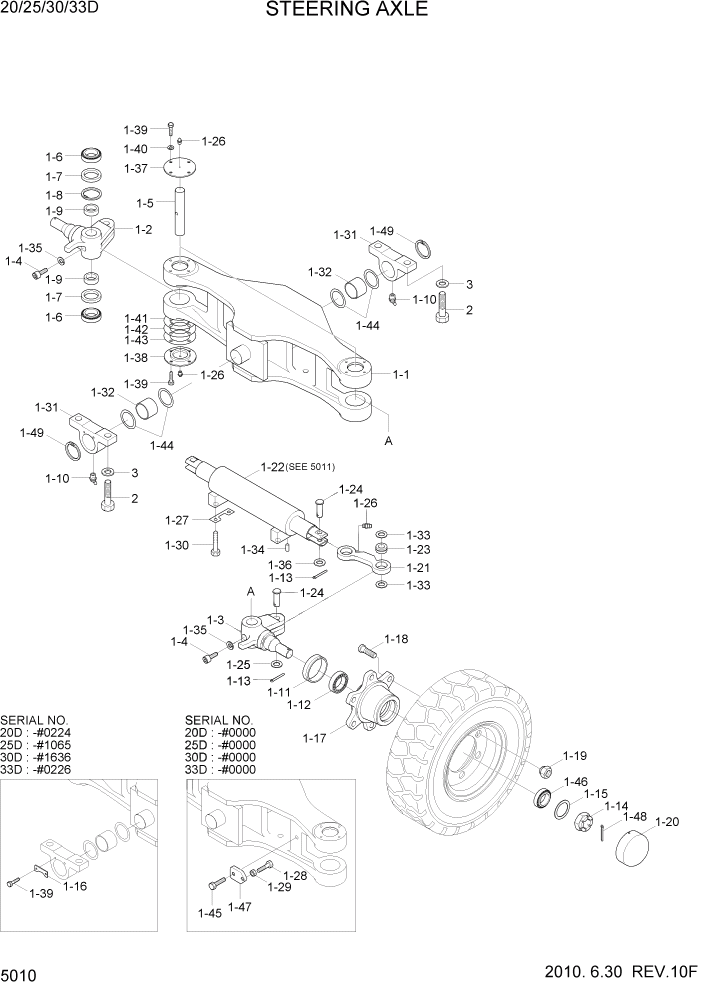

Запчасти Hyundai 20/25/30/33D-7 PAGE 5010 STEERING AXLE СИСТЕМА УПРАВЛЕНИЯ

1

81HA-50011

STEERING AXLE ASSY

20D #0224

1шт.

1

81HA-50012

STEERING AXLE ASSY

20D #0225

1шт.

1

81HA-50011

STEERING AXLE ASSY

25D #1065

1шт.

1

81HA-50012

STEERING AXLE ASSY

25D #1066

1шт.

1

81HA-50011

STEERING AXLE ASSY

30D #1636

1шт.

1

81HA-50012

STEERING AXLE ASSY

30D #1637

1шт.

1

81HA-50011

STEERING AXLE ASSY

33D #0226

1шт.

1

81HA-50012

STEERING AXLE ASSY

33D #0227

1шт.

1-1

81HA-50021

STEERING AXLE

20D #0224

1шт.

1-1

81HA-50022

STEERING AXLE

20D #0225

1шт.

1-1

81HA-50021

STEERING AXLE

25D #1065

1шт.

1-1

81HA-50022

STEERING AXLE

25D #1066

1шт.

1-1

81HA-50021

STEERING AXLE

30D #1636

1шт.

1-1

81HA-50022

STEERING AXLE

30D #1637

1шт.

1-1

81HA-50021

STEERING AXLE

33D #0226

1шт.

1-1

81HA-50022

STEERING AXLE

33D #0227

1шт.

1-2

81HA-50031

KNUCKLE-RH

1шт.

1-3

81HA-50041

KNUCKLE-LH

1шт.

1-4

FAD0500150-DA

BOLT-SPECIAL

2шт.

1-5

81HA-50050

PIN-KING

2шт.

1-6

81FG-50700

BEARING-T/ROLLER

4шт.

1-7

81HA-50120

SEAL-OIL

4шт.

1-8

S602-062004

RING-RETAINING

2шт.

1-9

81HA-50070

COLLAR

4шт.

1-1

S652-810008

NIPPLE-GREASE

2шт.

1-11

81FA-52400

SEAL-OIL,T6285

2шт.

1-12

81FA-53070

BEARING-TAPER ROLLER

2шт.

1-13

S461-500302

PIN-SPLIT

6шт.

1-14

81F7-51210

NUT

2шт.

1-15

81FA-52500

WASHER

2шт.

1-16

81HA-50150

PLATE

20D #0224

2шт.

1-16

81HA-50150

PLATE

25D #1065

2шт.

1-16

81HA-50150

PLATE

30D #1636

2шт.

1-16

81HA-50150

PLATE

33D #0226

2шт.

1-17

81HA-50061

HUB

2шт.

1-18

3677012900-01

BOLT-HUB

12шт.

1-19

3678003000-DA

NUT-HUB

12шт.

1-2

XKCF-00220

CAP-HUB

#0001

2шт.

1-21

81HA-50171

LINK-STEERING

2шт.

1-22

@

STEERING CYLINDER

NOT

1шт.

1-23

Q100333000

BEARING-SPH PLAIN

4шт.

1-24

Q100325000

PIN-STEER LINK

4шт.

1-25

S403-201006

WASHER-PLAIN

2шт.

1-26

S651-060008

NIPPLE-GREASE

8шт.

1-27

Q100327000

PLATE-LOCK

2шт.

1-28

906291

BOLT

2шт.

1-29

S205-121006

NUT-HEX

2шт.

1-3

S018-16045D

BOLT-HEX

4шт.

1-31

81HA-50080

BLOCK-TRUNNION

20D #0224

2шт.

1-31

81HA-50081

BLOCK-TRUNNION

20D #0225

2шт.

1-31

81HA-50080

BLOCK-TRUNNION

25D #1065

2шт.

1-31

81HA-50081

BLOCK-TRUNNION

25D #1066

2шт.

1-31

81HA-50080

BLOCK-TRUNNION

30D #1636

2шт.

1-31

81HA-50081

BLOCK-TRUNNION

30D #1637

2шт.

1-31

81HA-50080

BLOCK-TRUNNION

33D #0226

2шт.

1-31

81HA-50081

BLOCK-TRUNNION

33D #0227

2шт.

1-32

FAC0500160

BUSHING

2шт.

1-33

Q100338000

WASHER-THRUST

6шт.

1-34

6600366100-01

PIN

1шт.

1-35

S411-100006

WASHER-SPRING

2шт.

1-36

S441-200006

WASHER-HARDENED

2шт.

1-37

81HA-50090

COVER-UPPER

2шт.

1-38

81HA-50100

COVER-LOWER

2шт.

1-39

S017-080156

BOLT-HEX

20D #0224

20шт.

1-39

S017-080156

BOLT-HEX

20D #0225

16шт.

1-39

S017-080156

BOLT-HEX

25D #1065

20шт.

1-39

S017-080156

BOLT-HEX

25D #1066

16шт.

1-39

S017-080156

BOLT-HEX

30D #1636

20шт.

1-39

S017-080156

BOLT-HEX

30D #1637

16шт.

1-39

S017-080156

BOLT-HEX

33D #0226

20шт.

1-39

S017-080156

BOLT-HEX

33D #0227

16шт.

1-4

S411-080006

WASHER-SPRING

16шт.

1-41

81HA-50110

SHIM(0.1)

2шт.

1-42

81HA-50130

SHIM(0.15)

2шт.

1-43

81HA-50140

SHIM(0.3)

2шт.

1-44

81HA-50161

SPACER(0.5)

3шт.

1-45

S017-100306

BOLT-HEX

4шт.

1-46

FAD0500210

BEARING-TAPER ROLLER

2шт.

1-47

81HA-50190

PLATE

2шт.

1-48

S461-500562

PIN-SPLIT

2шт.

1-49

S602-056004

RING-RETAINING

20D #0225

2шт.

1-49

S602-056004

RING-RETAINING

25D #1066

2шт.

1-49

S602-056004

RING-RETAINING

30D #1637

2шт.

1-49

S602-056004

RING-RETAINING

33D #0227

2шт.

2

S017-200556

BOLT-HEX

2e-06 #0001

4шт.

2

S017-200556

BOLT-HEX

2.5e-06 #0001

4шт.

2

S017-200556

BOLT-HEX

3e-06 #0001

4шт.

2

S017-20060D

BOLT-HEX

3.3e-06 #0002

4шт.

2

S017-200556

BOLT-HEX

3.3e-06 #0003

4шт.

3

S441-200002

WASHER-HARDENED

4шт.
