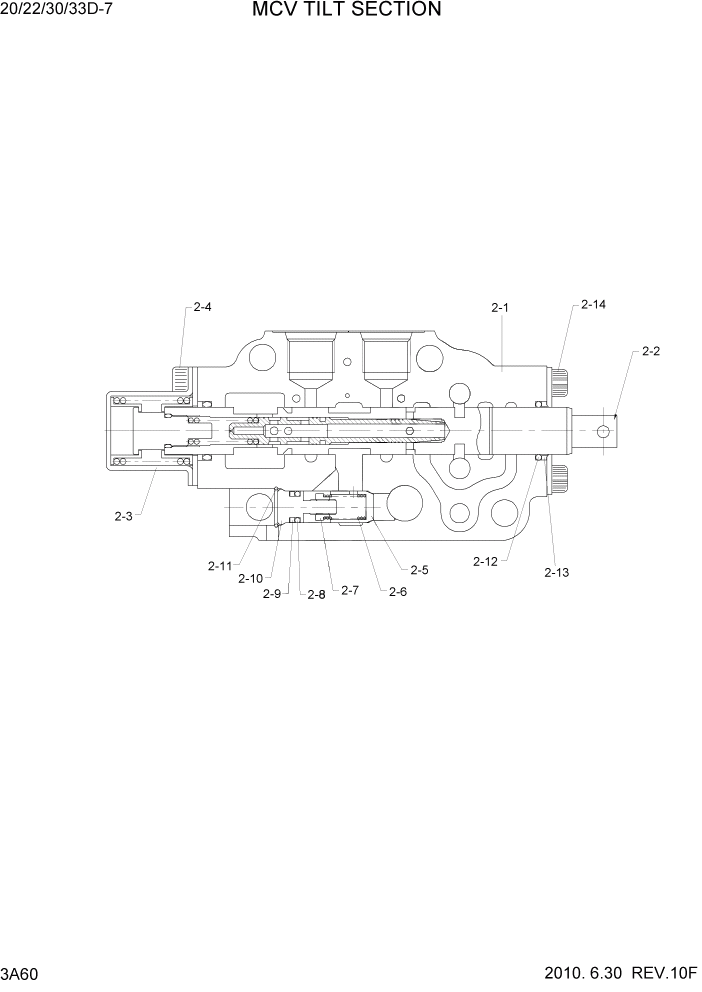

Запчасти Hyundai 20/25/30/33D-7 PAGE 3A60 MCV TILT SECTION ГИДРАВЛИЧЕСКАЯ СИСТЕМА

2

XKBF-00977

TILT BLOCK ASSY

2-SPOOL #0264

1шт.

2

XKBF-00977

TILT BLOCK ASSY

2-SPOOL #1293

1шт.

2

XKBF-00977

TILT BLOCK ASSY

2-SPOOL #2014

1шт.

2

XKBF-00977

TILT BLOCK ASSY

2-SPOOL #0287

1шт.

2

XKBF-01026

TILT BLOCK ASSY

3,4-SPOOL #0264

1шт.

2

XKBF-01026

TILT BLOCK ASSY

3,4-SPOOL #1293

1шт.

2

XKBF-01026

TILT BLOCK ASSY

3,4-SPOOL #2014

1шт.

2

XKBF-01026

TILT BLOCK ASSY

3,4-SPOOL #0287

1шт.

N2-1

XKBF-01009

INLET BLOCK-TILT

NOT

1шт.

N2-1

XKBF-01030

MID BLOCK-TILT

NOT

1шт.

2-2

XKBF-01031

SPOOL ASSY-TILT

1шт.

2-3

XKBF-01011

RETURN CAP

1шт.

2-4

XKBF-00694

WRENCH BOLT

4шт.

2-5

XKBF-01012

POPPET-LOAD C/V

1шт.

2-6

XKBF-01013

SPRING-LOAD CHECK

1шт.

2-7

XKBF-01014

ADJUST-LOAD C/V

1шт.

2-8

XKBF-01015

O-RING

1шт.

2-9

XKBF-01016

BACK UP RING

1шт.

2-1

XKBF-01017

PLUG-ADJUST

1шт.

2-11

XKBF-01018

C-RING

1шт.

K2-12

XKBF-01004

O-RING

SEE 3A20-3A40

1шт.

K2-13

XKBF-01005

WIPER-DUST

SEE 3A20-3A40

1шт.

2-14

XKBF-01019

PLATE-SEAL

1шт.
