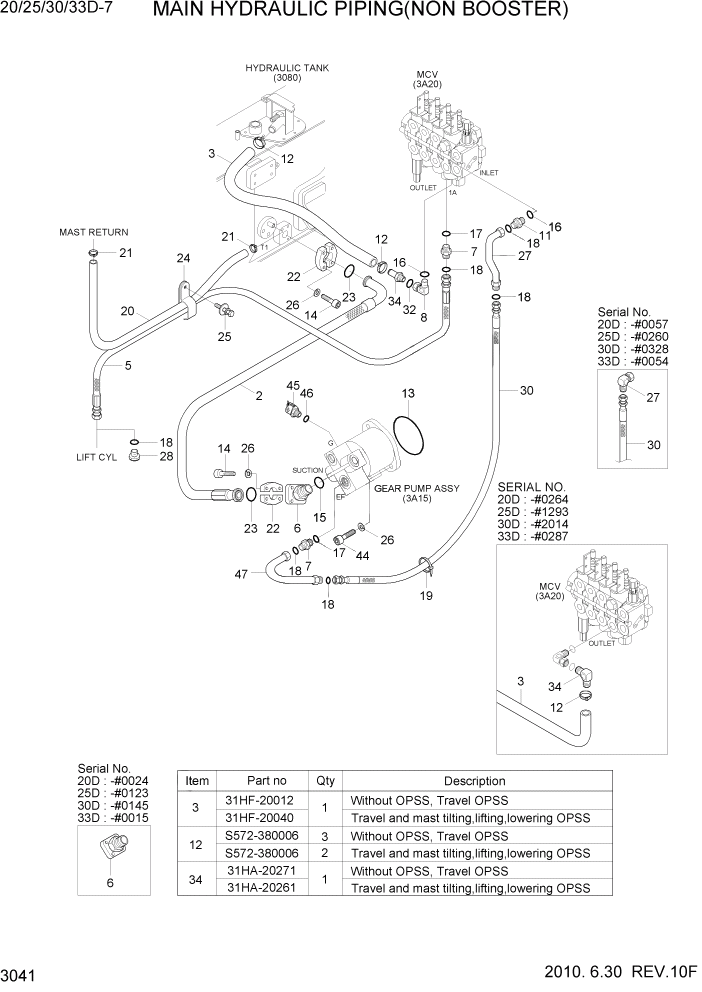

Запчасти Hyundai 20/25/30/33D-7 PAGE 3041 MAIN HYDRAULIC PIPING(NON BOOSTER) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

2

31HA-20211

HOSE ASSY 0X90

1шт.

3

31HF-20012

HOSE-RETURN

SEE ILLUST, 20D #0264

1шт.

3

31HF-20012

HOSE-RETURN

SEE ILLUST, 25D #1293

1шт.

3

31HF-20012

HOSE-RETURN

SEE ILLUST, 30D #2014

1шт.

3

31HF-20012

HOSE-RETURN

SEE ILLUST, 33D #0287

1шт.

3

31HF-20040

HOSE-RETURN

SEE ILLUST

1шт.

4

P920-104015

HOSE ASSY-ORFS 0X45

20D #0024

1шт.

4

31HC-20030

HOSE ASSY-ORFS 0X45D

20D #0025

1шт.

4

P920-104015

HOSE ASSY-ORFS 0X45

25D #0123

1шт.

4

31HC-20030

HOSE ASSY-ORFS 0X45D

25D #0124

1шт.

4

P920-104015

HOSE ASSY-ORFS 0X45

30D #0145

1шт.

4

31HC-20030

HOSE ASSY-ORFS 0X45D

30D #0146

1шт.

4

P920-104015

HOSE ASSY-ORFS 0X45

33D #0015

1шт.

4

31HC-20030

HOSE ASSY-ORFS 0X45D

33D #0016

1шт.

5

P913-104029

HOSE ASSY-ORFS 0X0

1шт.

6

31HA-20200

CONNECTOR-FLANGE

20D #0024

1шт.

6

31HA-20201

ELBOW-25D,FLANGE

20D #0025

1шт.

6

31HA-20200

CONNECTOR-FLANGE

25D #0123

1шт.

6

31HA-20201

ELBOW-25D,FLANGE

25D #0124

1шт.

6

31HA-20200

CONNECTOR-FLANGE

30D #0145

1шт.

6

31HA-20201

ELBOW-25D,FLANGE

30D #0146

1шт.

6

31HA-20200

CONNECTOR-FLANGE

33D #0015

1шт.

6

31HA-20201

ELBOW-25D,FLANGE

33D #0016

1шт.

7

31HA-20061

CONNECTOR

2шт.

8

31HH-20140

ELBOW-90D,SWIVEL

1шт.

11

31FT-70130

CONNECTOR

20D #0024

1шт.

11

31FT-70131

CONNECTOR

20D #0025

1шт.

11

31FT-70130

CONNECTOR

25D #0123

1шт.

11

31FT-70131

CONNECTOR

25D #0124

1шт.

11

31FT-70130

CONNECTOR

30D #0145

1шт.

11

31FT-70131

CONNECTOR

30D #0146

1шт.

11

31FT-70130

CONNECTOR

33D #0015

1шт.

11

31FT-70131

CONNECTOR

33D #0016

1шт.

12

S572-380006

CLAMP-HOSE WIRE TYPE

SEE ILLUST, 20D #0264

3шт.

12

S572-380006

CLAMP-HOSE WIRE TYPE

SEE ILLUST, 25D #1293

3шт.

12

S572-380006

CLAMP-HOSE WIRE TYPE

SEE ILLUST, 30D #2014

3шт.

12

S572-380006

CLAMP-HOSE WIRE TYPE

SEE ILLUST, 33D #0287

3шт.

12

S572-380006

CLAMP-HOSE WIRE TYPE

SEE ILLUST

2шт.

13

31FJ-20070

GASKET

1шт.

14

S109-100356

BOLT-SOCKET

8шт.

15

S611-030001

O-RING

1шт.

16

S611-023001

O-RING

2шт.

17

S611-019001

O-RING

4шт.

18

S621-016001

O-RING

5шт.

19

S552-050203

CLAMP-BAND

5шт.

20

31FA-10660

HOSE

1шт.

21

S572-240006

CLAMP-HOSE,WIRE TYPE

2шт.

22

P173-160104

FLANGE-HYD,SPLIT

4шт.

23

Y171-024004

O-RING

2шт.

24

31HA-20240

CLAMP-HOSE

1шт.

25

S035-082026

BOLT-W/WASHER

20D #0050

2шт.

25

S035-082036

BOLT-W/WASHER

20D #0051 - #0119

2шт.

25

S035-082036

BOLT-W/WASHER

20D #0120

3шт.

25

S035-082026

BOLT-W/WASHER

25D #0218

2шт.

25

S035-082036

BOLT-W/WASHER

25D #0219 - #0488

2шт.

25

S035-082036

BOLT-W/WASHER

25D #0489

3шт.

25

S035-082026

BOLT-W/WASHER

30D #0276

2шт.

25

S035-082036

BOLT-W/WASHER

30D #0277 - #0666

2шт.

25

S035-082036

BOLT-W/WASHER

30D #0667

3шт.

25

S035-082026

BOLT-W/WASHER

33D #0029

2шт.

25

S035-082036

BOLT-W/WASHER

33D #0030 - #0083

2шт.

25

S035-082036

BOLT-W/WASHER

33D #0084

3шт.

26

S411-100006

WASHER-SPRING

10шт.

27

31HA-20011

ELBOW-90D,SWIVEL

20D #0057

1шт.

27

31HA-20290

TUBE ASSY,(O15.88)

20D #0058

1шт.

27

31HA-20011

ELBOW-90D,SWIVEL

25D #0260

1шт.

27

31HA-20290

TUBE ASSY,(O15.88)

25D #0261

1шт.

27

31HA-20011

ELBOW-90D,SWIVEL

30D #0328

1шт.

27

31HA-20290

TUBE ASSY,(O15.88)

30D #0329

1шт.

27

31HA-20011

ELBOW-90D,SWIVEL

33D #0054

1шт.

27

31HA-20290

TUBE ASSY,(O15.88)

33D #0055

1шт.

28

31HF-20030

PLUG-ORFS

1шт.

30

P933-104024

HOSE ASSY-ORFS 0X90

20D #0057

1шт.

30

P933-104022

HOSE ASSY-ORFS 0X90

20D #0058

1шт.

30

P933-104024

HOSE ASSY-ORFS 0X90

25D #0260

1шт.

30

P933-104022

HOSE ASSY-ORFS 0X90

25D #0261

1шт.

30

P933-104024

HOSE ASSY-ORFS 0X90

30D #0328

1шт.

30

P933-104022

HOSE ASSY-ORFS 0X90

30D #0329

1шт.

30

P933-104024

HOSE ASSY-ORFS 0X90

33D #0054

1шт.

30

P933-104022

HOSE ASSY-ORFS 0X90

33D #0055

1шт.

32

S621-018001

O-RING

1шт.

33

31HA-20041

ELBOW-90

1шт.

34

31HA-20271

ELBOW-90D,ORFS

SEE ILLUST, 20D #0264

1шт.

34

31HA-20261

CONNECTOR

SEE ILLUST

1шт.

34

31HA-20271

ELBOW-90D,ORFS

SEE ILLUST, 25D #1293

1шт.

34

31HA-20271

ELBOW-90D,ORFS

SEE ILLUST, 30D #2014

1шт.

34

31HA-20271

ELBOW-90D,ORFS

SEE ILLUST, 33D #0287

1шт.

34

31HA-20261

CONNECTOR

SEE ILLUST

1шт.

39

S015-080606

BOLT-HEX

20D #0050

2шт.

39

S015-080556

BOLT-HEX

20D #0051

2шт.

39

S015-080606

BOLT-HEX

25D #0218

2шт.

39

S015-080556

BOLT-HEX

25D #0219

2шт.

39

S015-080606

BOLT-HEX

30D #0276

2шт.

39

S015-080556

BOLT-HEX

30D #0277

2шт.

39

S015-080606

BOLT-HEX

33D #0029

2шт.

39

S015-080556

BOLT-HEX

33D #0030

2шт.

40

31HA-20281

CLAMP-HOSE

20D #0119

1шт.

40

31HA-20281

CLAMP-HOSE

20D #0120

2шт.

40

31HA-20281

CLAMP-HOSE

25D #0488

1шт.

40

31HA-20281

CLAMP-HOSE

25D #0489

2шт.

40

31HA-20281

CLAMP-HOSE

30D #0666

1шт.

40

31HA-20281

CLAMP-HOSE

30D #0667

2шт.

40

31HA-20281

CLAMP-HOSE

33D #0083

1шт.

40

31HA-20281

CLAMP-HOSE

33D #0084

2шт.

41

S411-080006

WASHER-SPRING

2шт.

43

31HA-20150

ELBOW-90D,ORFS

1шт.

44

S109-100306

BOLT-SOCKET

2шт.
