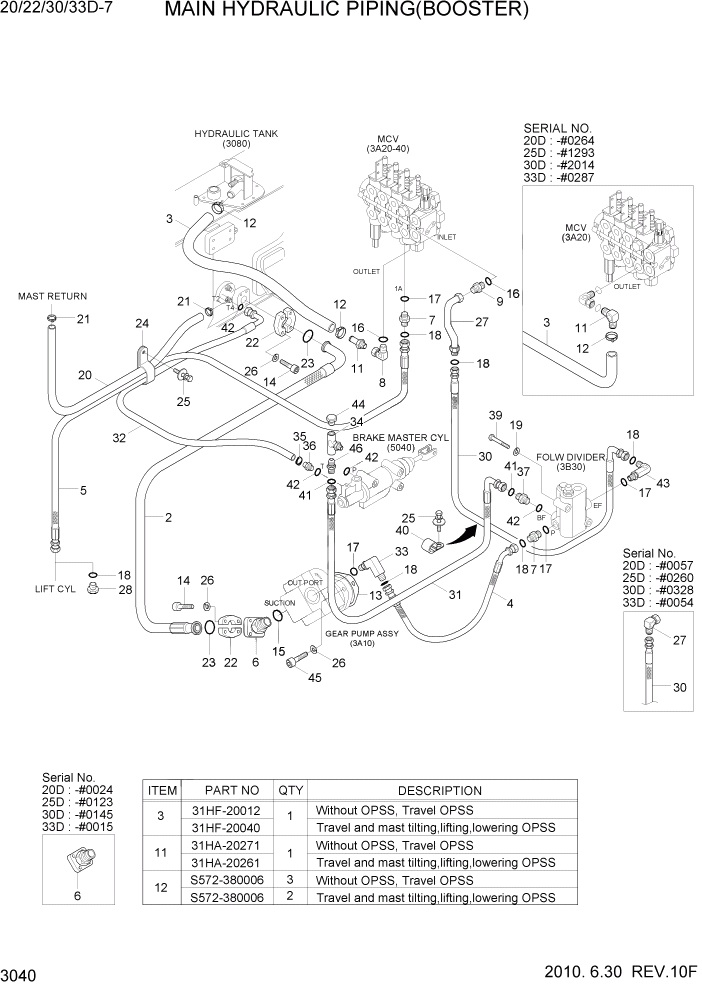

Запчасти Hyundai 20/25/30/33D-7 PAGE 3040 MAIN HYDRAULIC PIPING(BOOSTER) ГИДРАВЛИЧЕСКАЯ СИСТЕМА
№
Артикул
Название
Примечание
Количество
2
31HA-20212
HOSE ASSY 0X90
1шт.
3
31HF-20012
HOSE-RETURN
SEE ILLUST, 20D #0264
1шт.
3
31HF-20012
HOSE-RETURN
SEE ILLUST, 25D #1293
1шт.
3
31HF-20012
HOSE-RETURN
SEE ILLUST, 30D #2014
1шт.
3
31HF-20012
HOSE-RETURN
SEE ILLUST, 33D #0287
1шт.
3
31HF-20040
HOSE-RETURN
SEE ILLUST
1шт.
4
P920-104015
HOSE ASSY-ORFS 0X45
20D #0024
1шт.
4
31HC-20030
HOSE ASSY-ORFS 0X45D
20D #0025
1шт.
4
P920-104015
HOSE ASSY-ORFS 0X45
25D #0123
1шт.
4
31HC-20030
HOSE ASSY-ORFS 0X45D
25D #0124
1шт.
4
P920-104015
HOSE ASSY-ORFS 0X45
30D #0145
1шт.
4
31HC-20030
HOSE ASSY-ORFS 0X45D
30D #0146
1шт.
4
P920-104015
HOSE ASSY-ORFS 0X45
33D #0015
1шт.
4
31HC-20030
HOSE ASSY-ORFS 0X45D
33D #0016
1шт.
5
P913-104029
HOSE ASSY-ORFS 0X0
1шт.
6
31HA-20200
CONNECTOR-FLANGE
20D #0024
1шт.
6
31HA-20201
ELBOW-25D,FLANGE
20D #0025
1шт.
6
31HA-20200
CONNECTOR-FLANGE
25D #0123
1шт.
6
31HA-20201
ELBOW-25D,FLANGE
25D #0124
1шт.
6
31HA-20200
CONNECTOR-FLANGE
30D #0145
1шт.
6
31HA-20201
ELBOW-25D,FLANGE
30D #0146
1шт.
6
31HA-20200
CONNECTOR-FLANGE
33D #0015
1шт.
6
31HA-20201
ELBOW-25D,FLANGE
33D #0016
1шт.
7
31HA-20061
CONNECTOR
2шт.
8
31HH-20140
ELBOW-90D,SWIVEL
1шт.
9
31FT-70130
CONNECTOR
20D #0024
1шт.
9
31FT-70131
CONNECTOR
20D #0025
1шт.
9
31FT-70130
CONNECTOR
25D #0123
1шт.
9
31FT-70131
CONNECTOR
25D #0124
1шт.
9
31FT-70130
CONNECTOR
30D #0145
1шт.
9
31FT-70131
CONNECTOR
30D #0146
1шт.
9
31FT-70130
CONNECTOR
33D #0015
1шт.
9
31FT-70131
CONNECTOR
33D #0016
1шт.
11
31HA-20271
ELBOW-90D,ORFS
SEE ILLUST, 20D #0264
1шт.
11
31HA-20261
CONNECTOR
SEE ILLUST
1шт.
11
31HA-20271
ELBOW-90D,ORFS
SEE ILLUST, 25D #1293
1шт.
11
31HA-20271
ELBOW-90D,ORFS
SEE ILLUST, 30D #2014
1шт.
11
31HA-20271
ELBOW-90D,ORFS
SEE ILLUST, 33D #0287
1шт.
11
31HA-20261
CONNECTOR
SEE ILLUST
1шт.
12
S572-380006
CLAMP-HOSE WIRE TYPE
SEE ILLUST, 20D #0264
3шт.
12
S572-380006
CLAMP-HOSE WIRE TYPE
SEE ILLUST, 25D #1293
3шт.
12
S572-380006
CLAMP-HOSE WIRE TYPE
SEE ILLUST, 30D #2014
3шт.
12
S572-380006
CLAMP-HOSE WIRE TYPE
SEE ILLUST, 33D #0287
3шт.
12
S572-380006
CLAMP-HOSE WIRE TYPE
SEE ILLUST
2шт.
13
31FJ-20070
GASKET
1шт.
14
S109-100356
BOLT-SOCKET
8шт.
15
S611-030001
O-RING
1шт.
16
S611-023001
O-RING
2шт.
17
S611-019001
O-RING
3шт.
19
S411-080006
WASHER-SPRING
2шт.
20
31FA-10660
HOSE
1шт.
24
31HA-20240
CLAMP-HOSE
1шт.
25
S035-082036
BOLT-W/WASHER
20D #0051 - #0119
2шт.
25
S035-082036
BOLT-W/WASHER
20D #0120
3шт.
25
S035-082036
BOLT-W/WASHER
25D #0219 - #0488
2шт.
25
S035-082036
BOLT-W/WASHER
25D #0489
3шт.
25
S035-082036
BOLT-W/WASHER
30D #0277 - #0666
2шт.
25
S035-082036
BOLT-W/WASHER
30D #0667
3шт.
25
S035-082036
BOLT-W/WASHER
33D #0030 - #0083
2шт.
25
S035-082036
BOLT-W/WASHER
33D #0084
3шт.
27
31HA-20011
ELBOW-90D,SWIVEL
20D #0057
1шт.
27
31HA-20290
TUBE ASSY,(O15.88)
20D #0058
1шт.
27
31HA-20011
ELBOW-90D,SWIVEL
25D #0260
1шт.
27
31HA-20290
TUBE ASSY,(O15.88)
25D #0261
1шт.
27
31HA-20011
ELBOW-90D,SWIVEL
30D #0328
1шт.
27
31HA-20290
TUBE ASSY,(O15.88)
30D #0329
1шт.
27
31HA-20011
ELBOW-90D,SWIVEL
33D #0054
1шт.
27
31HA-20290
TUBE ASSY,(O15.88)
33D #0055
1шт.
28
31HF-20030
PLUG-ORFS
1шт.
30
P933-104024
HOSE ASSY-ORFS 0X90
20D #0024
1шт.
30
P933-104025
HOSE ASSY-ORFS 0X90
20D #0025 - #0057
1шт.
30
P933-104022
HOSE ASSY-ORFS 0X90
20D #0058
1шт.
30
P933-104024
HOSE ASSY-ORFS 0X90
25D #0123
1шт.
30
P933-104025
HOSE ASSY-ORFS 0X90
25D #0124 - #0260
1шт.
30
P933-104022
HOSE ASSY-ORFS 0X90
25D #0261
1шт.
30
P933-104024
HOSE ASSY-ORFS 0X90
30D #0145
1шт.
30
P933-104025
HOSE ASSY-ORFS 0X90
30D #0146 - #0328
1шт.
30
P933-104022
HOSE ASSY-ORFS 0X90
30D #0329
1шт.
30
P933-104024
HOSE ASSY-ORFS 0X90
33D #0015
1шт.
30
P933-104025
HOSE ASSY-ORFS 0X90
33D #0016 - #0054
1шт.
30
P933-104022
HOSE ASSY-ORFS 0X90
33D #0055
1шт.
31
P930-064017
HOSE ASSY-ORFS 0X90
1шт.
32
P760-013115
HOSE-RUBBER
1шт.
33
31HA-20041
ELBOW-90
1шт.
34
31HA-20111
TEE,WITH TEST PORT
20D #0057
1шт.
34
31HA-20112
TEE,WITH TEST PORT
20D #0058
1шт.
34
31HA-20111
TEE,WITH TEST PORT
25D #0265
1шт.
34
31HA-20112
TEE,WITH TEST PORT
25D #0266
1шт.
34
31HA-20111
TEE,WITH TEST PORT
30D #0339
1шт.
34
31HA-20112
TEE,WITH TEST PORT
30D #0340
1шт.
34
31HA-20111
TEE,WITH TEST PORT
33D #0060
1шт.
34
31HA-20112
TEE,WITH TEST PORT
33D #0061
1шт.
36
31HA-10170
CONNECTOR-BULK HOSE
1шт.
37
X500-310002
CONNECTOR-ORFS
1шт.
39
S015-080606
BOLT-HEX
20D #0050
2шт.
39
S015-080606
BOLT-HEX
25D #0218
2шт.
39
S015-080606
BOLT-HEX
30D #0276
2шт.
39
S015-080606
BOLT-HEX
33D #0029
2шт.
40
31HA-20281
CLAMP-HOSE
20D #0119
1шт.
40
31HA-20281
CLAMP-HOSE
20D #0120
2шт.
40
31HA-20281
CLAMP-HOSE
25D #0488
1шт.
40
31HA-20281
CLAMP-HOSE
25D #0489
2шт.
40
31HA-20281
CLAMP-HOSE
30D #0666
1шт.
40
31HA-20281
CLAMP-HOSE
30D #0667
2шт.
40
31HA-20281
CLAMP-HOSE
33D #0083
1шт.
40
31HA-20281
CLAMP-HOSE
33D #0084
2шт.
42
S611-012001
O-RING
5шт.
43
31HA-20150
ELBOW-90D,ORFS
1шт.
46
31HA-05000
CHECK VALVE ASSY-ORFS
1шт.
Выбрано товаров: 126
