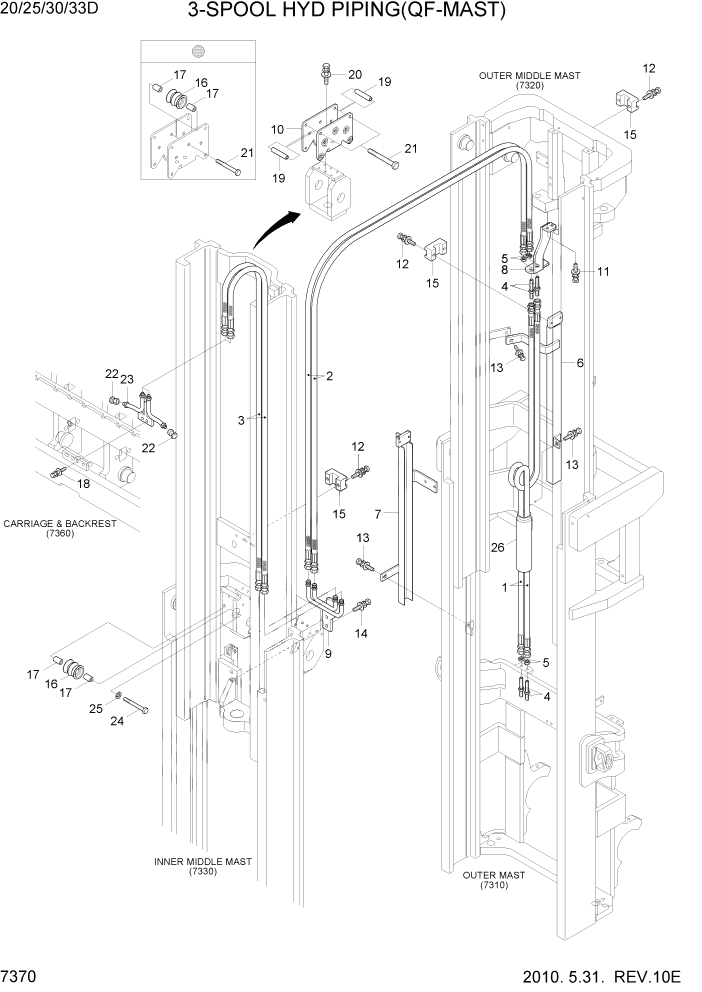

Запчасти Hyundai 20/25/30/33D-7 PAGE 7370 3-SPOOL HYD PIPING(QF-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P910-064063

HOSE ASSY-ORFS 0X0

QF970

2шт.

1

P910-064060

HOSE ASSY-ORFS 0X0

QF745

2шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

QF700

2шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

QF660

2шт.

1

P910-064051

HOSE ASSY-ORFS 0X0

QF610

2шт.

2

P910-064056

HOSE ASSY-ORFS 0X0

20/25/30,QF790

2шт.

2

P910-064057

HOSE ASSY-ORFS 0X0

33D,QF790

2шт.

2

P910-064053

HOSE ASSY-ORFS 0X0

20/25/30,QF745

2шт.

2

P910-064054

HOSE ASSY-ORFS 0X0

33D,QF745

2шт.

2

P910-064051

HOSE ASSY-ORFS 0X0

20D,QF700 #0257

2шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

20D,QF700 #0258

2шт.

2

P910-064051

HOSE ASSY-ORFS 0X0

25D,QF700 #1200

2шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

25D,QF700 #1201

2шт.

2

P910-064051

HOSE ASSY-ORFS 0X0

30D,QF700 #1835

2шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

30D,QF700 #1836

2шт.

2

P910-064052

HOSE ASSY-ORFS 0X0

33D,QF700 #0266

2шт.

2

P910-064051

HOSE ASSY-ORFS 0X0

33D,QF700 #0267

2шт.

2

P910-064049

HOSE ASSY-ORFS 0X0

20D,QF660 #0257

2шт.

2

P910-064048

HOSE ASSY-ORFS 0X0

20D,QF660 #0258

2шт.

2

P910-064049

HOSE ASSY-ORFS 0X0

25D,QF660 #1200

2шт.

2

P910-064048

HOSE ASSY-ORFS 0X0

25D,QF660 #1201

2шт.

2

P910-064049

HOSE ASSY-ORFS 0X0

30D,QF660 #1835

2шт.

2

P910-064048

HOSE ASSY-ORFS 0X0

30D,QF660 #1836

2шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

33D,QF660 #0266

2шт.

2

P910-064049

HOSE ASSY-ORFS 0X0

33D,QF660 #0267

2шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

20D,QF610 #0257

2шт.

2

P910-064044

HOSE ASSY-ORFS 0X0

20D,QF610 #0258

2шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

25D,QF610 #1200

2шт.

2

P910-064044

HOSE ASSY-ORFS 0X0

25D,QF610 #1201

2шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

30D,QF610 #1835

2шт.

2

P910-064044

HOSE ASSY-ORFS 0X0

30D,QF610 #1836

2шт.

2

P910-064046

HOSE ASSY-ORFS 0X0

33D,QF610 #0266

2шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

33D,QF610 #0267

2шт.

3

P910-064063

HOSE ASSY-ORFS 0X0

20D,QF790 #0257

2шт.

3

P910-064062

HOSE ASSY-ORFS 0X0

20D,QF790 #0258

2шт.

3

P910-064063

HOSE ASSY-ORFS 0X0

25D,QF790 #1200

2шт.

3

P910-064062

HOSE ASSY-ORFS 0X0

25D,QF790 #1201

2шт.

3

P910-064063

HOSE ASSY-ORFS 0X0

30D,QF790 #1835

2шт.

3

P910-064062

HOSE ASSY-ORFS 0X0

30D,QF790 #1836

2шт.

3

P910-064063

HOSE ASSY-ORFS 0X0

33D,QF790 #0266

2шт.

3

P910-064062

HOSE ASSY-ORFS 0X0

33D,QF790 #0267

2шт.

3

P910-064057

HOSE ASSY-ORFS 0X0

20D,QF745 #0257

2шт.

3

P910-064056

HOSE ASSY-ORFS 0X0

20D,QF745 #0258

2шт.

3

P910-064057

HOSE ASSY-ORFS 0X0

25D,QF745 #1200

2шт.

3

P910-064056

HOSE ASSY-ORFS 0X0

25D,QF745 #1201

2шт.

3

P910-064057

HOSE ASSY-ORFS 0X0

30D,QF745 #1835

2шт.

3

P910-064056

HOSE ASSY-ORFS 0X0

30D,QF745 #1836

2шт.

3

P910-064057

HOSE ASSY-ORFS 0X0

33D,QF745 #0266

2шт.

3

P910-064056

HOSE ASSY-ORFS 0X0

33D,QF745 #0267

2шт.

3

P910-064051

HOSE ASSY-ORFS 0X0

20D,QF700 #0257

2шт.

3

P910-064050

HOSE ASSY-ORFS 0X0

20D,QF700 #0258

2шт.

3

P910-064051

HOSE ASSY-ORFS 0X0

25D,QF700 #1200

2шт.

3

P910-064050

HOSE ASSY-ORFS 0X0

25D,QF700 #1201

2шт.

3

P910-064051

HOSE ASSY-ORFS 0X0

30D,QF700 #1835

2шт.

3

P910-064050

HOSE ASSY-ORFS 0X0

30D,QF700 #1836

2шт.

3

P910-064051

HOSE ASSY-ORFS 0X0

33D,QF700 #0266

2шт.

3

P910-064050

HOSE ASSY-ORFS 0X0

33D,QF700 #0267

2шт.

3

P910-064049

HOSE ASSY-ORFS 0X0

20D,QF660 #0257

2шт.

3

P910-064048

HOSE ASSY-ORFS 0X0

20D,QF660 #0258

2шт.

3

P910-064049

HOSE ASSY-ORFS 0X0

25D,QF660 #1200

2шт.

3

P910-064048

HOSE ASSY-ORFS 0X0

25D,QF660 #1201

2шт.

3

P910-064049

HOSE ASSY-ORFS 0X0

30D,QF660 #1835

2шт.

3

P910-064048

HOSE ASSY-ORFS 0X0

30D,QF660 #1836

2шт.

3

P910-064049

HOSE ASSY-ORFS 0X0

33D,QF660 #0266

2шт.

3

P910-064048

HOSE ASSY-ORFS 0X0

33D,QF660 #0267

2шт.

3

P910-064045

HOSE ASSY-ORFS 0X0

2шт.

4

31FG-80210

CONNECTOR

4шт.

5

31FG-80430

NUT-HEX

4шт.

6

3DHN-90240

GUARD WA-OUTER MIDDLE

1шт.

6

3DHN-90230

GUARD WA-OUTER MIDDLE

1шт.

6

3DHN-90220

GUARD WA-OUTER MIDDLE

1шт.

6

3DHN-90210

GUARD WA-OUTER MIDDLE

1шт.

6

3DHN-90200

GUARD WA-OUTER MIDDLE

1шт.

7

3DHN-90341

GUARD WA-OUTER

1шт.

7

3DHN-90331

GUARD WA-OUTER

1шт.

7

3DHN-90321

GUARD WA-OUTER

1шт.

7

3DHN-90311

GUARD WA-OUTER

1шт.

7

3DHN-90301

GUARD WA-OUTER

1шт.

8

3DHN-90400

BRACKET WA

1шт.

9

3DHN-90501

PIPE WA

1шт.

10

3DHN-90600

PLATE

1шт.

11

S035-082526

BOLT-W/WASHER

3шт.

12

S035-063526

BOLT-W/WASHER

10шт.

13

S035-082026

BOLT-W/WASHER

3шт.

14

S037-102526

BOLT-W/WASHER

2шт.

15

34FG-90260

CLAMP-HOSE

5шт.

16

34FY-90110

ROLLER-HOSE

10шт.

17

S731-007010

BUSHING-DU

20шт.

18

S037-104026

BOLT-W/WASHER

2шт.

19

34FY-90130

SPACER

2шт.

20

S035-081526

BOLT-W/WASHER

2шт.

21

S035-066526

BOLT-W/WASHER

7шт.

22

X710-100103

CAP-HYD,ORFS

2шт.

23

33HA-90401

PIPE WA

1шт.

24

S109-060806

BOLT-SOCKET

5шт.

25

S411-060006

WASHER-SPRING

5шт.

26

P753-120004

PROTECTOR COVER-HOSE

20D #0258

1шт.

26

P753-120004

PROTECTOR COVER-HOSE

25D #1201

1шт.

26

P753-120004

PROTECTOR COVER-HOSE

30D #1836

1шт.

26

P753-120004

PROTECTOR COVER-HOSE

33D #0267

1шт.
