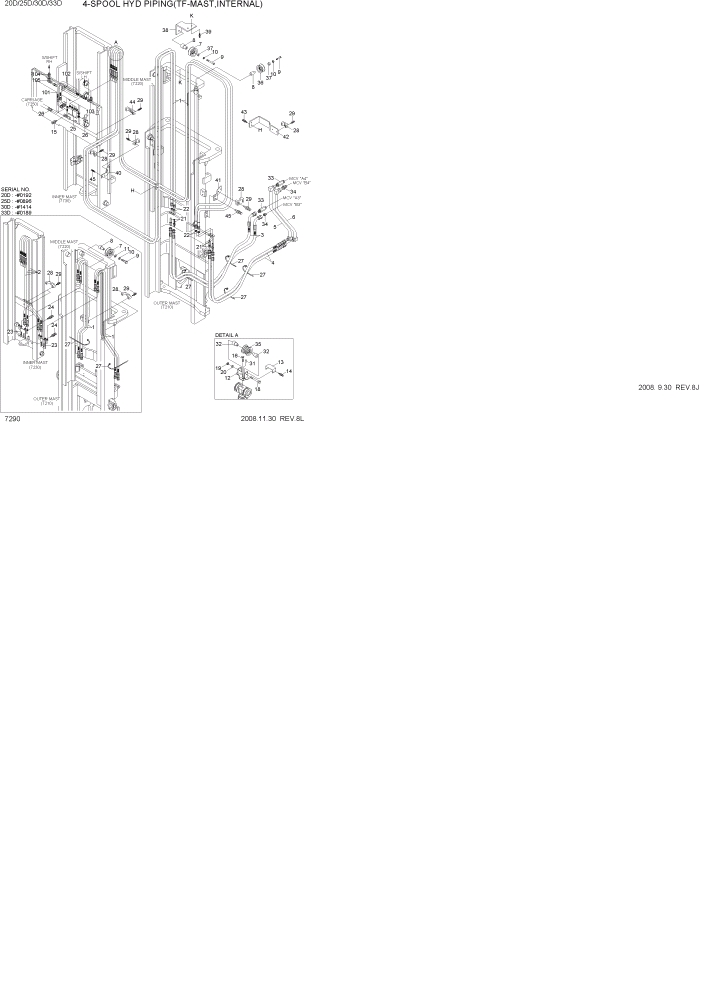

Запчасти Hyundai 20/25/30/33D-7 PAGE 7290 4-SPOOL HYD PIPING(TF-MAST,INTERNAL) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P910-064043

HOSE ASSY-ORFS 0X0

TF370,20D #0192

4шт.

1

P910-064087

HOSE ASSY-ORFS 0X0

TF370,20D #0193

4шт.

1

P910-064043

HOSE ASSY-ORFS 0X0

TF370,25D #0896

4шт.

1

P910-064087

HOSE ASSY-ORFS 0X0

TF370,25D #0897

4шт.

1

P910-064043

HOSE ASSY-ORFS 0X0

TF370,30D #1414

4шт.

1

P910-064087

HOSE ASSY-ORFS 0X0

TF370,30D #1415

4шт.

1

P910-064045

HOSE ASSY-ORFS 0X0

TF370,33D #0189

4шт.

1

P910-064089

HOSE ASSY-ORFS 0X0

TF370,33D #0190

4шт.

1

P910-064047

HOSE ASSY-ORFS 0X0

TF400,20D #0192

4шт.

1

P910-064093

HOSE ASSY-ORFS 0X0

TF400,20D #0193

4шт.

1

P910-064047

HOSE ASSY-ORFS 0X0

TF400,25D #0896

4шт.

1

P910-064093

HOSE ASSY-ORFS 0X0

TF400,25D #0897

4шт.

1

P910-064047

HOSE ASSY-ORFS 0X0

TF400,30D #1414

4шт.

1

P910-064093

HOSE ASSY-ORFS 0X0

TF400,30D #1415

4шт.

1

P910-064049

HOSE ASSY-ORFS 0X0

TF400,33D #0189

4шт.

1

P910-064095

HOSE ASSY-ORFS 0X0

TF400,33D #0190

4шт.

1

P910-064051

HOSE ASSY-ORFS 0X0

TF430,20D #0192

4шт.

1

P910-064099

HOSE ASSY-ORFS 0X0

TF430,20D #0193

4шт.

1

P910-064051

HOSE ASSY-ORFS 0X0

TF430,25D #0896

4шт.

1

P910-064099

HOSE ASSY-ORFS 0X0

TF430,25D #0897

4шт.

1

P910-064051

HOSE ASSY-ORFS 0X0

TF430,30D #1414

4шт.

1

P910-064099

HOSE ASSY-ORFS 0X0

TF430,30D #1415

4шт.

1

P910-064053

HOSE ASSY-ORFS 0X0

TF430,33D #0189

4шт.

1

P910-064101

HOSE ASSY-ORFS 0X0

TF430,33D #0190

4шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

TF450,20D #0192

4шт.

1

P910-064104

HOSE ASSY-ORFS 0X0

TF450,20D #0193

4шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

TF450,25D #0896

4шт.

1

P910-064104

HOSE ASSY-ORFS 0X0

TF450,25D #0897

4шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

TF450,30D #1414

4шт.

1

P910-064104

HOSE ASSY-ORFS 0X0

TF450,30D #1415

4шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

TF450,33D #0189

4шт.

1

P910-064106

HOSE ASSY-ORFS 0X0

TF450,33D #0190

4шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

TF470,20D #0192

4шт.

1

P910-064108

HOSE ASSY-ORFS 0X0

TF470,20D #0193

4шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

TF470,25D #0896

4шт.

1

P910-064108

HOSE ASSY-ORFS 0X0

TF470,25D #0897

4шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

TF470,30D #1414

4шт.

1

P910-064108

HOSE ASSY-ORFS 0X0

TF470,30D #1415

4шт.

1

P910-064059

HOSE ASSY-ORFS 0X0

TF470,33D #0189

4шт.

1

P910-064110

HOSE ASSY-ORFS 0X0

TF470,33D #0190

4шт.

1

P910-064061

HOSE ASSY-ORFS 0X0

TF500,20D #0192

4шт.

1

P910-064114

HOSE ASSY-ORFS 0X0

TF500,20D #0193

4шт.

1

P910-064061

HOSE ASSY-ORFS 0X0

TF500,25D #0896

4шт.

1

P910-064114

HOSE ASSY-ORFS 0X0

TF500,25D #0897

4шт.

1

P910-064061

HOSE ASSY-ORFS 0X0

TF500,30D #1414

4шт.

1

P910-064114

HOSE ASSY-ORFS 0X0

TF500,30D #1415

4шт.

1

P910-064063

HOSE ASSY-ORFS 0X0

TF500,33D #0189

4шт.

1

P910-064116

HOSE ASSY-ORFS 0X0

TF500,33D #0190

4шт.

1

P910-064069

HOSE ASSY-ORFS 0X0

TF550,20D #0192

4шт.

1

P910-064125

HOSE ASSY-ORFS 0X0

TF550,20D #0193

4шт.

1

P910-064069

HOSE ASSY-ORFS 0X0

TF550,25D #0896

4шт.

1

P910-064125

HOSE ASSY-ORFS 0X0

TF550,25D #0897

4шт.

1

P910-064069

HOSE ASSY-ORFS 0X0

TF550,30D #1414

4шт.

1

P910-064125

HOSE ASSY-ORFS 0X0

TF550,30D #1415

4шт.

1

P910-064071

HOSE ASSY-ORFS 0X0

TF550,33D #0189

4шт.

1

P910-064127

HOSE ASSY-ORFS 0X0

TF550,33D #0190

4шт.

1

P910-064077

HOSE ASSY-ORFS 0X0

TF600,20D #0192

4шт.

1

P910-064137

HOSE ASSY-ORFS 0X0

TF600,20D #0193

4шт.

1

P910-064077

HOSE ASSY-ORFS 0X0

TF600,25D #0896

4шт.

1

P910-064137

HOSE ASSY-ORFS 0X0

TF600,25D #0897

4шт.

1

P910-064077

HOSE ASSY-ORFS 0X0

TF600,30D #1414

4шт.

1

P910-064137

HOSE ASSY-ORFS 0X0

TF600,30D #1415

4шт.

1

P910-064079

HOSE ASSY-ORFS 0X0

TF600,33D #0189

4шт.

1

P910-064139

HOSE ASSY-ORFS 0X0

TF600,33D #0190

4шт.

1

P910-064084

HOSE ASSY-ORFS 0X0

TF650,20D #0192

4шт.

1

P910-064084

HOSE ASSY-ORFS 0X0

TF650,25D #0896

4шт.

1

P910-064084

HOSE ASSY-ORFS 0X0

TF650,30D #1414

4шт.

1

P910-064086

HOSE ASSY-ORFS 0X0

TF650,33D #0189

4шт.

1

P910-064092

HOSE ASSY-ORFS 0X0

TF700,20D #0192

4шт.

1

P910-064092

HOSE ASSY-ORFS 0X0

TF700,25D #0896

4шт.

1

P910-064092

HOSE ASSY-ORFS 0X0

TF700,30D #1414

4шт.

1

P910-064094

HOSE ASSY-ORFS 0X0

TF700,33D #0189

4шт.

2

P910-064038

HOSE ASSY-ORFS 0X0

TF370,20D #0192

4шт.

2

P910-064038

HOSE ASSY-ORFS 0X0

TF370,25D #0896

4шт.

2

P910-064038

HOSE ASSY-ORFS 0X0

TF370,30D #1414

4шт.

2

P910-064038

HOSE ASSY-ORFS 0X0

TF370,33D #0189

4шт.

2

P910-064040

HOSE ASSY-ORFS 0X0

TF400,20D #0192

4шт.

2

P910-064040

HOSE ASSY-ORFS 0X0

TF400,25D #0896

4шт.

2

P910-064040

HOSE ASSY-ORFS 0X0

TF400,30D #1414

4шт.

2

P910-064040

HOSE ASSY-ORFS 0X0

TF400,33D #0189

4шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF430,20D #0192

4шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF430,25D #0896

4шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF430,30D #1414

4шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF430,33D #0189

4шт.

2

P910-064043

HOSE ASSY-ORFS 0X0

TF450,20D #0192

4шт.

2

P910-064043

HOSE ASSY-ORFS 0X0

TF450,25D #0896

4шт.

2

P910-064043

HOSE ASSY-ORFS 0X0

TF450,30D #1414

4шт.

2

P910-064043

HOSE ASSY-ORFS 0X0

TF450,33D #0189

4шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

TF470,20D #0192

4шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

TF470,25D #0896

4шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

TF470,30D #1414

4шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

TF470,33D #0189

4шт.

2

P910-064047

HOSE ASSY-ORFS 0X0

TF500,20D #0192

4шт.

2

P910-064047

HOSE ASSY-ORFS 0X0

TF500,25D #0896

4шт.

2

P910-064047

HOSE ASSY-ORFS 0X0

TF500,30D #1414

4шт.

2

P910-064047

HOSE ASSY-ORFS 0X0

TF500,33D #0189

4шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

TF550,20D #0192

4шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

TF550,25D #0896

4шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

TF550,30D #1414

4шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

TF550,33D #0189

4шт.

2

P910-064054

HOSE ASSY-ORFS 0X0

TF600,20D #0192

4шт.

2

P910-064054

HOSE ASSY-ORFS 0X0

TF600,25D #0896

4шт.

2

P910-064054

HOSE ASSY-ORFS 0X0

TF600,30D #1414

4шт.

2

P910-064054

HOSE ASSY-ORFS 0X0

TF600,33D #0189

4шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

TF650,20D #0192

4шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

TF650,25D #0896

4шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

TF650,30D #1414

4шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

TF650,33D #0189

4шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

TF700,20D #0192

4шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

TF700,25D #0896

4шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

TF700,30D #1414

4шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

TF700,33D #0189

4шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

TF700

4шт.

3

P933-064027

HOSE ASSY-ORFS 0X90

2шт.

3

P933-064027

HOSE ASSY-ORFS 0X90

20D #0194

2шт.

3

P933-064032

HOSE ASSY-ORFS 0X90

20D #0195

2шт.

3

P933-064027

HOSE ASSY-ORFS 0X90

25D #0939

2шт.

3

P933-064032

HOSE ASSY-ORFS 0X90

25D #0940

2шт.

3

P933-064027

HOSE ASSY-ORFS 0X90

30D #1417

2шт.

3

P933-064032

HOSE ASSY-ORFS 0X90

30D #1418

2шт.

3

P933-064027

HOSE ASSY-ORFS 0X90

33D #0199

2шт.

3

P933-064032

HOSE ASSY-ORFS 0X90

33D #0200

2шт.

4

P913-064025

HOSE ASSY-ORFS 0X0

2шт.

4

P913-064025

HOSE ASSY-ORFS 0X0

20D #0194

2шт.

4

P913-064022

HOSE ASSY-ORFS 0X0

20D #0195

2шт.

4

P913-064025

HOSE ASSY-ORFS 0X0

25D #0939

2шт.

4

P913-064022

HOSE ASSY-ORFS 0X0

25D #0940

2шт.

4

P913-064025

HOSE ASSY-ORFS 0X0

30D #1417

2шт.

4

P913-064022

HOSE ASSY-ORFS 0X0

30D #1418

2шт.

4

P913-064025

HOSE ASSY-ORFS 0X0

33D #0199

2шт.

4

P913-064022

HOSE ASSY-ORFS 0X0

33D #0200

2шт.

5

33HA-90500

PIPE WA

1шт.

6

33HA-90600

PIPE WA

1шт.

7

34FG-90201

PULLEY-HOSE

20D #0192

2шт.

7

34FG-90201

PULLEY-HOSE

20D #0193

1шт.

7

34FG-90201

PULLEY-HOSE

25D #0896

2шт.

7

34FG-90201

PULLEY-HOSE

25D #0897

1шт.

7

34FG-90201

PULLEY-HOSE

30D #1414

2шт.

7

34FG-90201

PULLEY-HOSE

30D #1415

1шт.

7

34FG-90201

PULLEY-HOSE

33D #0189

2шт.

7

34FG-90201

PULLEY-HOSE

33D #0190

1шт.

8

31FV-90130

PIN-HOSE PULLEY

2шт.

9

S017-120606

BOLT-HEX

20D #0192

2шт.

9

S017-120756

BOLT-HEX

20D #0193

2шт.

9

S017-120606

BOLT-HEX

25D #0896

2шт.

9

S017-120756

BOLT-HEX

25D #0897

2шт.

9

S017-120606

BOLT-HEX

30D #1414

2шт.

9

S017-120756

BOLT-HEX

30D #1415

2шт.

9

S017-120606

BOLT-HEX

33D #0189

2шт.

9

S017-120756

BOLT-HEX

33D #0190

2шт.

10

S411-120006

WASHER-SPRING

3шт.

11

S441-120006

WASHER-HARDENED

20D #0192

1шт.

11

S441-120006

WASHER-HARDENED

25D #0896

1шт.

11

S441-120006

WASHER-HARDENED

30D #1414

1шт.

11

S441-120006

WASHER-HARDENED

33D #0189

1шт.

12

33HA-90800

BRACKET WA

20D #0024

1шт.

12

33HA-90801

BRACKET WA-PULLEY

20D #0025

1шт.

12

33HA-90800

BRACKET WA

25D #0107

1шт.

12

33HA-90801

BRACKET WA-PULLEY

25D #0108

1шт.

12

33HA-90800

BRACKET WA

30D #0118

1шт.

12

33HA-90801

BRACKET WA-PULLEY

30D #0119

1шт.

12

33HA-90800

BRACKET WA

33D #0015

1шт.

12

33HA-90801

BRACKET WA-PULLEY

33D #0016

1шт.

13

34FG-90270

COVER

1шт.

14

S035-081526

BOLT-W/WASHER

4шт.

15

S037-102526

BOLT-W/WASHER

4шт.

16

S017-120506

BOLT-HEX

1шт.

17

S411-120006

WASHER-SPRING

1шт.

18

S017-101406

BOLT-HEX

1шт.

19

S275-100006

NUT-SELF LOCKING

1шт.

20

S403-102006

WASHER-PLAIN

1шт.

21

31FG-80210

CONNECTOR

4шт.

22

31FG-80430

NUT-HEX

4шт.

23

34FG-90210

PIPE WA

2шт.

23

34FG-90210

PIPE WA

20D #0192

2шт.

23

34FG-90210

PIPE WA

25D #0896

2шт.

23

34FG-90210

PIPE WA

30D #1414

2шт.

23

34FG-90210

PIPE WA

33D #0189

2шт.

24

S037-102026

BOLT-W/WASHER

4шт.

24

S037-102026

BOLT-W/WASHER

20D #0192

4шт.

24

S037-102026

BOLT-W/WASHER

25D #0896

4шт.

24

S037-102026

BOLT-W/WASHER

30D #1414

4шт.

24

S037-102026

BOLT-W/WASHER

33D #0189

4шт.

25

34FK-90401

BLOCK WA

2шт.

26

X710-100103

CAP

4шт.

27

S552-102370

CLAMP-BAND

6шт.

27

S552-102370

CLAMP-BAND

6шт.

28

34FG-90260

CLAMP-HOSE

4шт.

29

S035-063526

BOLT-W/WASHER

8шт.

29

S035-063526

BOLT-W/WASHER

20D #0192

8шт.

29

S035-063526

BOLT-W/WASHER

20D #0193

10шт.

29

S035-063526

BOLT-W/WASHER

25D #0896

8шт.

29

S035-063526

BOLT-W/WASHER

25D #0897

10шт.

29

S035-063526

BOLT-W/WASHER

30D #1414

8шт.

29

S035-063526

BOLT-W/WASHER

30D #1415

10шт.

29

S035-063526

BOLT-W/WASHER

33D #0189

8шт.

29

S035-063526

BOLT-W/WASHER

33D #0190

10шт.

31

S471-800162

PIN-SPRING

1шт.

32

34FG-90351

PIN-HOSE PULLEY

2шт.

33

31FQ-10070

CONNECTOR

2шт.

34

31N5-30050

CONNECTOR

2шт.

35

33HD-90370

PULLEY-HOSE

1шт.

36

33HN-80100

PULLEY ASSY-HOSE

20D #0193

1шт.

36

33HN-80100

PULLEY ASSY-HOSE

25D #0897

1шт.

36

33HN-80100

PULLEY ASSY-HOSE

30D #1415

1шт.

36

33HN-80100

PULLEY ASSY-HOSE

33D #0190

1шт.

37

33HN-90600

SPACER

20D #0193

2шт.

37

33HN-90600

SPACER

25D #0897

2шт.

37

33HN-90600

SPACER

30D #1415

2шт.

37

33HN-90600

SPACER

33D #0190

2шт.

38

33HN-90311

BRACKET-PULLEY

20D #0193

1шт.

38

33HN-90311

BRACKET-PULLEY

25D #0897

1шт.

38

33HN-90311

BRACKET-PULLEY

30D #1415

1шт.

38

33HN-90311

BRACKET-PULLEY

33D #0190

1шт.

39

S035-083536

BOLT-W/WASHER

20D #0193

2шт.

39

S035-083536

BOLT-W/WASHER

25D #0897

2шт.

39

S035-083536

BOLT-W/WASHER

30D #1415

2шт.

39

S035-083536

BOLT-W/WASHER

33D #0190

2шт.

40

33HN-90901

BRACKET

20D #0193

1шт.

40

33HN-90901

BRACKET

25D #0897

1шт.

40

33HN-90901

BRACKET

30D #1415

1шт.

40

33HN-90901

BRACKET

33D #0190

1шт.

41

33HN-90700

BRACKET

20D #0193

1шт.

41

33HN-90700

BRACKET

25D #0897

1шт.

41

33HN-90700

BRACKET

30D #1415

1шт.

41

33HN-90700

BRACKET

33D #0190

1шт.

42

33HN-90811

BRACKET

20D #0193

1шт.

42

33HN-90811

BRACKET

25D #0897

1шт.

42

33HN-90811

BRACKET

30D #1415

1шт.

42

33HN-90811

BRACKET

33D #0190

1шт.

43

S035-083036

BOLT-W/WASHER

20D #0193

2шт.

43

S035-083036

BOLT-W/WASHER

25D #0897

2шт.

43

S035-083036

BOLT-W/WASHER

30D #1415

2шт.

43

S035-083036

BOLT-W/WASHER

33D #0190

2шт.

44

34FG-90460

CLAMP-HOSE

20D #0193

1шт.

44

34FG-90460

CLAMP-HOSE

25D #0897

1шт.

44

34FG-90460

CLAMP-HOSE

30D #1415

1шт.

44

34FG-90460

CLAMP-HOSE

33D #0190

1шт.

45

S035-082516

BOLT-W/WASHER

20D #0193

4шт.

45

S035-082516

BOLT-W/WASHER

25D #0897

4шт.

45

S035-082516

BOLT-W/WASHER

30D #1415

4шт.

45

S035-082516

BOLT-W/WASHER

33D #0190

4шт.

101

P933-064007

HOSE ASSY-ORFS 0X90

20/25D

1шт.

101

P933-064006

HOSE ASSY-ORFS 0X90

30/33D

1шт.

102

P933-064011

HOSE ASSY-ORFS 0X90

1шт.

103

31FG-80400

ELBOW-90

1шт.

104

X500-310002

CONNECTOR-ORFS

1шт.

105

X850-525200

ELBOW-90,SWIVEL,ORFS

1шт.
