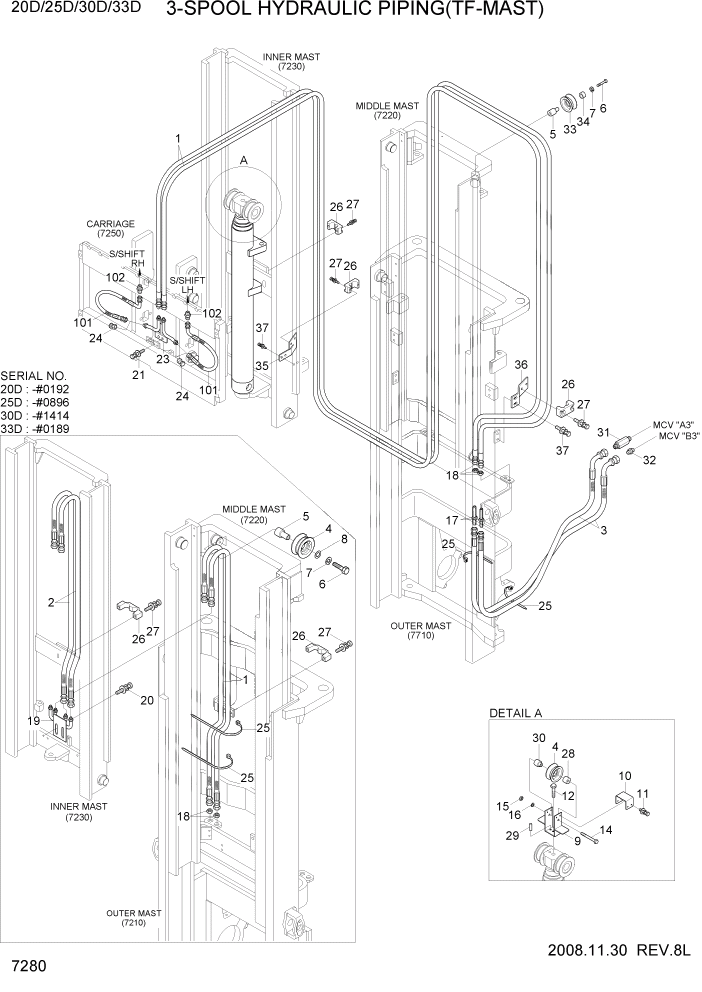

Запчасти Hyundai 20/25/30/33D-7 PAGE 7280 3-SPOOL HYDRAULIC PIPING(TF-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ
№
Артикул
Название
Примечание
Количество
1
P910-064043
HOSE ASSY-ORFS 0X0
TF370,20D #0192
2шт.
1
P910-064087
HOSE ASSY-ORFS 0X0
TF370,20D #0193
2шт.
1
P910-064043
HOSE ASSY-ORFS 0X0
TF370,25D #0896
2шт.
1
P910-064087
HOSE ASSY-ORFS 0X0
TF370,25D #0897
2шт.
1
P910-064043
HOSE ASSY-ORFS 0X0
TF370,30D #1414
2шт.
1
P910-064087
HOSE ASSY-ORFS 0X0
TF370,30D #1415
2шт.
1
P910-064045
HOSE ASSY-ORFS 0X0
TF370,33D #0189
2шт.
1
P910-064089
HOSE ASSY-ORFS 0X0
TF370,33D #0190
2шт.
1
P910-064047
HOSE ASSY-ORFS 0X0
TF400,20D #0192
2шт.
1
P910-064093
HOSE ASSY-ORFS 0X0
TF400,20D #0193
2шт.
1
P910-064047
HOSE ASSY-ORFS 0X0
TF400,25D #0896
2шт.
1
P910-064093
HOSE ASSY-ORFS 0X0
TF400,25D #0897
2шт.
1
P910-064047
HOSE ASSY-ORFS 0X0
TF400,30D #1414
2шт.
1
P910-064093
HOSE ASSY-ORFS 0X0
TF400,30D #1415
2шт.
1
P910-064049
HOSE ASSY-ORFS 0X0
TF400,33D #0189
2шт.
1
P910-064095
HOSE ASSY-ORFS 0X0
TF400,33D #0190
2шт.
1
P910-064051
HOSE ASSY-ORFS 0X0
TF430,20D #0192
2шт.
1
P910-064099
HOSE ASSY-ORFS 0X0
TF430,20D #0193
2шт.
1
P910-064051
HOSE ASSY-ORFS 0X0
TF430,25D #0896
2шт.
1
P910-064099
HOSE ASSY-ORFS 0X0
TF430,25D #0897
2шт.
1
P910-064051
HOSE ASSY-ORFS 0X0
TF430,30D #1414
2шт.
1
P910-064099
HOSE ASSY-ORFS 0X0
TF430,30D #1415
2шт.
1
P910-064053
HOSE ASSY-ORFS 0X0
TF430,33D #0189
2шт.
1
P910-064101
HOSE ASSY-ORFS 0X0
TF430,33D #0190
2шт.
1
P910-064055
HOSE ASSY-ORFS 0X0
TF450,20D #0192
2шт.
1
P910-064104
HOSE ASSY-ORFS 0X0
TF450,20D #0193
2шт.
1
P910-064055
HOSE ASSY-ORFS 0X0
TF450,25D #0896
2шт.
1
P910-064104
HOSE ASSY-ORFS 0X0
TF450,25D #0897
2шт.
1
P910-064055
HOSE ASSY-ORFS 0X0
TF450,30D #1414
2шт.
1
P910-064104
HOSE ASSY-ORFS 0X0
TF450,30D #1415
2шт.
1
P910-064057
HOSE ASSY-ORFS 0X0
TF450,33D #0189
2шт.
1
P910-064106
HOSE ASSY-ORFS 0X0
TF450,33D #0190
2шт.
1
P910-064057
HOSE ASSY-ORFS 0X0
TF470,20D #0192
2шт.
1
P910-064108
HOSE ASSY-ORFS 0X0
TF470,20D #0193
2шт.
1
P910-064057
HOSE ASSY-ORFS 0X0
TF470,25D #0896
2шт.
1
P910-064108
HOSE ASSY-ORFS 0X0
TF470,25D #0897
2шт.
1
P910-064057
HOSE ASSY-ORFS 0X0
TF470,30D #1414
2шт.
1
P910-064108
HOSE ASSY-ORFS 0X0
TF470,30D #1415
2шт.
1
P910-064059
HOSE ASSY-ORFS 0X0
TF470,33D #0189
2шт.
1
P910-064110
HOSE ASSY-ORFS 0X0
TF470,33D #0190
2шт.
1
P910-064061
HOSE ASSY-ORFS 0X0
TF500,20D #0192
2шт.
1
P910-064114
HOSE ASSY-ORFS 0X0
TF500,20D #0193
2шт.
1
P910-064061
HOSE ASSY-ORFS 0X0
TF500,25D #0896
2шт.
1
P910-064114
HOSE ASSY-ORFS 0X0
TF500,25D #0897
2шт.
1
P910-064061
HOSE ASSY-ORFS 0X0
TF500,30D #1414
2шт.
1
P910-064114
HOSE ASSY-ORFS 0X0
TF500,30D #1415
2шт.
1
P910-064063
HOSE ASSY-ORFS 0X0
TF500,33D #0189
2шт.
1
P910-064116
HOSE ASSY-ORFS 0X0
TF500,33D #0190
2шт.
1
P910-064069
HOSE ASSY-ORFS 0X0
TF550,20D #0192
2шт.
1
P910-064125
HOSE ASSY-ORFS 0X0
TF550,20D #0193
2шт.
1
P910-064069
HOSE ASSY-ORFS 0X0
TF550,25D #0896
2шт.
1
P910-064125
HOSE ASSY-ORFS 0X0
TF550,25D #0897
2шт.
1
P910-064069
HOSE ASSY-ORFS 0X0
TF550,30D #1414
2шт.
1
P910-064125
HOSE ASSY-ORFS 0X0
TF550,30D #1415
2шт.
1
P910-064071
HOSE ASSY-ORFS 0X0
TF550,33D #0189
2шт.
1
P910-064127
HOSE ASSY-ORFS 0X0
TF550,33D #0190
2шт.
1
P910-064077
HOSE ASSY-ORFS 0X0
TF600,20D #0192
2шт.
1
P910-064137
HOSE ASSY-ORFS 0X0
TF600,20D #0193
2шт.
1
P910-064077
HOSE ASSY-ORFS 0X0
TF600,25D #0896
2шт.
1
P910-064137
HOSE ASSY-ORFS 0X0
TF600,25D #0897
2шт.
1
P910-064077
HOSE ASSY-ORFS 0X0
TF600,30D #1414
2шт.
1
P910-064137
HOSE ASSY-ORFS 0X0
TF600,30D #1415
2шт.
1
P910-064139
HOSE ASSY-ORFS 0X0
TF600,33D #0190
2шт.
1
P910-064084
HOSE ASSY-ORFS 0X0
TF650,20D #0192
2шт.
1
P910-064084
HOSE ASSY-ORFS 0X0
TF650,25D #0896
2шт.
1
P910-064084
HOSE ASSY-ORFS 0X0
TF650,30D #1414
2шт.
1
P910-064086
HOSE ASSY-ORFS 0X0
TF650,33D #0189
2шт.
1
P910-064092
HOSE ASSY-ORFS 0X0
TF700,20D #0192
2шт.
1
P910-064092
HOSE ASSY-ORFS 0X0
TF700,25D #0896
2шт.
1
P910-064092
HOSE ASSY-ORFS 0X0
TF700,30D #1414
2шт.
1
P910-064094
HOSE ASSY-ORFS 0X0
TF700,33D #0189
2шт.
2
P910-064038
HOSE ASSY-ORFS 0X0
TF370,20D #0192
2шт.
2
P910-064038
HOSE ASSY-ORFS 0X0
TF370,25D #0896
2шт.
2
P910-064038
HOSE ASSY-ORFS 0X0
TF370,30D #1414
2шт.
2
P910-064038
HOSE ASSY-ORFS 0X0
TF370,33D #0189
2шт.
2
P910-064040
HOSE ASSY-ORFS 0X0
TF400,20D #0192
2шт.
2
P910-064040
HOSE ASSY-ORFS 0X0
TF400,25D #0896
2шт.
2
P910-064040
HOSE ASSY-ORFS 0X0
TF400,30D #1414
2шт.
2
P910-064040
HOSE ASSY-ORFS 0X0
TF400,33D #0189
2шт.
2
P910-064042
HOSE ASSY-ORFS 0X0
TF430,20D #0192
2шт.
2
P910-064042
HOSE ASSY-ORFS 0X0
TF430,25D #0896
2шт.
2
P910-064042
HOSE ASSY-ORFS 0X0
TF430,30D #1414
2шт.
2
P910-064042
HOSE ASSY-ORFS 0X0
TF430,33D #0189
2шт.
2
P910-064043
HOSE ASSY-ORFS 0X0
TF450,20D #0192
2шт.
2
P910-064043
HOSE ASSY-ORFS 0X0
TF450,25D #0896
2шт.
2
P910-064043
HOSE ASSY-ORFS 0X0
TF450,30D #1414
2шт.
2
P910-064043
HOSE ASSY-ORFS 0X0
TF450,33D #0189
2шт.
2
P910-064045
HOSE ASSY-ORFS 0X0
TF470,20D #0192
2шт.
2
P910-064045
HOSE ASSY-ORFS 0X0
TF470,25D #0896
2шт.
2
P910-064045
HOSE ASSY-ORFS 0X0
TF470,30D #1414
2шт.
2
P910-064045
HOSE ASSY-ORFS 0X0
TF470,33D #0189
2шт.
2
P910-064047
HOSE ASSY-ORFS 0X0
TF500,20D #0192
2шт.
2
P910-064047
HOSE ASSY-ORFS 0X0
TF500,25D #0896
2шт.
2
P910-064047
HOSE ASSY-ORFS 0X0
TF500,30D #1414
2шт.
2
P910-064047
HOSE ASSY-ORFS 0X0
TF500,33D #0189
2шт.
2
P910-064054
HOSE ASSY-ORFS 0X0
TF600,20D #0192
2шт.
2
P910-064054
HOSE ASSY-ORFS 0X0
TF600,25D #0896
2шт.
2
P910-064054
HOSE ASSY-ORFS 0X0
TF600,30D #1414
2шт.
2
P910-064054
HOSE ASSY-ORFS 0X0
TF600,33D #0189
2шт.
2
P910-064058
HOSE ASSY-ORFS 0X0
TF650,20D #0192
2шт.
2
P910-064058
HOSE ASSY-ORFS 0X0
TF650,25D #0896
2шт.
2
P910-064058
HOSE ASSY-ORFS 0X0
TF650,30D #1414
2шт.
2
P910-064058
HOSE ASSY-ORFS 0X0
TF650,33D #0189
2шт.
2
P910-064062
HOSE ASSY-ORFS 0X0
TF700,20D #0192
2шт.
2
P910-064062
HOSE ASSY-ORFS 0X0
TF700,25D #0896
2шт.
2
P910-064062
HOSE ASSY-ORFS 0X0
TF700,30D #1414
2шт.
2
P910-064062
HOSE ASSY-ORFS 0X0
TF700,33D #0189
2шт.
3
P933-064027
HOSE ASSY-ORFS 0X90
2шт.
3
P933-064027
HOSE ASSY-ORFS 0X90
20D #0194
2шт.
3
P933-064032
HOSE ASSY-ORFS 0X90
20D #0195
2шт.
3
P933-064027
HOSE ASSY-ORFS 0X90
25D #0939
2шт.
3
P933-064032
HOSE ASSY-ORFS 0X90
25D #0940
2шт.
3
P933-064027
HOSE ASSY-ORFS 0X90
30D #1417
2шт.
3
P933-064032
HOSE ASSY-ORFS 0X90
30D #1418
2шт.
3
P933-064027
HOSE ASSY-ORFS 0X90
33D #0199
2шт.
3
P933-064032
HOSE ASSY-ORFS 0X90
33D #0200
2шт.
4
34FG-90201
PULLEY-HOSE
1шт.
6
S017-120606
BOLT-HEX
20D #0192
1шт.
6
S017-120606
BOLT-HEX
25D #0896
1шт.
6
S017-120606
BOLT-HEX
30D #1414
1шт.
6
S017-120606
BOLT-HEX
30D #0189
1шт.
9
33HA-90700
BRACKET WA
20D #0024
1шт.
9
33HA-90701
BRACKET WA-PULLEY
20D #0025
1шт.
9
33HA-90700
BRACKET WA
25D #0107
1шт.
9
33HA-90701
BRACKET WA-PULLEY
25D #0108
1шт.
9
33HA-90700
BRACKET WA
30D #0118
1шт.
9
33HA-90701
BRACKET WA-PULLEY
30D #0119
1шт.
9
33HA-90700
BRACKET WA
33D #0015
1шт.
9
33HA-90701
BRACKET WA-PULLEY
33D #0016
1шт.
10
33HA-90750
COVER
20D #0024
1шт.
10
33HA-90751
COVER
20D #0025
1шт.
10
33HA-90750
COVER
25D #0107
1шт.
10
33HA-90751
COVER
25D #0108
1шт.
10
33HA-90750
COVER
30D #0118
1шт.
10
33HA-90751
COVER
30D #0119
1шт.
10
33HA-90750
COVER
33D #0015
1шт.
10
33HA-90751
COVER
33D #0016
1шт.
14
S017-101006
BOLT-HEX
1шт.
15
S275-100006
NUT-SELF LOCKING
1шт.
19
34FG-90210
PIPE WA
20D #0192
1шт.
19
34FG-90210
PIPE WA
25D #0896
1шт.
19
34FG-90210
PIPE WA
30D #1414
1шт.
19
34FG-90210
PIPE WA
33D #0189
1шт.
23
33HA-90401
PIPE WA
1шт.
24
X710-100103
CAP
2шт.
25
S552-102370
CLAMP-BAND
3шт.
27
S035-063526
BOLT-W/WASHER
20D #0192
4шт.
27
S035-063526
BOLT-W/WASHER
20D #0193
6шт.
27
S035-063526
BOLT-W/WASHER
25D #0896
4шт.
27
S035-063526
BOLT-W/WASHER
25D #0897
6шт.
27
S035-063526
BOLT-W/WASHER
30D #1414
4шт.
27
S035-063526
BOLT-W/WASHER
30D #1415
6шт.
27
S035-063526
BOLT-W/WASHER
33D #0189
4шт.
27
S035-063526
BOLT-W/WASHER
33D #0190
6шт.
28
34FG-90360
SPACER
20D #0024
1шт.
28
34FG-90330
SPACER
20D #0025
1шт.
28
34FG-90360
SPACER
25D #0107
1шт.
28
34FG-90330
SPACER
25D #0108
1шт.
28
34FG-90360
SPACER
30D #0118
1шт.
28
34FG-90330
SPACER
30D #0119
1шт.
28
34FG-90360
SPACER
33D #0015
1шт.
28
34FG-90330
SPACER
33D #0016
1шт.
30
34FG-90250
PIN-HOSE PULLEY
20D #0024
1шт.
30
34FG-90370
PIN-HOSE PULLEY
20D #0025
1шт.
30
34FG-90250
PIN-HOSE PULLEY
25D #0107
1шт.
30
34FG-90370
PIN-HOSE PULLEY
25D #0108
1шт.
30
34FG-90250
PIN-HOSE PULLEY
30D #0118
1шт.
30
34FG-90370
PIN-HOSE PULLEY
30D #0119
1шт.
30
34FG-90250
PIN-HOSE PULLEY
33D #0015
1шт.
30
34FG-90370
PIN-HOSE PULLEY
33D #0016
1шт.
31
31FQ-10070
CONNECTOR
1шт.
32
31N5-30050
CONNECTOR
1шт.
33
33HN-80100
PULLEY ASSY-HOSE
20D #0193
1шт.
33
33HN-80100
PULLEY ASSY-HOSE
25D #0897
1шт.
33
33HN-80100
PULLEY ASSY-HOSE
30D #1415
1шт.
33
33HN-80100
PULLEY ASSY-HOSE
33D #0190
1шт.
35
33HN-90901
BRACKET
20D #0193
1шт.
35
33HN-90901
BRACKET
25D #0897
1шт.
35
33HN-90901
BRACKET
30D #1415
1шт.
35
33HN-90901
BRACKET
33D #0190
1шт.
36
33HN-90700
BRACKET
20D #0193
1шт.
36
33HN-90700
BRACKET
25D #0897
1шт.
36
33HN-90700
BRACKET
30D #1415
1шт.
36
33HN-90700
BRACKET
33D #0190
1шт.
101
P933-064007
HOSE ASSY-ORFS 0X90
20/25D, S/SHIFT
2шт.
101
P933-064007
HOSE ASSY-ORFS 0X90
30D, S/SHIFT #0339
2шт.
101
P933-064009
HOSE ASSY-ORFS 0X90
30D, S/SHIFT #0340
2шт.
101
P933-064007
HOSE ASSY-ORFS 0X90
33D, S/SHIFT #0047
2шт.
101
P933-064009
HOSE ASSY-ORFS 0X90
33D, S/SHIFT #0048
2шт.
102
X500-310002
CONNECTOR-ORFS
SIDE SHIFT
2шт.
Выбрано товаров: 233
