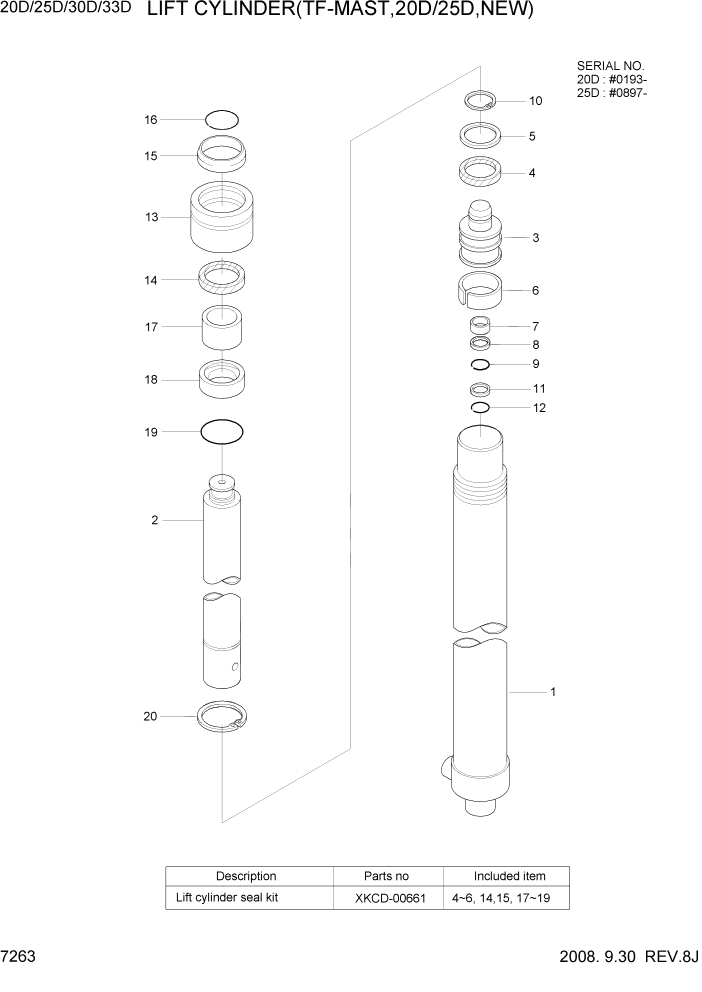

Запчасти Hyundai 20/25/30/33D-7 PAGE 7263 LIFT CYLINDER(TF-MAST,20D/25D,NEW) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

33HA-07001

LIFT CYLINDER ASSY

TF370,20D,7260 #0193

1шт.

*

33HA-07001

LIFT CYLINDER ASSY

TF370,25D,7260 #0897

1шт.

*

33HA-07011

LIFT CYLINDER ASSY

TF400,20D,7260 #0193

1шт.

*

33HA-07011

LIFT CYLINDER ASSY

TF400,25D,7260 #0897

1шт.

*

33HA-07021

LIFT CYLINDER ASSY

TF430,20D,7260 #0193

1шт.

*

33HA-07021

LIFT CYLINDER ASSY

TF430,25D,7260 #0897

1шт.

*

33HA-07031

LIFT CYLINDER ASSY

TF450,20D,7260 #0193

1шт.

*

33HA-07031

LIFT CYLINDER ASSY

TF450,25D,7260 #0897

1шт.

*

33HA-07041

LIFT CYLINDER ASSY

TF470,20D,7260 #0193

1шт.

*

33HA-07041

LIFT CYLINDER ASSY

TF470,25D,7260 #0897

1шт.

*

33HA-07051

LIFT CYLINDER ASSY

TF500,20D,7260 #0193

1шт.

*

33HA-07051

LIFT CYLINDER ASSY

TF500,25D,7260 #0897

1шт.

*

33HA-07061

LIFT CYLINDER ASSY

TF550,20D,7260 #0193

1шт.

*

33HA-07061

LIFT CYLINDER ASSY

TF550,25D,7260 #0897

1шт.

*

33HA-07071

LIFT CYLINDER ASSY

TF600,20D,7260 #0193

1шт.

*

33HA-07071

LIFT CYLINDER ASSY

TF600,25D,7260 #0897

1шт.

1

H30981200

TUBE ASSY

TF370

1шт.

1

H30980800

TUBE ASSY

TF400

1шт.

1

H30981000

TUBE ASSY

TF430

1шт.

1

H30984500

TUBE ASSY

TF450

1шт.

1

H30984700

TUBE ASSY

TF470

1шт.

1

H30980600

TUBE ASSY

TF500

1шт.

1

H30986200

TUBE ASSY

TF550

1шт.

1

H30986400

TUBE ASSY

TF600

1шт.

2

H40792500

ROD

TF370

1шт.

2

H40791400

ROD

TF400

1шт.

2

H40791800

ROD

TF430

1шт.

2

H40796700

ROD

TF450

1шт.

2

H40820200

ROD

TF470

1шт.

2

H40788300

ROD

TF500

1шт.

2

H40798700

ROD

TF550

1шт.

2

H40799100

ROD

TF600

1шт.

3

H70175902

PISTON

1шт.

K4

H70659700

U-PACKING

1шт.

K5

H70177401

BACKING UP RING

1шт.

K6

H70058900

WEAR RING

1шт.

7

H70176100

CHECK

1шт.

8

H70176000

SPACER

1шт.

9

H70769200

RETAINING RING

1шт.

10

H70030100

STOP RING

1шт.

11

H70010500

CUSHION SEAL

1шт.

12

H70177300

RETAINING RING

1шт.

13

H40079903

ROD COVER

1шт.

K14

H70693400

U-PACKING

1шт.

K15

H70704200

DUST WIPER

1шт.

16

H70039900

RETAINING RING

1шт.

K17

H70711300

WEAR RING

1шт.

K18

H40005200

DUST RING

1шт.

K19

H70728300

O-RING

1шт.

20

H70030200

STOP RING

1шт.

K

XKCD-00661

SEAL KIT

SEE ILLUST

1шт.
