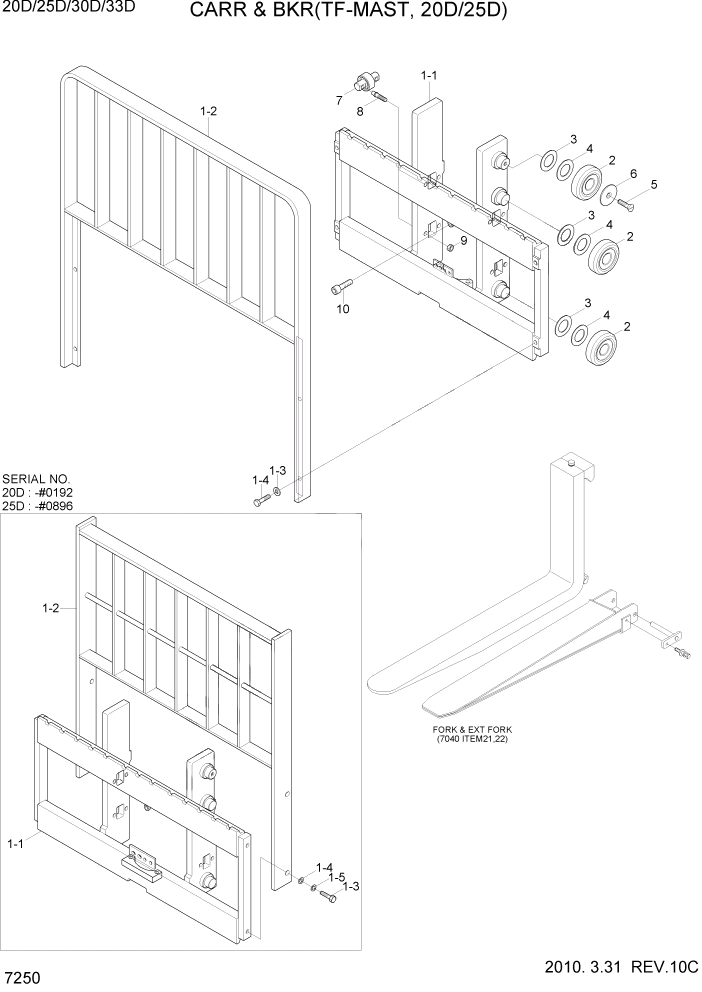

Запчасти Hyundai 20/25/30/33D-7 PAGE 7250 CARR & BKR(TF-MAST, 20D/25D) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

63FG-27041

CARR & BACKREST ASSY

SINGLE

1шт.

*

63FG-27062

CARR & BACKREST ASSY

DOUBLE

1шт.

1

63FG-25041

CARR & BKR SUB ASSY

SINGLE,20D #0192

1шт.

1

63HN-25010

CARR & BKR SUB ASSY

SINGLE,20D #0193

1шт.

1

63FG-25041

CARR & BKR SUB ASSY

SINGLE,25D #0896

1шт.

1

63HN-25010

CARR & BKR SUB ASSY

SINGLE,25D #0897

1шт.

1-2

61FG-23430

BACKREST WA(SINGLE)

SINGLE

1шт.

1-2

61FG-23630

BACKREST WA(DOUBLE)

DOUBLE

1шт.

1-3

S017-160352

BOLT-HEX

4шт.

1-4

S403-161002

WASHER-PLAIN

4шт.

1-5

S411-160002

WASHER-SPRING

4шт.

1

63FG-25062

CARR & BKR SUB ASSY

DOUBLE,20D #0192

1шт.

1

63HN-25020

CARR & BKR SUB ASSY

DOUBLE,20D #0193

1шт.

1

63FG-25062

CARR & BKR SUB ASSY

DOUBLE,25D #0896

1шт.

1

63HN-25020

CARR & BKR SUB ASSY

DOUBLE,25D #0897

1шт.

1-1

63FG-21041

CARRIAGE WA

SINGLE,20D #0192

1шт.

1-1

63HN-21011

CARRIAGE WA

SINGLE,20D #0193

1шт.

1-1

63FG-21041

CARRIAGE WA

SINGLE,25D #0896

1шт.

1-1

63HN-21011

CARRIAGE WA

SINGLE,25D #0897

1шт.

1-1

63FG-21062

CARRIAGE WA

DOUBLE,20D #0192

1шт.

1-1

63HN-21021

CARRIAGE WA

DOUBLE,20D #0193

1шт.

1-1

63FG-21062

CARRIAGE WA

DOUBLE,25D #0896

1шт.

1-1

63HN-21021

CARRIAGE WA

DOUBLE,25D #0897

1шт.

1-2

61FG-23430

BACKREST WA

SINGLE,20D #0192

1шт.

1-2

61HN-23431

BACKREST WA

SINGLE,20D #0193 - #0259

1шт.

1-2

61HN-23432

BACKREST WA

SINGLE,20D #0260

1шт.

1-2

61FG-23430

BACKREST WA

SINGLE,25D #0896

1шт.

1-2

61HN-23431

BACKREST WA

SINGLE,25D #0897 - #1285

1шт.

1-2

61HN-23432

BACKREST WA

SINGLE,25D #1286

1шт.

1-2

61FG-23630

BACKREST WA

DOUBLE,20D #0192

1шт.

1-2

61HN-23631

BACKREST WA

DOUBLE,20D #0193 - #0259

1шт.

1-2

61HN-23632

BACKREST WA

DOUBLE,20D #0260

1шт.

1-2

61FG-23630

BACKREST WA

DOUBLE,25D #0896

1шт.

1-2

61HN-23631

BACKREST WA

DOUBLE,25D #0897 - #1285

1шт.

1-2

61HN-23632

BACKREST WA

DOUBLE,25D #1286

1шт.

1-3

S017-160352

BOLT-HEX

20D #0192

4шт.

1-3

S017-120356

BOLT-HEX

20D #0193

4шт.

1-3

S017-160352

BOLT-HEX

25D #0896

4шт.

1-3

S017-120356

BOLT-HEX

25D #0897

4шт.

1-4

S403-161002

WASHER-PLAIN

20D #0192

4шт.

1-4

S441-120006

WASHER-HARDENED

20D #0193

4шт.

1-4

S403-161002

WASHER-PLAIN

25D #0896

4шт.

1-4

S441-120006

WASHER-HARDENED

25D #0897

4шт.

1-5

S411-160002

WASHER-SPRING

20D #0192

4шт.

1-5

S411-160002

WASHER-SPRING

25D #0896

4шт.

2

6600181100-01

BEARING-ROLLER

20D #0194

6шт.

2

63HK-18100

LOAD R/BRG ASSY(117.5)

20D,STD #0195

6шт.

2

63HK-18110

LOAD R/BRG ASSY(117.2)

20D,UNDERSIZE #0195

6шт.

2

63HK-18120

LOAD R/BRG ASSY(117.8)

20D,OVERSIZE #0195

6шт.

2

63HK-18130

LOAD R/BRG ASSY(116.9)

20D,SMALLSIZE #0195

6шт.

2

6600181100-01

BEARING-ROLLER

25D #0939

6шт.

2

63HK-18100

LOAD R/BRG ASSY(117.5)

25D,STD #0940

6шт.

2

63HK-18110

LOAD R/BRG ASSY(117.2)

25D,UNDERSIZE #0940

6шт.

2

63HK-18120

LOAD R/BRG ASSY(117.8)

25D,OVERSIZE #0940

6шт.

2

63HK-18130

LOAD R/BRG ASSY(116.9)

25D,SMALLSIZE #0940

6шт.

2

6600181100-01

BEARING-ROLLER

20D #0192

6шт.

2

63HK-18100

BEARING-ROLLER

20D #0193

6шт.

2

6600181100-01

BEARING-ROLLER

25D #0896

6шт.

2

63HK-18100

BEARING-ROLLER

25D #0897

6шт.

3

6600187900

SHIM(0.5T)

6шт.

4

6600188000

SHIM(1.0T)

6шт.

5

61F7-28010

BOLT-FLAT HD

2шт.

6

61F7-28021

WASHER-RETAINING

2шт.

7

61F7-28100

SIDE ROLLER ASSY

4шт.

8

61F4-28040

ADJUSTABLE SCREW

8шт.

9

S205-161006

NUT-HEX

8шт.

10

S109-120306

BOLT-SOCKET

1шт.
