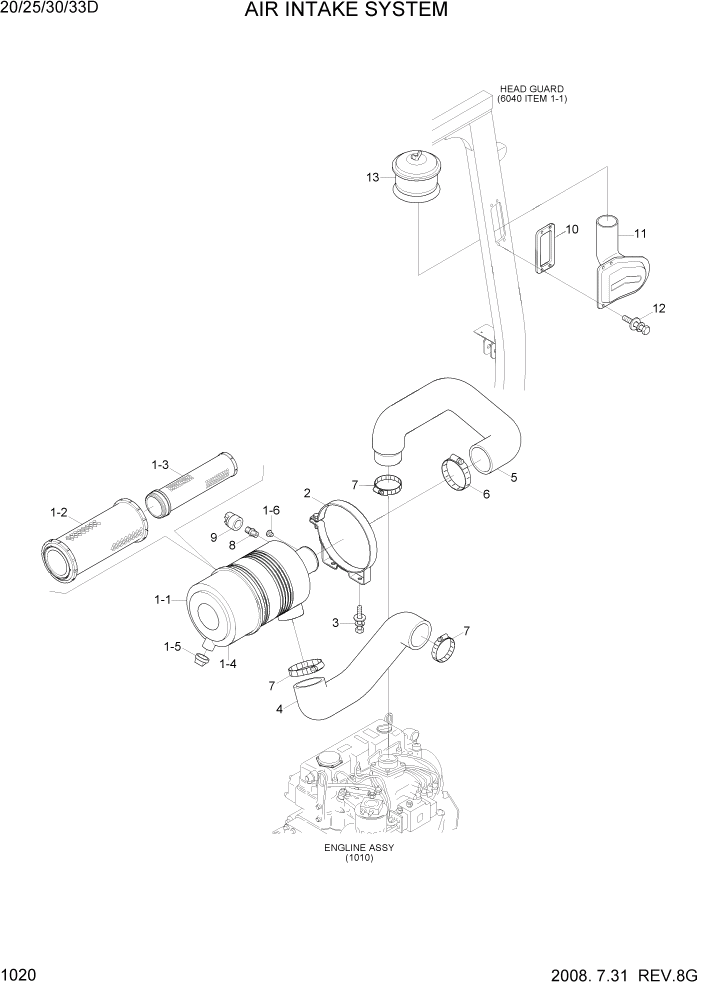

Запчасти Hyundai 20/25/30/33D-7 PAGE 1020 AIR INTAKE SYSTEM СИСТЕМА ДВИГАТЕЛЯ

1

11HA-20100

AIR CLEANER ASSY

NON UL #0001

1шт.

1

11HA-20200

AIR CLEANER ASSY

UL #0001

1шт.

1-1

11HA-20110

BODY ASSY

NON UL #0001

1шт.

1-1

11HA-20210

BODY ASSY

UL #0001

1шт.

1-2

11S7-40120

ELEMENT-PRIMARY(OUT)

NON UL #0001

1шт.

1-3

11S7-40130

ELEMENT-SAFETY(IN)

1шт.

1-2

11HA-20220

ELEMENT-PRIMARY(OUT)

UL #0001

1шт.

1-3

11S7-40130

ELEMENT-SAFETY(IN)

NON UL #0001

1шт.

1-3

11HA-20230

ELEMENT-SAFETY(IN)

UL #0001

1шт.

1-4

11S7-40140

COVER ASSY

NON UL #0001

1шт.

1-4

11HA-20240

COVER ASSY

UL #0001

1шт.

1-5

11S7-40150

VALVE-VACUATOR

1шт.

1-6

11HA-20250

PLUG

1шт.

2

11HA-20050

CLAMP-A/CLEANER

1шт.

3

S035-082526

BOLT-W/WASHER

2шт.

4

11HA-20031

HOSE-A/C

20D #0178

1шт.

4

11HA-20032

HOSE-A/C

20D #0179

1шт.

4

11HA-20031

HOSE-A/C

25D #0832

1шт.

4

11HA-20032

HOSE-A/C

25D #0833

1шт.

4

11HA-20031

HOSE-A/C

30D #1141

1шт.

4

11HA-20032

HOSE-A/C

30D #1142

1шт.

4

11HA-20031

HOSE-A/C

33D #0171

1шт.

4

11HA-20032

HOSE-A/C

33D #0172

1шт.

5

11HA-20041

HOSE-A/C

1шт.

6

S520-070000

CLAMP-HOSE,SCREW DRIVE

20D #0178

2шт.

6

S520-070000

CLAMP-HOSE,SCREW DRIVE

20D #0179

1шт.

6

S520-070000

CLAMP-HOSE,SCREW DRIVE

25D #0832

2шт.

6

S520-070000

CLAMP-HOSE,SCREW DRIVE

25D #0833

1шт.

6

S520-070000

CLAMP-HOSE,SCREW DRIVE

30D #1141

2шт.

6

S520-070000

CLAMP-HOSE,SCREW DRIVE

30D #1142

1шт.

6

S520-070000

CLAMP-HOSE,SCREW DRIVE

33D #0171

2шт.

6

S520-070000

CLAMP-HOSE,SCREW DRIVE

33D #0172

1шт.

7

S520-080000

CLAMP-HOSE

20D #0001 - #0178

2шт.

7

S520-080000

CLAMP-HOSE

20D #0179

3шт.

7

S520-080000

CLAMP-HOSE

25D #0001 - #0832

2шт.

7

S520-080000

CLAMP-HOSE

25D #0833

3шт.

7

S520-080000

CLAMP-HOSE

30D #0001 - #1141

2шт.

7

S520-080000

CLAMP-HOSE

30D #1142

3шт.

7

S520-090000

CLAMP-HOSE

33D #0002

2шт.

7

S520-080000

CLAMP-HOSE

33D #0003 - #0171

2шт.

7

S520-080000

CLAMP-HOSE

33D #0172

3шт.

8

11FQ-20060

ADAPTER

1шт.

9

11FG-20110

SENSOR-AIR CLEANER

1шт.

10

11HF-20040

RUBBER PAD

20D,PRE CLEANER #0030

1шт.

10

11HF-20040

RUBBER PAD

25D,PRE CLEANER #0180

1шт.

10

11HF-20040

RUBBER PAD

30D,PRE CLEANER #0225

1шт.

10

11HF-20040

RUBBER PAD

33D,PRE CLEANER #0025

1шт.

11

11HF-20050

BRACKET-PRE CLEANER

20D,PRE CLEANER #0030

1шт.

11

11HF-20050

BRACKET-PRE CLEANER

25D,PRE CLEANER #0180

1шт.

11

11HF-20050

BRACKET-PRE CLEANER

30D,PRE CLEANER #0225

1шт.

11

11HF-20050

BRACKET-PRE CLEANER

33D,PRE CLEANER #0025

1шт.

12

S035-082026

BOLT-W/WASHER

20D,PRE CLEANER #0030

4шт.

12

S035-082026

BOLT-W/WASHER

25D,PRE CLEANER #0180

4шт.

12

S035-082026

BOLT-W/WASHER

30D,PRE CLEANER #0225

4шт.

12

S035-082026

BOLT-W/WASHER

33D,PRE CLEANER #0025

4шт.

13

11M6-56400

PRECLEANER

20D,PRE CLEANER #0030

1шт.

13

11M6-56400

PRECLEANER

25D,PRE CLEANER #0180

1шт.

13

11M6-56400

PRECLEANER

30D,PRE CLEANER #0225

1шт.

13

11M6-56400

PRECLEANER

33D,PRE CLEANER #0025

1шт.
