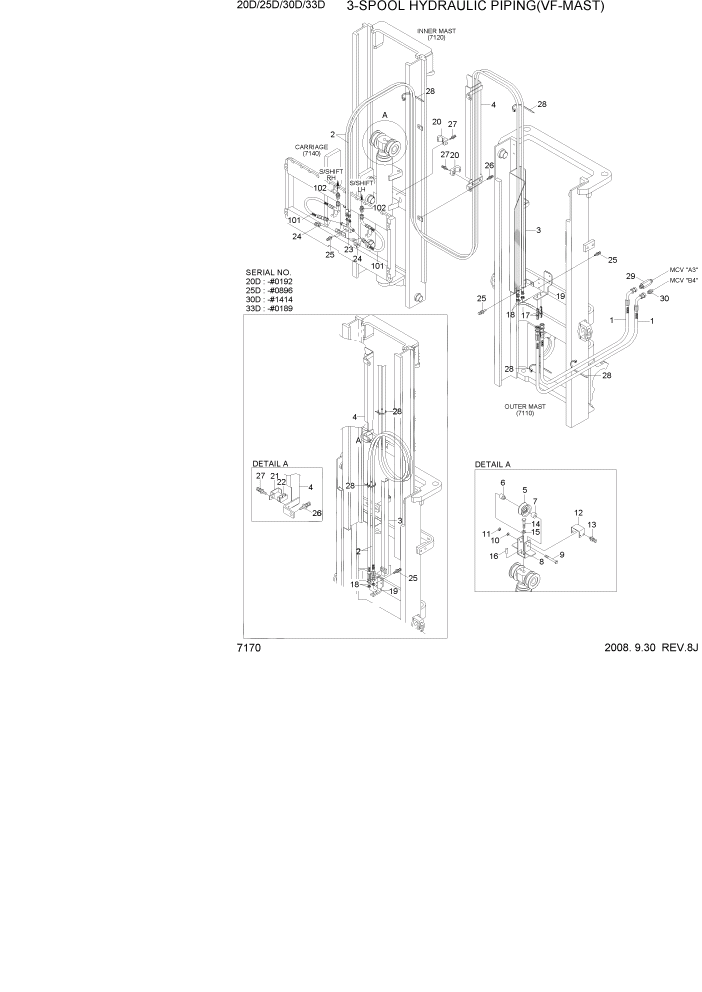

Запчасти Hyundai 20/25/30/33D-7 PAGE 7170 3-SPOOL HYDRAULIC PIPING(VF-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P933-064024

HOSE ASSY-ORFS 0X90

20D #0192

2шт.

1

P933-064027

HOSE ASSY-ORFS 0X90

20D #0193

2шт.

1

P933-064024

HOSE ASSY-ORFS 0X90

25D #0896

2шт.

1

P933-064027

HOSE ASSY-ORFS 0X90

25D #0897

2шт.

1

P933-064024

HOSE ASSY-ORFS 0X90

30D #1414

2шт.

1

P933-064027

HOSE ASSY-ORFS 0X90

30D #1415

2шт.

1

P933-064024

HOSE ASSY-ORFS 0X90

33D #0189

2шт.

1

P933-064027

HOSE ASSY-ORFS 0X90

33D #0190

2шт.

2

P910-064088

HOSE ASSY-ORFS 0X0

VF290,20D #0192

2шт.

2

P910-064087

HOSE ASSY-ORFS 0X0

VF290,20D #0193

2шт.

2

P910-064088

HOSE ASSY-ORFS 0X0

VF290,25D #0896

2шт.

2

P910-064087

HOSE ASSY-ORFS 0X0

VF290,25D #0897

2шт.

2

P910-064088

HOSE ASSY-ORFS 0X0

VF290,30D #1414

2шт.

2

P910-064087

HOSE ASSY-ORFS 0X0

VF290,30D #1415

2шт.

2

P910-064088

HOSE ASSY-ORFS 0X0

VF290,33D #0189

2шт.

2

P910-064087

HOSE ASSY-ORFS 0X0

VF290,33D #0190

2шт.

2

P910-064092

HOSE ASSY-ORFS 0X0

VF320,20D #0192

2шт.

2

P910-064093

HOSE ASSY-ORFS 0X0

VF320,20D #0193

2шт.

2

P910-064092

HOSE ASSY-ORFS 0X0

VF320,25D #0896

2шт.

2

P910-064093

HOSE ASSY-ORFS 0X0

VF320,25D #0897

2шт.

2

P910-064092

HOSE ASSY-ORFS 0X0

VF320,30D #1414

2шт.

2

P910-064093

HOSE ASSY-ORFS 0X0

VF320,30D #1415

2шт.

2

P910-064092

HOSE ASSY-ORFS 0X0

VF320,33D #0189

2шт.

2

P910-064093

HOSE ASSY-ORFS 0X0

VF320,33D #0190

2шт.

3

32FG-80210

GUARD WA-STAT

VF290,20D #0192

1шт.

3

32HN-91011

GUARD WA-STAT

VF290,20D #0193

1шт.

3

32FG-80210

GUARD WA-STAT

VF290,25D #0896

1шт.

3

32HN-91011

GUARD WA-STAT

VF290,25D #0897

1шт.

3

32FG-80210

GUARD WA-STAT

VF290,30D #1414

1шт.

3

32HN-91011

GUARD WA-STAT

VF290,30D #1415

1шт.

3

32FG-80210

GUARD WA-STAT

VF290,33D #0189

1шт.

3

32HN-91011

GUARD WA-STAT

VF290,33D #0190

1шт.

3

32FG-80220

GUARD WA-STAT

VF320,20D #0192

1шт.

3

32HN-91021

GUARD WA-STAT

VF320,20D #0193

1шт.

3

32FG-80220

GUARD WA-STAT

VF320,25D #0896

1шт.

3

32HN-91021

GUARD WA-STAT

VF320,25D #0897

1шт.

3

32FG-80220

GUARD WA-STAT

VF320,30D #1414

1шт.

3

32HN-91021

GUARD WA-STAT

VF320,30D #1415

1шт.

3

32FG-80220

GUARD WA-STAT

VF320,33D #0189

1шт.

3

32HN-91021

GUARD WA-STAT

VF320,33D #0190

1шт.

4

32FG-80311

GUARD WA-ELEV

VF290,20D #0192

1шт.

4

32HN-91111

GUARD WA-ELEV

VF290,20D #0193

1шт.

4

32FG-80311

GUARD WA-ELEV

VF290,25D #0896

1шт.

4

32HN-91111

GUARD WA-ELEV

VF290,25D #0897

1шт.

4

32FG-80311

GUARD WA-ELEV

VF290,30D #1414

1шт.

4

32HN-91111

GUARD WA-ELEV

VF290,30D #1415

1шт.

4

32FG-80311

GUARD WA-ELEV

VF290,33D #0189

1шт.

4

32HN-91111

GUARD WA-ELEV

VF290,33D #0190

1шт.

4

32FG-80321

GUARD WA-ELEV

VF320,20D #0192

1шт.

4

32HN-91121

GUARD WA-ELEV

VF320,20D #0193

1шт.

4

32FG-80321

GUARD WA-ELEV

VF320,25D #0896

1шт.

4

32HN-91121

GUARD WA-ELEV

VF320,25D #0897

1шт.

4

32FG-80321

GUARD WA-ELEV

VF320,30D #1414

1шт.

4

32HN-91121

GUARD WA-ELEV

VF320,30D #1415

1шт.

4

32FG-80321

GUARD WA-ELEV

VF320,33D #0189

1шт.

4

32HN-91121

GUARD WA-ELEV

VF320,33D #0190

1шт.

5

34FG-90201

PULLEY-HOSE

1шт.

6

34FG-90250

PIN-HOSE PULLEY

20D #0057

1шт.

6

34FG-90370

PIN-HOSE PULLEY

20D #0058

1шт.

6

34FG-90250

PIN-HOSE PULLEY

25D #0280

1шт.

6

34FG-90370

PIN-HOSE PULLEY

25D #0281

1шт.

6

34FG-90250

PIN-HOSE PULLEY

30D #0360

1шт.

6

34FG-90370

PIN-HOSE PULLEY

30D #0364

1шт.

6

34FG-90250

PIN-HOSE PULLEY

33D #0060

1шт.

6

34FG-90370

PIN-HOSE PULLEY

33D #0061

1шт.

7

34FG-90360

SPACER

20D #0057

1шт.

7

34FG-90330

SPACER

20D #0058

1шт.

7

34FG-90360

SPACER

25D #0280

1шт.

7

34FG-90330

SPACER

25D #0281

1шт.

7

34FG-90360

SPACER

30D #0363

1шт.

7

34FG-90330

SPACER

30D #0364

1шт.

7

34FG-90360

SPACER

33D #0060

1шт.

7

34FG-90330

SPACER

33D #0061

1шт.

8

33HA-90700

BRACKET WA

20D #0057

1шт.

8

33HA-90701

BRACKET WA-PULLEY

20D #0058

1шт.

8

33HA-90700

BRACKET WA

25D #0280

1шт.

8

33HA-90701

BRACKET WA-PULLEY

25D #0281

1шт.

8

33HA-90700

BRACKET WA

30D #0363

1шт.

8

33HA-90701

BRACKET WA-PULLEY

30D #0364

1шт.

8

33HA-90700

BRACKET WA

33D #0060

1шт.

8

33HA-90701

BRACKET WA-PULLEY

33D #0061

1шт.

9

S017-101006

BOLT-HEX

1шт.

10

S403-102006

WASHER-PLAIN

1шт.

11

S275-100006

NUT-SELF LOCKING

1шт.

12

33HA-90750

COVER

20D #0057

1шт.

12

33HA-90751

COVER

20D #0058

1шт.

12

33HA-90750

COVER

25D #0280

1шт.

12

33HA-90751

COVER

25D #0281

1шт.

12

33HA-90750

COVER

30D #0363

1шт.

12

33HA-90751

COVER

30D #0364

1шт.

12

33HA-90750

COVER

33D #0060

1шт.

12

33HA-90751

COVER

33D #0061

1шт.

13

S035-081526

BOLT-W/WASHER

2шт.

14

S017-120506

BOLT-HEX

1шт.

15

S411-120006

WASHER-SPRING

1шт.

16

S471-800162

PIN-SPRING

1шт.

17

31FG-80210

CONNECTOR

2шт.

18

31FG-80430

NUT-HEX

2шт.

19

32FG-80040

BRACKET

20D #0192

1шт.

19

32FG-80041

BRACKET

20D #0193

1шт.

19

32FG-80040

BRACKET

25D #0896

1шт.

19

32FG-80041

BRACKET

25D #0897

1шт.

19

32FG-80040

BRACKET

30D #1414

1шт.

19

32FG-80041

BRACKET

30D #1415

1шт.

19

32FG-80040

BRACKET

33D #0189

1шт.

19

32FG-80041

BRACKET

33D #0190

1шт.

20

33FG-90210

CLAMP-HOSE

20D #0192

1шт.

20

34FG-90260

CLAMP-HOSE

20D #0193

2шт.

20

33FG-90210

CLAMP-HOSE

25D #0896

1шт.

20

34FG-90260

CLAMP-HOSE

25D #0897

2шт.

20

33FG-90210

CLAMP-HOSE

30D #1414

1шт.

20

34FG-90260

CLAMP-HOSE

30D #1415

2шт.

20

33FG-90210

CLAMP-HOSE

33D #0189

1шт.

20

34FG-90260

CLAMP-HOSE

33D #0190

2шт.

21

31FB-70040

CLAMP-HOSE

20D #0192

1шт.

21

31FB-70040

CLAMP-HOSE

25D #0896

1шт.

21

31FB-70040

CLAMP-HOSE

30D #1414

1шт.

21

31FB-70040

CLAMP-HOSE

33D #0189

1шт.

22

31FA-60020

RUBBER

20D #0192

1шт.

22

31FA-60020

RUBBER

25D #0896

1шт.

22

31FA-60020

RUBBER

30D #1414

1шт.

22

31FA-60020

RUBBER

33D #0189

1шт.

23

33HA-90401

PIPE WA

1шт.

24

X710-100103

CAP

2шт.

25

S037-103026

BOLT-W/WASHER

5шт.

26

S037-102026

BOLT-W/WASHER

2шт.

27

S035-082026

BOLT-W/WASHER

20D #0192

3шт.

27

S035-063526

BOLT-W/WASHER

20D #0193

4шт.

27

S035-082026

BOLT-W/WASHER

25D #0896

3шт.

27

S035-063526

BOLT-W/WASHER

25D #0897

4шт.

27

S035-082026

BOLT-W/WASHER

30D #1414

3шт.

27

S035-063526

BOLT-W/WASHER

30D #1415

4шт.

27

S035-082026

BOLT-W/WASHER

33D #0189

3шт.

27

S035-063526

BOLT-W/WASHER

33D #0190

4шт.

28

S552-035146

CLAMP-BAND

10шт.

29

31FQ-10070

CONNECTOR

1шт.

30

31N5-30050

CONNECTOR

1шт.

101

P933-064007

HOSE ASSY-ORFS 0X90

20/25D, S/SHIFT

2шт.

101

P933-064007

HOSE ASSY-ORFS 0X90

30D, S/SHIFT #0339

2шт.

101

P933-064009

HOSE ASSY-ORFS 0X90

30D, S/SHIFT #0340

2шт.

101

P933-064007

HOSE ASSY-ORFS 0X90

33D, S/SHIFT #0047

2шт.

101

P933-064009

HOSE ASSY-ORFS 0X90

33D, S/SHIFT #0048

2шт.

102

X500-310002

CONNECTOR-ORFS

SIDE SHIFT

2шт.

102

31FG-80400

ELBOW-90

OPT

2шт.
