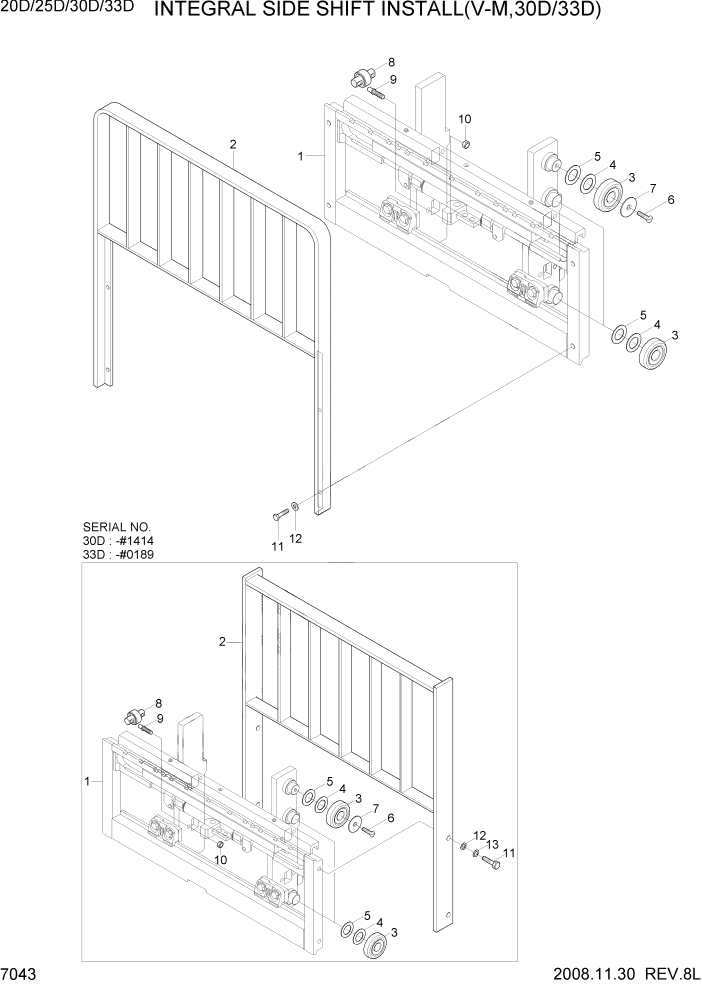

Запчасти Hyundai 20/25/30/33D-7 PAGE 7043 INTEGRAL SIDE SHIFT INSTALL(V-M,30D/33D) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

@

INTEGRAL SIDE SHIFT ASSY

NOT

1шт.

1

67HA-20110

INTEGRAL SIDE SHIFT ASSY

SINGLE,33D

1шт.

1

67HA-10120

INTEGRAL SIDE SHIFT ASSY

D,SEE 7045,30D

1шт.

1

67HA-20120

INTEGRAL SIDE SHIFT ASSY

DOUBLE,33D

1шт.

1

67HA-10130

INTEGRAL SIDE SHIFT ASSY

WIDE-S,7045,30D

1шт.

2

61FG-24430

BACKREST WA

SINGLE

1шт.

2

61FG-24630

BACKREST WA

DOUBLE

1шт.

2

61FG-24730

BACKREST WA

WIDE-S

1шт.

3

6600181100-01

BEARING-ROLLER

6шт.

4

6600187900

SHIM(0.5T)

6шт.

5

6600188000

SHIM(1.0T)

6шт.

6

61F7-28010

BOLT-FLAT HD

2шт.

7

61F7-28020

WASHER-RETAINING

2шт.

8

61F7-28100

SIDE ROLLER ASSY

4шт.

9

61FB-28040

SCREW-ADJUST

8шт.

10

S205-161006

NUT-HEX

8шт.

2

61FG-24430

BACKREST WA

SINGLE,30D #1414

1шт.

2

6AHN-24430

BACKREST WA

SINGLE,30D #1415

1шт.

2

61FG-24430

BACKREST WA

SINGLE,33D #0189

1шт.

2

6AHN-24430

BACKREST WA

SINGLE,33D #0190

1шт.

11

S017-16035D

BOLT-HEX

4шт.

2

61FG-24630

BACKREST WA

DOUBLE,30D #1414

1шт.

2

6AHN-24630

BACKREST WA

DOUBLE,30D #1415

1шт.

2

61FG-24630

BACKREST WA

DOUBLE,33D #0189

1шт.

2

6AHN-24630

BACKREST WA

DOUBLE,33D #0190

1шт.

12

S403-161006

WASHER-PLAIN

4шт.

2

61FG-24730

BACKREST WA

WIDE-S,30D #1414

1шт.

2

6AHN-24730

BACKREST WA

WIDE-S,30D #1415

1шт.

2

61FG-24730

BACKREST WA

WIDE-S,33D #0189

1шт.

2

6AHN-24730

BACKREST WA

WIDE-S,33D #0190

1шт.

3

6600181100-01

BEARING-ROLLER

30D #1417

6шт.

3

63HK-18100

LOAD R/BRG ASSY

30D,STD #1418

6шт.

3

6600181100-01

BEARING-ROLLER

30D #1414

6шт.

3

63HK-18110

LOAD R/BRG ASSY(117.2)

30D,UNDERSIZE #1418

6шт.

3

63HK-18120

LOAD R/BRG ASSY(117.8)

30D,OVERSIZE #1418

6шт.

3

63HK-18130

LOAD R/BRG ASSY(116.9)

30D,SMALLSIZE #1418

6шт.

3

6600181100-01

BEARING-ROLLER

33D #0199

6шт.

3

63HK-18100

LOAD R/BRG ASSY

33D,STD #0200

6шт.

3

63HK-18110

LOAD R/BRG ASSY(117.2)

33D,UNDERSIZE #0200

6шт.

4

6600187900

SHIM(0.5T)

6шт.

3

63HK-18120

LOAD R/BRG ASSY(117.8)

33D,OVERSIZE #0200

6шт.

3

63HK-18130

LOAD R/BRG ASSY(116.9)

33D,SMALLSIZE #0200

6шт.

4

6600187900

SHIM(0.5T)

6шт.

5

6600188000

SHIM(1.0T)

6шт.

6

61F7-28010

BOLT-FLAT HD

2шт.

7

61F7-28021

WASHER-RETAINING

2шт.

8

61F7-28100

SIDE ROLLER ASSY

4шт.

9

61FB-28040

SCREW-ADJUST

8шт.

10

S205-161006

NUT-HEX

8шт.

11

S017-160352

BOLT-HEX

30D #1414

4шт.

11

S017-120356

BOLT-HEX

30D #1415

4шт.

11

S017-160352

BOLT-HEX

33D #0189

4шт.

11

S017-120356

BOLT-HEX

33D #0190

4шт.

12

S403-161002

WASHER-PLAIN

30D #1414

4шт.

12

S441-12000B

WASHER-HARDENED

30D #1415

4шт.

12

S403-161002

WASHER-PLAIN

33D #0189

4шт.

12

S441-12000B

WASHER-HARDENED

33D #0190

4шт.

13

S411-160002

WASHER-SPRING

30D #1414

4шт.

13

S411-160002

WASHER-SPRING

33D #0189

4шт.
