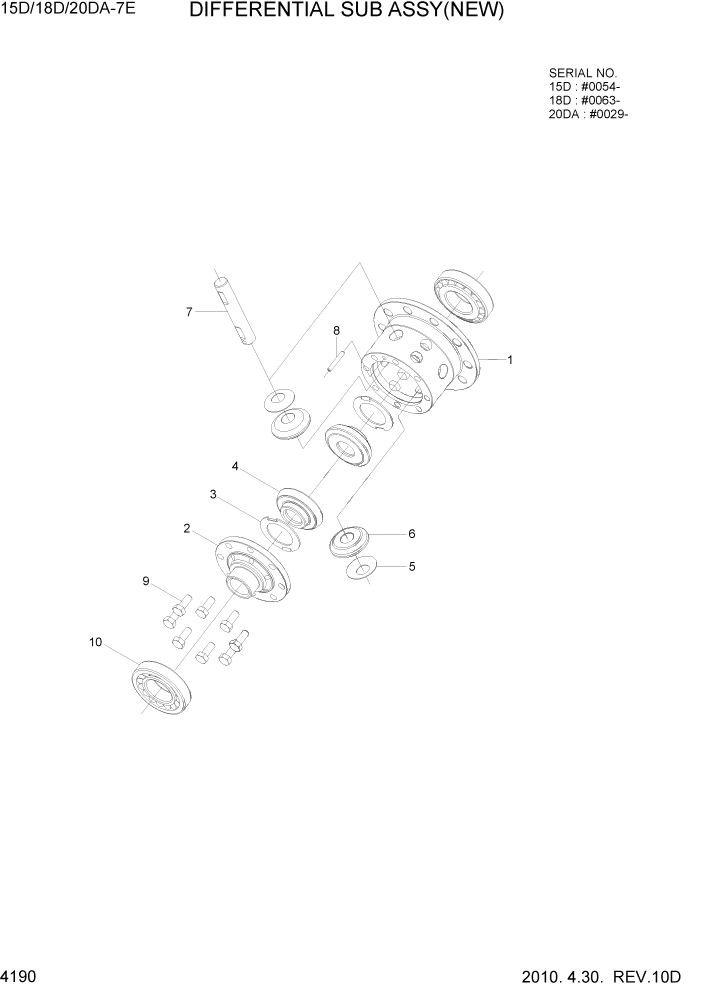

Запчасти Hyundai 15D/18D/20DA-7E PAGE 4190 DIFFERENTIAL ASSY(NEW) СИЛОВАЯ СИСТЕМА

*

@

DRIVE AXLE ASSY

NOT

1шт.

*-1

XKCF-00511

DIFFERENTIAL SUB ASSY

15D-7E #0054

1шт.

*-1

XKCF-00511

DIFFERENTIAL SUB ASSY

18D-7E #0063

1шт.

*-1

XKCF-00511

DIFFERENTIAL SUB ASSY

20DA-7E #0029

1шт.

1

XKCF-00544

CASE-DIFF, RH

1шт.

2

XKCF-00545

CASE-DIFF, LH

1шт.

3

XKCF-00546

WASHER-THRUST

2шт.

4

XKCF-00547

GEAR-DIFF, SIDE

2шт.

5

XKCF-00548

WASHER-THRUST

2шт.

6

XKCF-00549

GEAR-DIFF, PINION

2шт.

7

XKCF-00550

SPIDER-DIFF

1шт.

8

S471-600324

PIN-SPRING

1шт.

9

S109-080206

BOLT-SOCKET

8шт.

10

XKCF-00072

BEARING-TAPER ROLLER

2шт.
