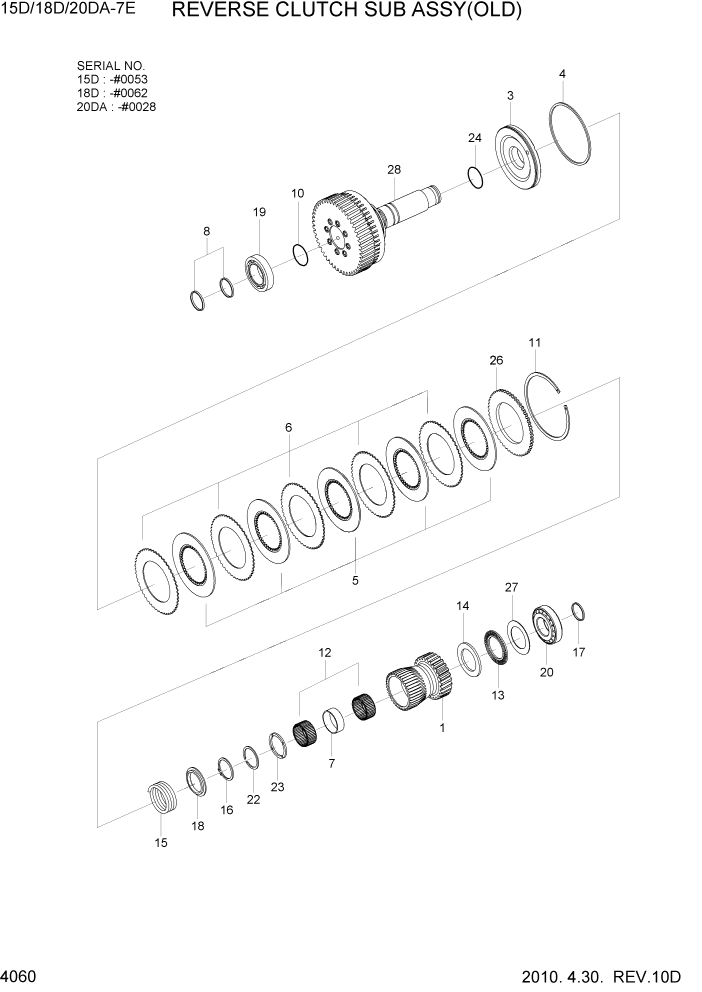

Запчасти Hyundai 15D/18D/20DA-7E PAGE 4060 REVERSE CLUTCH SUB ASSY(OLD) СИЛОВАЯ СИСТЕМА

*

@

TRANSMISSION ASSY

NOT

1шт.

1

XKCF-00352

REVERSE C/L GEAR

1шт.

2

XKCF-00086

REVERSE SHAFT

1шт.

3

XKCF-00058

PISTON

15D #0001

1шт.

3

XKCF-00371

PISTON

15D #0002 - #0014

1шт.

3

XKCF-00380

PISTON

15D #0015

1шт.

3

XKCF-00058

PISTON

18D #0001

1шт.

3

XKCF-00371

PISTON

18D #0002 - #0010

1шт.

3

XKCF-00380

PISTON

18D #0011

1шт.

3

XKCF-00058

PISTON

20DA #0006

1шт.

3

XKCF-00371

PISTON

20DA #0007 - #0010

1шт.

3

XKCF-00380

PISTON

20DA #0011

1шт.

4

XKCF-00059

PISTON RING

15D #0001

1шт.

4

XKCF-00372

RING-PISTON

15D #0002

1шт.

4

XKCF-00059

PISTON RING

18D #0001

1шт.

4

XKCF-00372

RING-PISTON

18D #0002

1шт.

4

XKCF-00059

PISTON RING

20DA #0006

1шт.

4

XKCF-00372

RING-PISTON

20DA #0007

1шт.

5

XKCF-00060

PLATE-FRICTION

5шт.

6

XKCF-00061

PLATE

5шт.

7

XKCF-00062

SPACER

1шт.

8

XKCF-00087

RING-SEAL

2шт.

9

XKCF-00088

RIVET

8шт.

10

XKCF-00089

O-RING

1шт.

11

XKCF-00064

RING-SNAP

1шт.

12

XKCF-00065

BEARING-NEEDLE

2шт.

13

XKCF-00066

THRUST-NEEDLE BEARING

1шт.

14

XKCF-00067

THRUST WASHER

1шт.

15

XKCF-00068

SPRING-C/L

15D #0014

1шт.

15

XKCF-00379

SPRING-C/L

15D #0015

1шт.

15

XKCF-00068

SPRING-C/L

18D #0014

1шт.

15

XKCF-00379

SPRING-C/L

18D #0015

1шт.

15

XKCF-00068

SPRING-C/L

20DA #0014

1шт.

15

XKCF-00379

SPRING-C/L

20DA #0015

1шт.

16

XKCF-00069

SNAP RING-SPRING C/L

1шт.

17

XKCF-00070

SEAL RING-SMALL

1шт.

18

XKCF-00071

COVER-SPRING C/L

1шт.

19

XKCF-00090

BEARING-TAPER ROLLER

1шт.

20

XKCF-00072

BEARING-TAPER ROLLER

1шт.

21

XKCF-00091

REVERSE DRUM GEAR

1шт.

22

XKCF-00612

RING-SNAP

#0001

1шт.

23

XKCF-00078

WASHER-THRUST

1шт.

24

XKCF-00079

O-RING

1шт.

25

XKCF-00082

AV-SEAL

1шт.

26

XKCF-00083

PLATE-SIDE

1шт.

27

XKCF-00351

WASHER-THRUST

1шт.

28

XKCF-00373

DRUM SUB ASSY-REVERSE

1шт.
