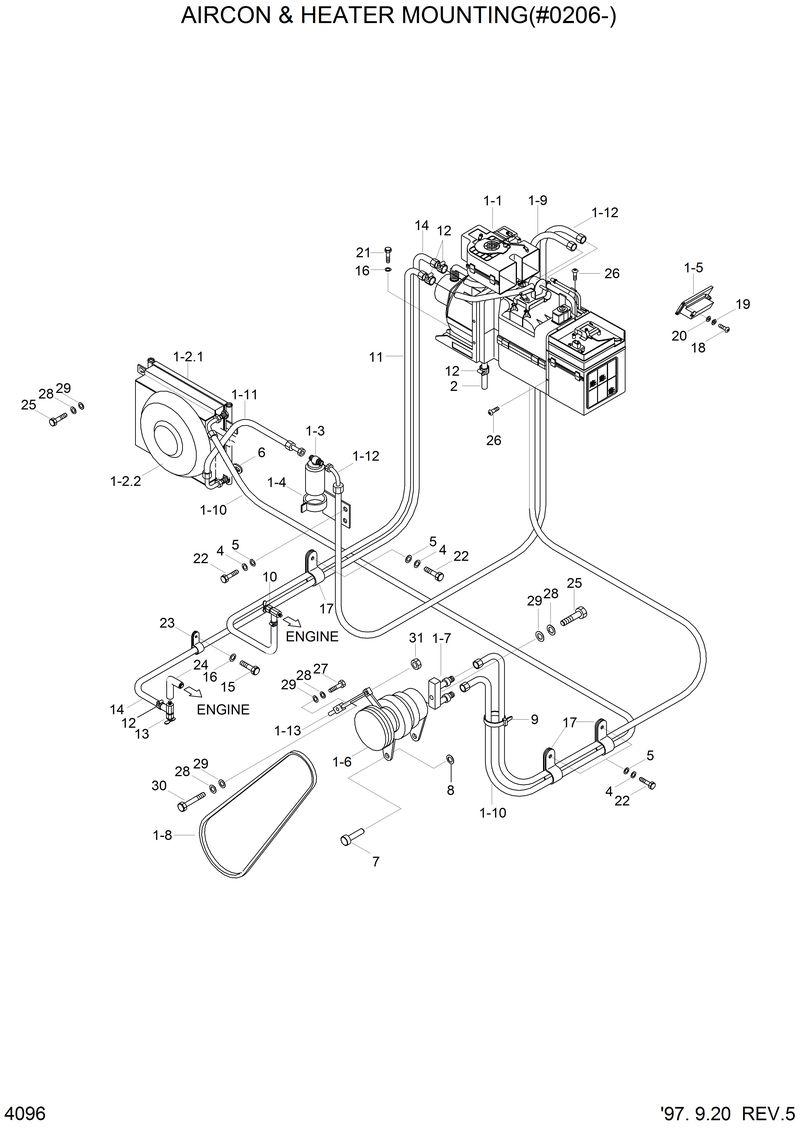

Запчасти Hyundai HL770 AIRCON & HEATER MOUNTING(#0206-)

1

14L1-01200

14L1-01200-A/C & Heater Assy

1-1

14L1-01230

14L1-01230-. Evap & Heater Unit

1-10

14L1-01300

14L1-01300-. Hose-Discharge

1-11

14L1-01310

14L1-01310-. Hose-Liquid(A)

1-12

14L1-01320

14L1-01320-. Hose-Liquid(B)

1-13

14L1-01330

14L1-01330-. Piece-Tension

1-2

14L1-01260

14L1-01260-. Cond & F/Shroud Assy

1-2.1

@

@-.. Condenser Assy

1-2.2

@

@-.. Fan & Shroud Assy

1-2.3

@

@-.. Bolt & Washer Assy

1-3

11E6-36050

11E6-36050-. R/Drier Assy

1-4

11E6-36100

11E6-36100-. Bracket-R/Drier

1-5

14L1-01270

14L1-01270-. Control Assy

1-6

11EM-90040

11EM-90040-. Compressor Assy

1-7

12E3-3509

12E3-3509-. Plate-Comp Joint

1-8

11E9-3503

11E9-3503-. V-Belt

1-9

14L1-01290

14L1-01290-. Suction Hose

10

14L1-01350

14L1-01350-Valve-Heater

11

14L1-01360

14L1-01360-Hose-Heater

12

S572-250002

S572-250002-Clamp-Hose Wire Type

13

14L1-01370

14L1-01370-Valve-Heater

14

14L1-01380

14L1-01380-Hose-Heater

15

S017-120152

S017-120152-Bolt-Hex

16

S441-120002

S441-120002-Washer-Hardened

17

S542-320002

S542-320002-Clamp-Tube

18

S161-040102

S161-040102-Screw-Rd Hd

19

S411-040002

S411-040002-Washer-Spring

2

14L1-01340

14L1-01340-Hose-Drain

20

S401-042002

S401-042002-Washer-Plain

21

S107-120252

S107-120252-Bolt-Socket

22

S015-080152

S015-080152-Bolt-Hex

23

31E7-0314

31E7-0314-Clamp-Hose

24

21L1-4006

21L1-4006-Adapter

25

S017-100302

S017-100302-Bolt-Hex

26

S152-040122

S152-040122-Screw-Tapping

27

S017-100202

S017-100202-Bolt-Hex

28

S411-100002

S411-100002-Washer-Spring

29

S403-102002

S403-102002-Washer-Plain

30

S017-100552

S017-100552-Bolt-Hex

31

S205-101002

S205-101002-Nut-Hex

4

S411-080002

S411-080002-Washer-Spring

5

S403-082002

S403-082002-Washer-Plain

6

14L3-00741

14L3-00741-Resilient

7

71L1-1012

71L1-1012-Pin

8

S601-010002

S601-010002-Ring-Retaining

9

S552-050203

S552-050203-Clamp-Band
