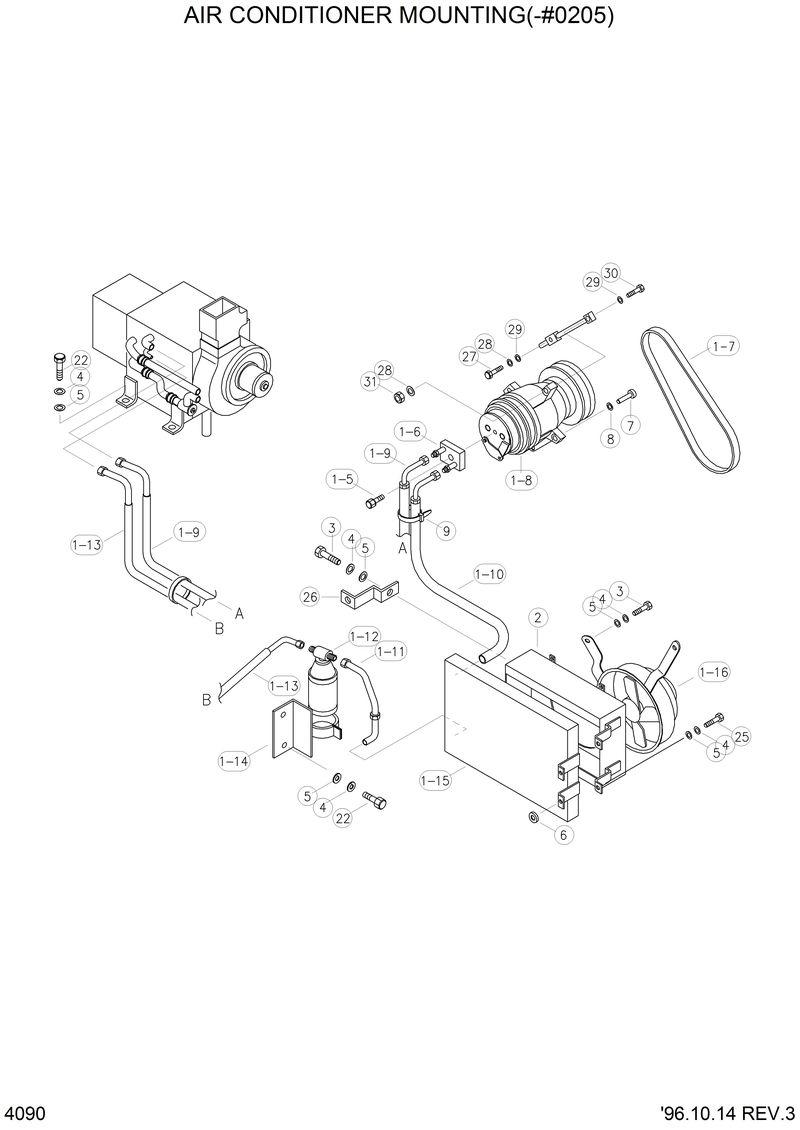

Запчасти Hyundai HL770 AIR CONDITIONER MOUNTING(-#0205)

1

14L1-00490

14L1-00490-Aircon Assy

1-10

12L1-10320

12L1-10320-. Hose-Discharge

1-11

12L1-10340

12L1-10340-. Hose-Liquid(A)

1-12

11E6-36050

11E6-36050-. Receiver Drier Assy

1-13

14L1-00520

14L1-00520-. Hose-Liquid(B)

1-14

11E6-36100

11E6-36100-. Bracket-R/Drier

1-15

12L1-10370

12L1-10370-. Condenser Assy

1-5

11EF-01740

11EF-01740-. Bolt Assy

1-6

71L1-1037

71L1-1037-. Plate

1-7

14L1-00860

14L1-00860-. V-Belt

1-8

11E6-36030

11E6-36030-. Compressor Assy

1-9

14L1-00510

14L1-00510-. Hose-Suction

2

71L1-1021

71L1-1021-Shroud Wa

22

S015-080152

S015-080152-Bolt-Hex

25

S015-080252

S015-080252-Bolt-Hex

26

71L1-1028

71L1-1028-Plate

27

S017-100252

S017-100252-Bolt-Hex

28

S411-100002

S411-100002-Washer-Spring

29

S403-102002

S403-102002-Washer-Plain

3

S015-080202

S015-080202-Bolt-Hex

30

S017-100552

S017-100552-Bolt-Hex

31

S205-101002

S205-101002-Nut-Hex

4

S411-080002

S411-080002-Washer-Spring

5

S403-082002

S403-082002-Washer-Plain

6

14L3-00740

14L3-00740-Resilient

7

71L1-1012

71L1-1012-Pin

8

S601-010002

S601-010002-Ring-Retaining

9

S552-050203

S552-050203-Clamp-Band

N1-16

71L1-1027

71L1-1027-. Fan Shroud Assy
