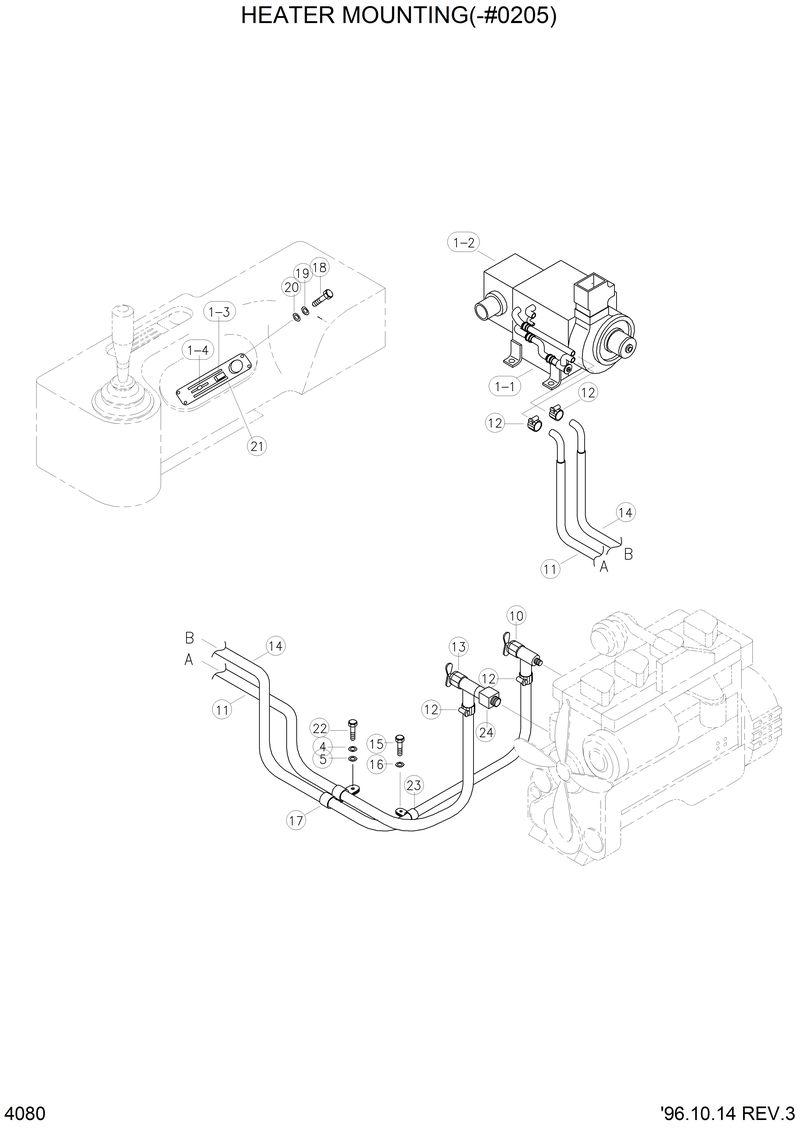

Запчасти Hyundai HL770 HEATER MOUNTING(-#0205)

1

14L1-00490

14L1-00490-Aircon Assy

1-1

14L3-00630

14L3-00630-. Evap & Heater Assy

1-4

14L3-01100

14L3-01100-. Control Assy

10

21L1-4001

21L1-4001-Valve-Cut Off

11

14L1-00540

14L1-00540-Hose

12

S572-280002

S572-280002-Clamp-Hose Wire Type

13

E127-3136

E127-3136-Valve-Cut Off

14

14L1-00550

14L1-00550-Hose

15

S017-120152

S017-120152-Bolt-Hex

16

S441-120002

S441-120002-Washer-Hardened

17

S542-320002

S542-320002-Clamp-Tube

18

S015-060152

S015-060152-Bolt-Hex

19

S411-060002

S411-060002-Washer-Spring

20

S403-062002

S403-062002-Washer-Plain

21

14L1-00672

14L1-00672-Panel-Control

22

S015-080152

S015-080152-Bolt-Hex

23

31E7-0314

31E7-0314-Clamp-Hose

24

21L1-4006

21L1-4006-Adapter

4

S411-080002

S411-080002-Washer-Spring

5

S403-082002

S403-082002-Washer-Plain

N

@

@-Not Individually Supplied

N1-2

14L3-00691

14L3-00691-. Duct Assy

N1-3

11EF-01750

11EF-01750-. Switch-Push
