Запчасти Hyundai HL770 FRONT DIFFERENTIAL GEAR(#0362-#0368)

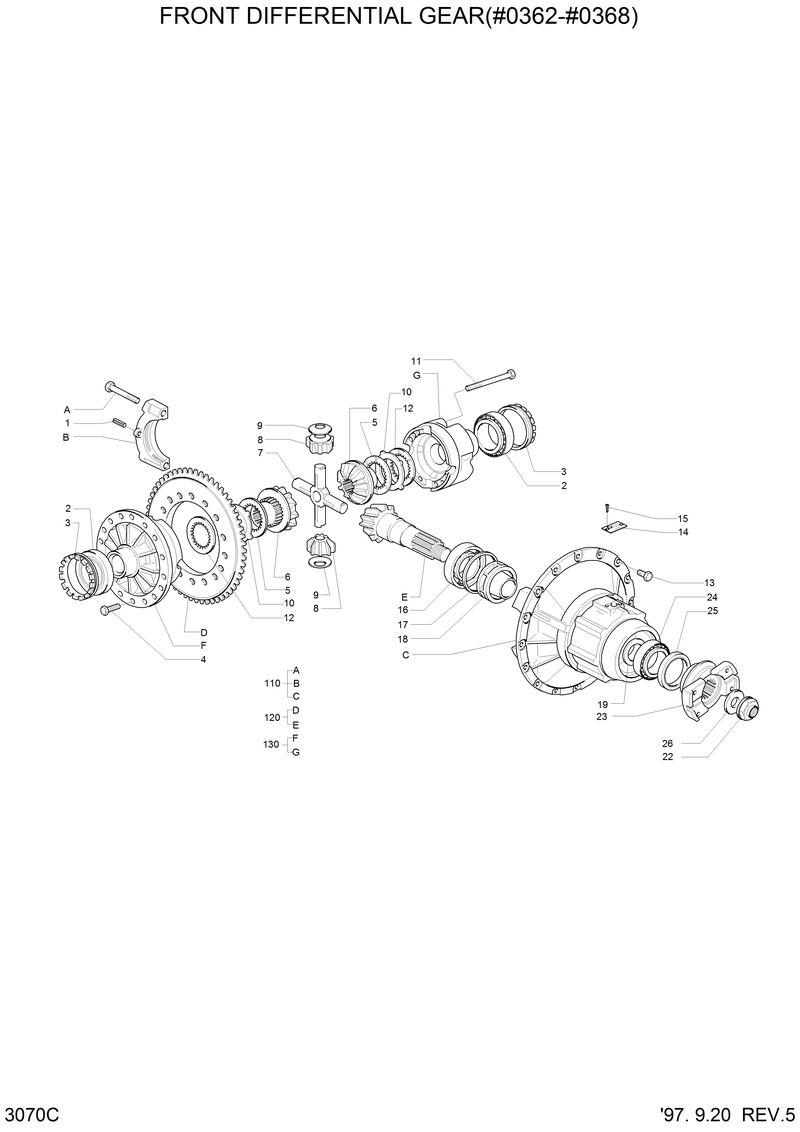

Схема запчастей Hyundai HL770 - FRONT DIFFERENTIAL GEAR(#0362-#0368)

Артикул

Название

Примечание

Количество

3122353

3122353-Shim(1.050)

3122483

3122483-Shim(1.375)

3122473

3122473-Shim(1.350)

3122463

3122463-Shim(1.325)

3122503

3122503-Shim(1.425)

3122513

3122513-Shim(1.450)

3122523

3122523-Shim(1.475)

3229313

3229313-Support Assy

3122533

3122533-Shim(1.500)

3122413

3122413-Shim(1.200)

3122493

3122493-Shim(1.400)

3122423

3122423-Shim(1.225)

3122343

3122343-Shim(1.025)

3122373

3122373-Shim(1.100)

3122363

3122363-Shim(1.075)

3122383

3122383-Shim(1.125)

3122393

3122393-Shim(1.150)

3122403

3122403-Shim(1.175)

3122453

3122453-Shim(1.300)

3122443

3122443-Shim(1.275)

3122433

3122433-Shim(1.250)

3153613

3153613-Shim-Disk(3.6)

3153623

3153623-Shim-Disk(3.7)

3122223

3122223-Shim(3.60)

3122233

3122233-Shim(3.70)

3122243

3122243-Shim(3.80)

3153633

3153633-Shim-Disk(3.8)

3122253

3122253-Shim(3.90)

3122263

3122263-Shim(4.00)

3122273

3122273-Shim(4.10)

3122293

3122293-Shim(4.30)

3122283

3122283-Shim(4.20)

3122303

3122303-Shim(4.40)

3122313

3122313-Shim(4.50)

3122333

3122333-Shim(1.000)

*

@

@-Fr Differential Gear

1

70270

70270-Pin

10

3137973

3137973-Shim-Disk(3.5)

11

70722

70722-Screw

110

3198513

3198513-Support Assy

12

3137983

3137983-Disk-Clutch

120

3147243

3147243-Shaft-Bevel Gear

13

70376

70376-Screw

130

3137923

3137923-Carrier Assy

14

3163973

3163973-Plate

15

70287

70287-Rivet

16

70360

70360-Bearing

17

3122213

3122213-Shim(3.50)

18

3194943

3194943-Pump

19

3122323

3122323-Shim(0.500)

2

70359

70359-Bearing

22

3143623

3143623-Nut

23

3190193

3190193-Flange-Complete

24

70361

70361-Bearing

25

70362

70362-Gasket

26

3134353

3134353-Washer

3

3122093

3122093-Nut

4

70549

70549-Screw

5

3137963

3137963-Disk-Clutch,Outer

6

3137953

3137953-Gear-Sun

7

3122153

3122153-Cross

8

3122143

3122143-Gear-Planetary

9

3122173

3122173-Ring-Sleeving

Выбрано товаров: 63
