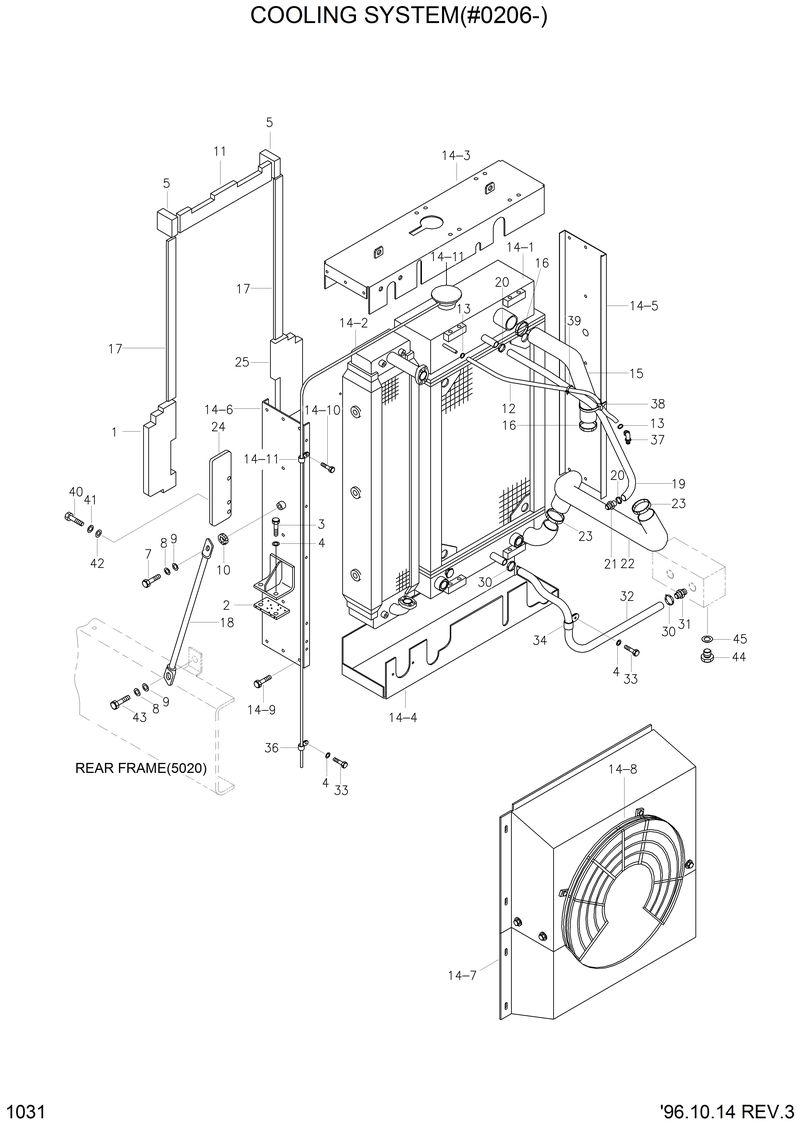

Запчасти Hyundai HL770 COOLING SYSTEM(#0206-)

P220-220106

P220-220106-Plug-Hex

1

14L1-00112

14L1-00112-Sponge

10

11L1-1005

11L1-1005-Grommet

11

14L1-00143

14L1-00143-Sponge

12

P760-011116

P760-011116-Hose-Rubber Low

13

S572-200002

S572-200002-Clamp-Hose Wire Type

14

14L1-00890

14L1-00890-Radiator Total Assy

14-1

14L1-00900

14L1-00900-. Radiator Complete

14-10

91008200

91008200-. Bolt-Asm

14-11

12101811

12101811-.. Cap-Radiator

14-11

31L3-0354

31L3-0354-. Clamp

14-2

14L1-00910

14L1-00910-. Oil Cooler Complete

14-3

14L1-00920

14L1-00920-. Support Assy-Upper

14-4

14L1-00930

14L1-00930-. Support Assy-Lower

14-5

14L1-00940

14L1-00940-. Support Assy-Side

14-6

14L1-00950

14L1-00950-. Support Assy-Side

14-7

14L1-00960

14L1-00960-. Shroud

14-8

14L1-00840

14L1-00840-. Guard-Fan

14-9

14L3-00980

14L3-00980-. Fan Guard(2) Assy

15

14L1-00161

14L1-00161-Hose-Inlet

16

S572-800002

S572-800002-Clamp-Hose Wire Type

17

14L1-01120

14L1-01120-Sponge

18

14L1-00801

14L1-00801-Deleted...

19

P710-161028

P710-161028-Hose-Makeup

2

11L1-3021

11L1-3021-Plate-Rubber

20

S572-360002

S572-360002-Clamp-Hose Wire Type

21

11L1-3016

11L1-3016-Fitting

22

14L1-01100

14L1-01100-Hose-Outlet

23

S572-850002

S572-850002-Clamp-Hose Wire Type

24

14L1-00811

14L1-00811-Plate-Screen

25

14L1-00202

14L1-00202-Sponge

3

S017-120502

S017-120502-Bolt-Hex

30

S572-240002

S572-240002-Clamp-Hose Wire Type

31

P090-100808

P090-100808-Connector

32

P710-081025

P710-081025-Hose

33

S017-120202

S017-120202-Bolt-Hex

34

31E7-0315

31E7-0315-Clamp

36

31E7-0316

31E7-0316-Clamp

37

14L1-00220

14L1-00220-Fitting

38

S552-102370

S552-102370-Clamp-Band

39

S552-050203

S552-050203-Clamp-Band

4

S441-120002

S441-120002-Washer-Hardened

40

S015-080202

S015-080202-Bolt-Hex

41

S411-080002

S411-080002-Washer-Spring

42

S403-080002

S403-080002-Washer-Plain

43

S017-100252

S017-100252-Bolt-Hex

44

P220-110104

P220-110104-Plug-Hex

45

P392-180000

P392-180000-Washer-Copper

5

14L1-01110

14L1-01110-Sponge

7

S017-100352

S017-100352-Bolt-Hex

8

S411-100002

S411-100002-Washer-Spring

9

S403-102002

S403-102002-Washer-Plain
