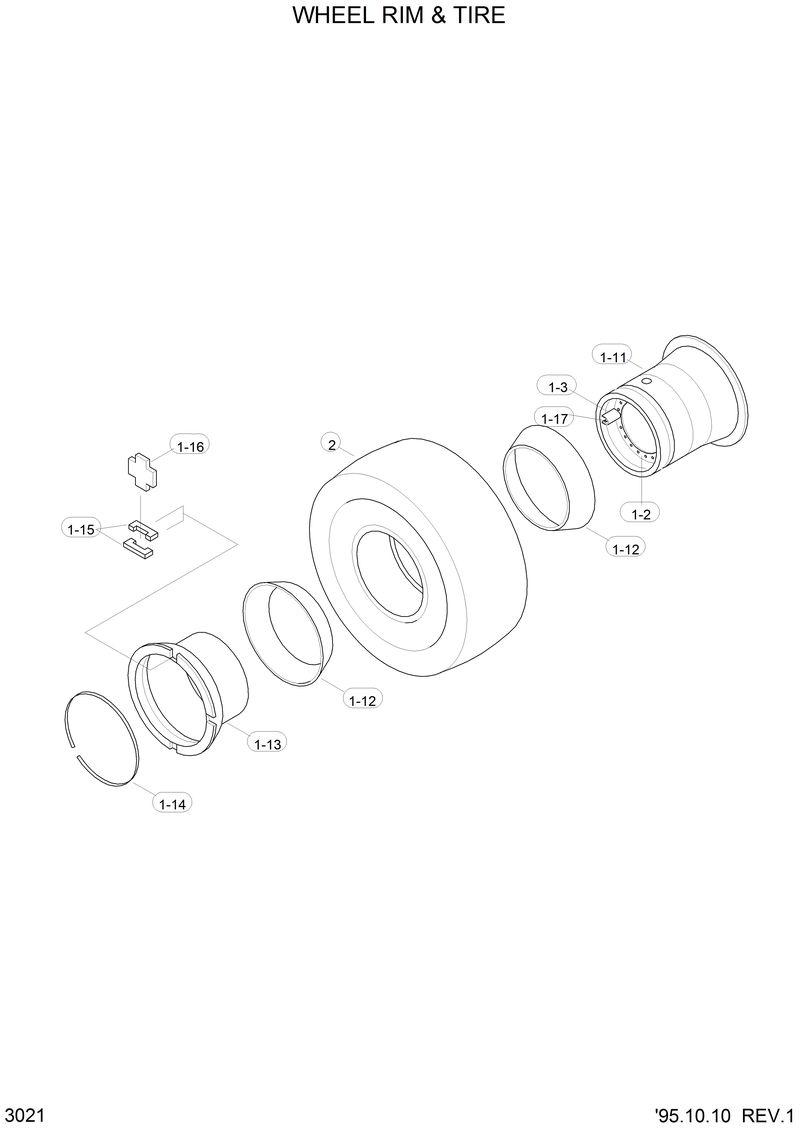

Запчасти Hyundai HL770 WHEEL RIM & TIRE

81L1-3102

81L1-3102-. Wheel Rim Assy

81L1-3102

81L1-3102-. Wheel Rim Assy

82L1-1008

82L1-1008-. Wheel Rim Assy

82L1-1008

82L1-1008-. Wheel Rim Assy

82L1-1006K

82L1-1006K-. Tire(26.5-25,20pr,L3)

84L1-00510

84L1-00510-.. Guard-Valve

*

81L1-3107

81L1-3107-Wheel Lim & Tire

*

82L1-1007

82L1-1007-Wheel Rim & Tire

1-11

RB16291

RB16291-... Rim Base

1-11

RB16318

RB16318-... Rim Base

1-12

SF160291

SF160291-... Side Flange

1-12

SF160318

SF160318-... Side Flange

1-13

TBS160318

TBS160318-... Taper Beadseat

1-14

LR160318

LR160318-... Ring-Lock

1-14

LR160291

LR160291-... Lock-Ring

1-15

DR160291

DR160291-... Drive Pocket

1-15

DR160318

DR160318-... Drive Pocket

1-16

HDP160318

HDP160318-... Heavy Driver Key

1-16

HDP160291

HDP160291-... Heavy Driver Key

1-17

TS-A567

TS-A567-... Valve

1-17

TS-A567

TS-A567-... Valve

1-3

81L1-00490

81L1-00490-.. Guard-Valve

1-3

84L1-00520

84L1-00520-.. Guard-Valve

2

81L1-3105

81L1-3105-. Tire(23.5-25,20pr,L3)

2

82L1-1006

82L1-1006-. Tire(26.5-25,20pr,L3)

N

@

@-Not Individually Supplied

N1-1

82L1-1005

82L1-1005-.. Wheel Rim

N1-1

81L1-1004

81L1-1004-.. Wheel Rim

N1-13

TBS160291

TBS160291-... Taper Beadseat

N1-2

81L1-3104

81L1-3104-.. Disc

N1-2

81L1-3104

81L1-3104-.. Disc
