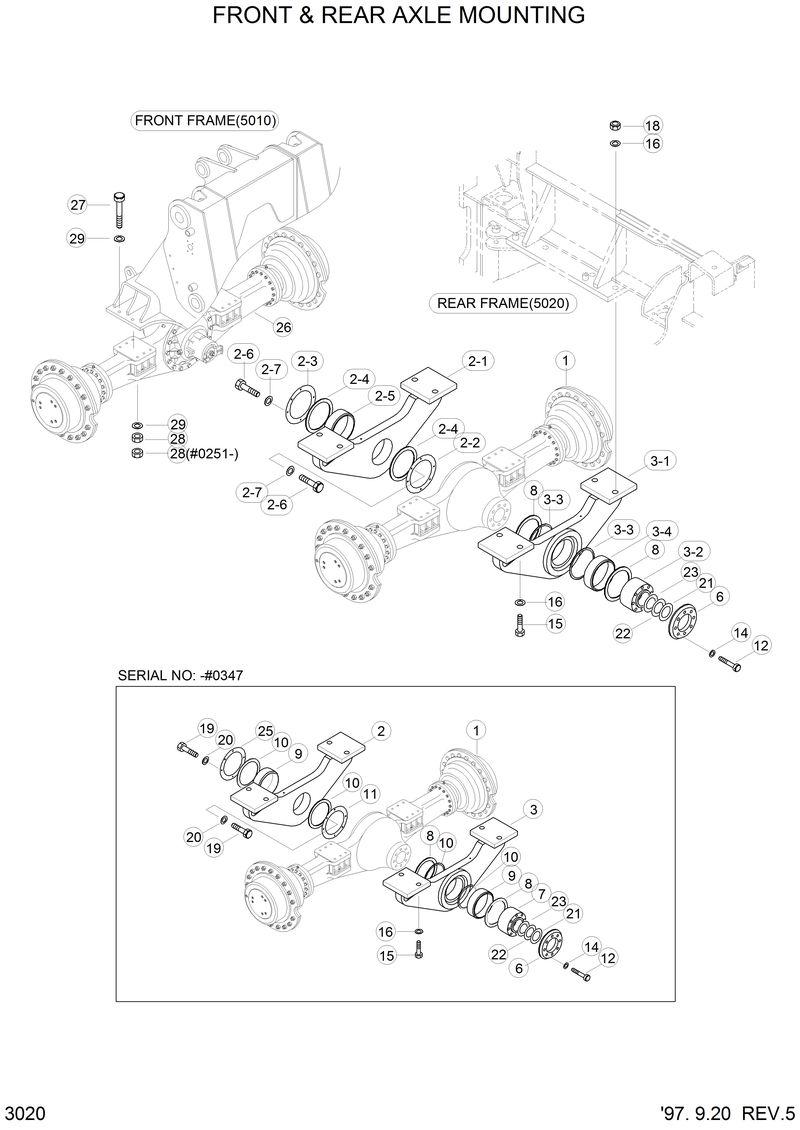

Запчасти Hyundai HL770 FRONT & REAR AXLE MOUNTING

S441-300002

S441-300002-Washer-Hardened

84L1-00590

84L1-00590-Front Axle Assy

81L1-32121

81L1-32121-Bushing

S018-272702

S018-272702-Bolt-Hex

S018-272902

S018-272902-Bolt-Hex

S018-303002

S018-303002-Bolt-Hex

84L1-00620

84L1-00620-Support Assy-Rear

84L1-00610

84L1-00610-Support Assy-Front

S441-270002

S441-270002-Washer-Hardened

S206-271002

S206-271002-Nut-Hex

S206-271002

S206-271002-Nut-Hex

S206-301002

S206-301002-Nut-Hex

84L1-00580

84L1-00580-Rear Axle Assy

1

82L1-1001

82L1-1001-Rear Axle Assy

10

61L1-2069

61L1-2069-Seal-Dust

11

81L1-32170

81L1-32170-Cover

12

S018-161502

S018-161502-Bolt-Hex

14

S441-160002

S441-160002-Washer-Hardened

15

S018-361252

S018-361252-Bolt-Hex

16

S441-360002

S441-360002-Washer-Hardened

18

S206-361002

S206-361002-Nut-Hex

19

S018-100202

S018-100202-Bolt-Hex

2

81L1-32021

81L1-32021-Support Wa

2-1

81L1-32021

81L1-32021-. Support Wa

2-2

81L1-32170

81L1-32170-. Cover

2-3

81L1-20260

81L1-20260-. Cover

2-6

S018-100202

S018-100202-. Bolt-Hex

2-7

S441-100002

S441-100002-. Washer-Hardened

20

S441-100002

S441-100002-Washer-Hardened

21

81L1-3214

81L1-3214-Shim

22

81L1-3215

81L1-3215-Shim

23

81L1-3216

81L1-3216-Shim

25

81L1-20260

81L1-20260-Cover

26

84L1-00570

84L1-00570-Front Axle Assy

27

S017-272702

S017-272702-Bolt-Hex

28

S205-271002

S205-271002-Nut-Hex

29

S411-270002

S411-270002-Washer-Spring

3

81L1-32071

81L1-32071-Support Wa

3-1

81L1-32071

81L1-32071-. Support Wa

3-2

81L1-3210

81L1-3210-. Shaft

3-3

S700-190508

S700-190508-. Dust Seal-Dkiy Type

3-3

S700-190508

S700-190508-. Dust Seal-Dkiy Type

3-4

81L1-32121

81L1-32121-. Bushing

3-4

81L1-32121

81L1-32121-. Bushing

6

81L1-3209

81L1-3209-Cover

7

81L1-3210

81L1-3210-Shaft

8

81L1-3211

81L1-3211-Disc

9

81L1-3212

81L1-3212-Bushing

N26

82L1-1002

82L1-1002-Front Axle Assy
