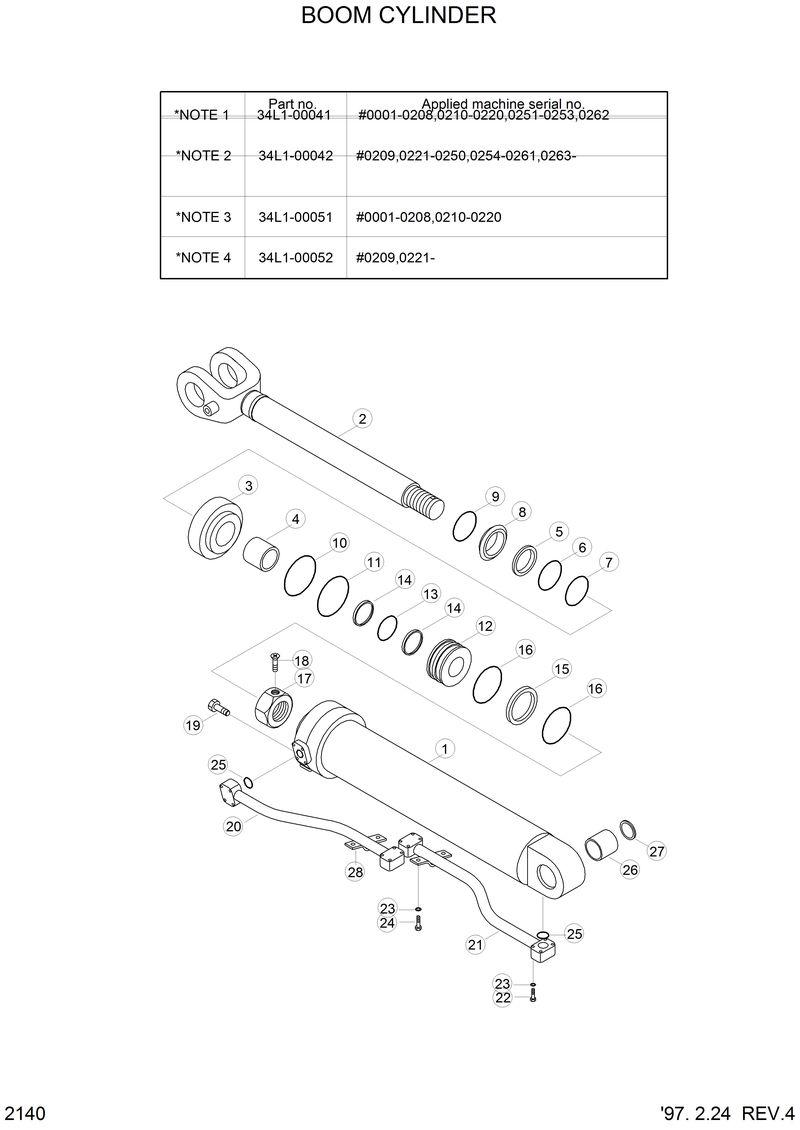

Запчасти Hyundai HL770 BOOM CYLINDER

34L1-00052

34L1-00052-Boom Cylinder-Rh

31Y2-02850

31Y2-02850-. Pipe Assy-B,Rh

31Y2-02830

31Y2-02830-. Pipe Assy-R,Rh

S109-180654

S109-180654-. Deleted...

31Y2-02701

31Y2-02701-. Tube Assy-Lh

31Y2-02710

31Y2-02710-. Tube Assy-Rh

31Y2-02711

31Y2-02711-. Tube Assy-Rh

31Y2-02801

31Y2-02801-. Gland

34L1-00051

34L1-00051-Boom Cylinder-Rh

34L1-00042

34L1-00042-Boom Cylinder-Lh

*

34L1-00041

34L1-00041-Boom Cylinder-Lh

1

31Y2-02700

31Y2-02700-. Tube Assy-Lh

12

31Y2-02810

31Y2-02810-. Piston

17

31YC-62200

31YC-62200-. Nut-Lock

18

S114-100124

S114-100124-. Screw-Set

19

S109-160654

S109-160654-. Deleted...

2

31Y2-02770

31Y2-02770-. Rod Assy

20

31Y2-02820

31Y2-02820-. Pipe Assy-R,Lh

21

31Y2-02840

31Y2-02840-. Pipe Assy-B,Lh

22

S017-100602

S017-100602-. Bolt-Hex

23

S411-100002

S411-100002-. Washer-Spring

24

S011-100152

S011-100152-. Bolt-Hex

26

31YC-13090

31YC-13090-. Bush-Pin

28

31YC-38030

31YC-38030-. Clamp-Pipe

3

31Y2-02800

31Y2-02800-. Gland

4

S731-100050

S731-100050-. Bushing

K

31Y2-02860

31Y2-02860-Seal Kit

K10

S632-170001

S632-170001-. O-Ring

K11

S642-170003

S642-170003-. Ring-Back Up

K13

S631-100004

S631-100004-. O-Ring

K14

S641-100003

S641-100003-. Ring-Back Up

K15

Y410-180000

Y410-180000-. Seal-Piston

K16

Y310-180000

Y310-180000-. Ring-Wear

K25

Y171-024004

Y171-024004-. O-Ring

K27

Y000-100100

Y000-100100-. Seal-Dust

K5

Y200-100011

Y200-100011-. Seal-Rod

K6

Y180-100020

Y180-100020-. Ring-Back Up

K7

Y240-100011

Y240-100011-. Ring-Buffer

K8

Y110-100011

Y110-100011-. Wiper-Dust

K9

Y190-114000

Y190-114000-. Ring-Snap
