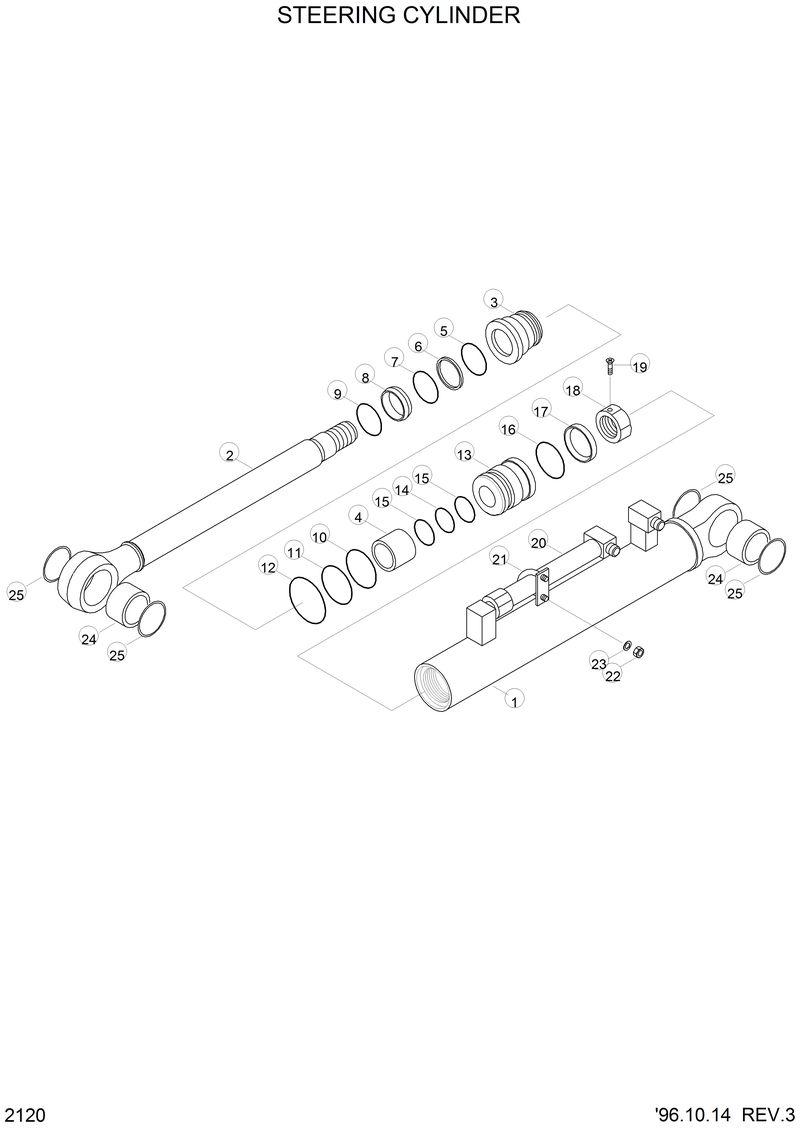

Запчасти Hyundai HL770 STEERING CYLINDER

31Y2-01730

31Y2-01730-. Tube Assy-Rh

34L1-00081

34L1-00081-Steering Cylinder-Rh

13

31Y2-01840

31Y2-01840-. Piston

18

31YC-62090

31YC-62090-. Nut-Lock

19

S114-100124

S114-100124-. Screw-Set

20

31Y2-03020

31Y2-03020-. Pipe Assy

21

S071-022230

S071-022230-. U-Bolt

22

S201-101002

S201-101002-. Nut-Hex

23

S411-100002

S411-100002-. Washer-Spring

24

Y820-050001

Y820-050001-. Bearing-Spherical

25

S602-075004

S602-075004-. Ring-Retaining C-Type

3

31Y2-01830

31Y2-01830-. Gland

4

S731-050030

S731-050030-. Bushing

K

31Y2-03030

31Y2-03030-Seal Kit

K10

S631-090004

S631-090004-. O-Ring

K11

S641-090003

S641-090003-. Ring-Back Up

K12

S632-100001

S632-100001-. O-Ring

K14

S631-050004

S631-050004-. O-Ring

K15

S641-050003

S641-050003-. Ring-Back Up

K16

Y410-100000

Y410-100000-. Seal-Piston

K17

Y310-100300

Y310-100300-. Ring-Wear

K5

Y240-050011

Y240-050011-. Ring-Buffer

K6

Y200-050011

Y200-050011-. Seal-Rod

K7

Y180-050020

Y180-050020-. Ring-Back Up

K8

Y110-050011

Y110-050011-. Wiper-Dust

K9

Y190-062000

Y190-062000-. Ring-Snap

N*

34L1-00072

34L1-00072-Steering Cylinder-Lh

N1

31Y2-01720

31Y2-01720-. Tube Assy-Lh

N2

31Y2-03000

31Y2-03000-. Rod Assy
