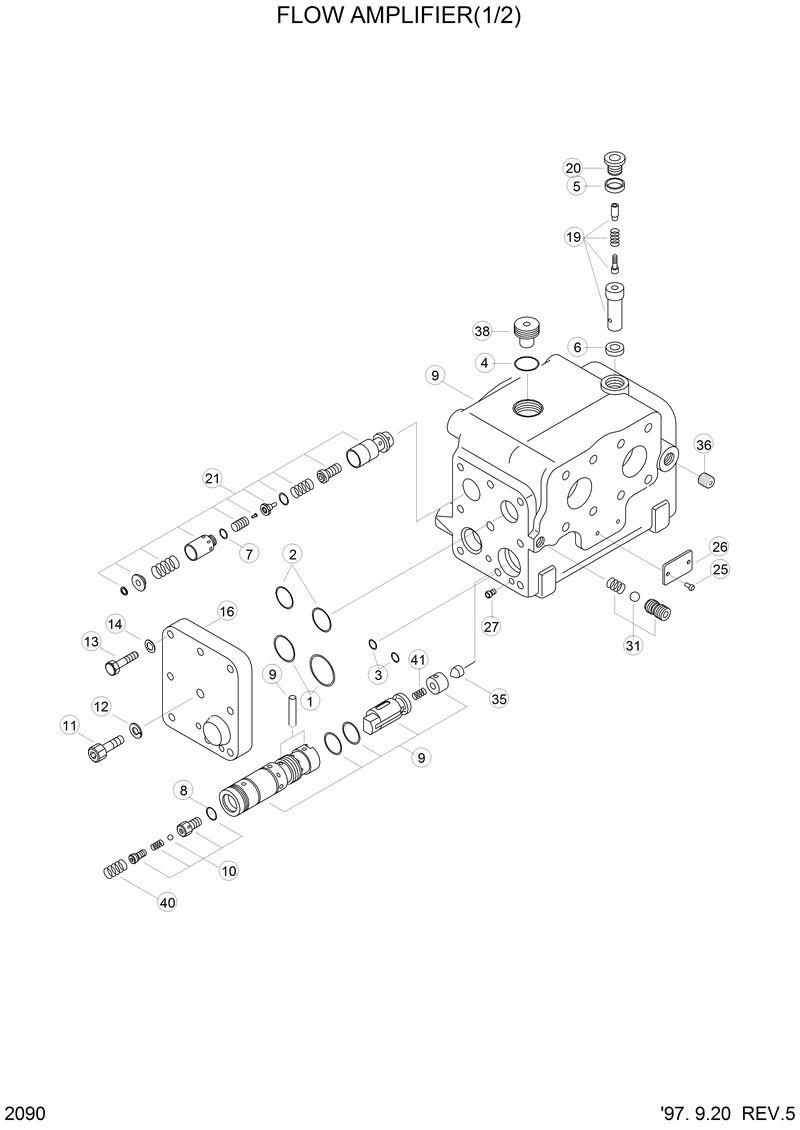

Запчасти Hyundai HL770 FLOW AMPLIFIER(1/2)

@

@-. Spool-Amplifier

34L1-00031

34L1-00031-Flow Amplifier

*

34L1-00030

34L1-00030-Flow Amplifier

10

150F0245

150F0245-. Valve-Check

11

681X1150

681X1150-. Screw

12

684X9010

684X9010-. Washer-Spring

13

681X1578

681X1578-. Screw

14

684X9062

684X9062-. Washer-Spring

16

150F0406

150F0406-. Cover-End

19

155G6202

155G6202-. Valve-Relief

20

631X2026

631X2026-. Plug

21

150F0249

150F0249-. Shock,Suction Valve

25

681Z1011

681Z1011-. Screw-Drive

26

150A2000

150A2000-. Plate-Name

31

150F0478

150F0478-. Vlv-Throttle Check

35

150F0426

150F0426-. Orifice

35

150F0426

150F0426-. Orifice

36

150F0456

150F0456-. Orifice

38

150F0506

150F0506-. Plug

40

663X1239

663X1239-. Spring

41

663X1237

663X1237-. Spring

K

150F0278

150F0278-Seal Kit

K1

633B1378

633B1378-. O-Ring

K2

633B1364

633B1364-. O-Ring

K3

633B1461

633B1461-. O-Ring

K4

633B1401

633B1401-. O-Ring

K5

684X2565

684X2565-. Washer

K6

684X2367

684X2367-. Washer

K7

633B1428

633B1428-. O-Ring

K8

633B1474

633B1474-. O-Ring

N

@

@-Not Individually Supplied

N9

@

@-. Housing
