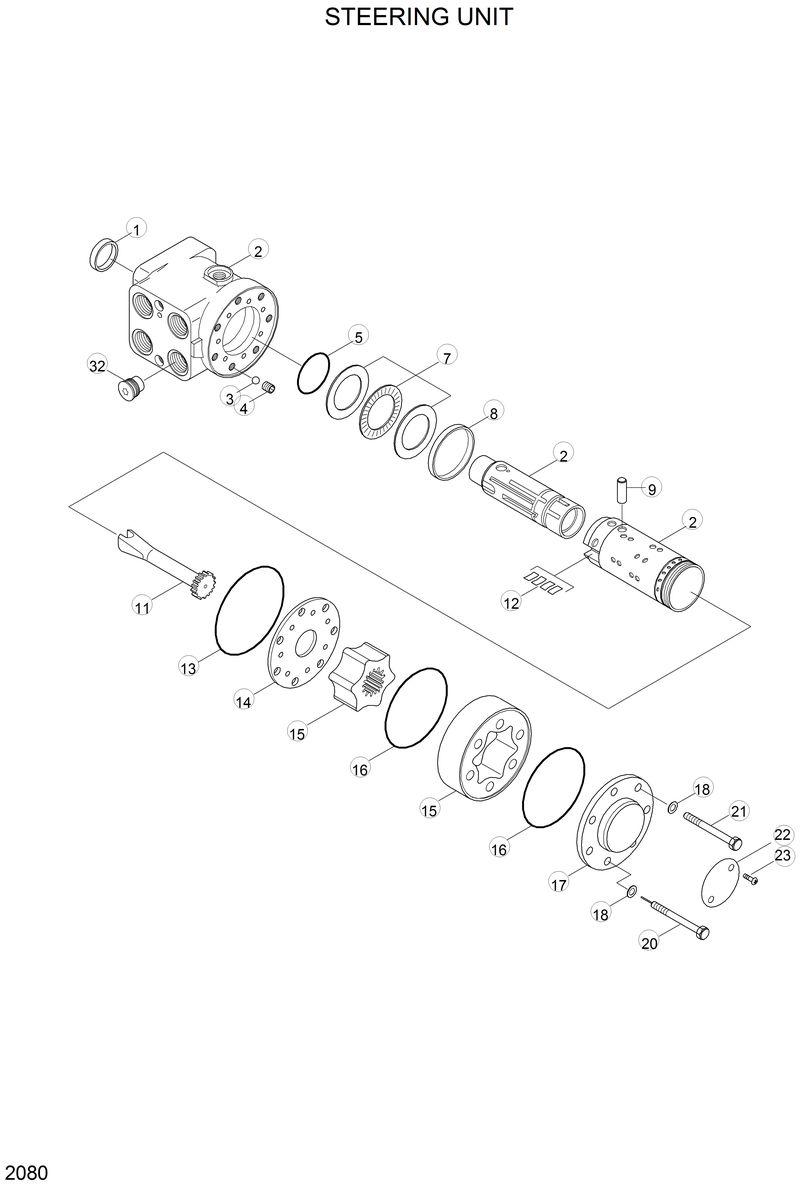

Запчасти Hyundai HL770 STEERING UNIT

@

@-Not Individually Supplied

*

31L1-00020

31L1-00020-Steering Unit

11

150-0844

150-0844-. Shaft-Cardan

12

150-4265

150-4265-. Spring Set

14

1500610

1500610-. Plate-Distributor

15

150-4186

150-4186-. Set-Gearwheel

17

150-0328

150-0328-. Cover-End

2

@

@-. Hsg,Spool,Sleeve

20

150-0324

150-0324-. Screw-Pin

21

681X1581

681X1581-. Screw

22

150A0000

150A0000-. Plate-Name

23

681Z1011

681Z1011-. Screw-Drive

3

689X1031

689X1031-. Ball

32

150N4093

150N4093-. Valve-Check

4

150-0304

150-0304-. Bushing-Thread

7

150-4246

150-4246-. Bearing Assy

8

150-0310

150-0310-. Ring

9

150-0305

150-0305-. Pin-Cross

K

150-4267

150-4267-Seal Kit

K1

633B9002

633B9002-. Seal-Dust

K13

633B1202

633B1202-. O-Ring

K16

633B1173

633B1173-. O-Ring

K18

684X2481

684X2481-. Washer

K5

633B2060

633B2060-. Seal-Lip
