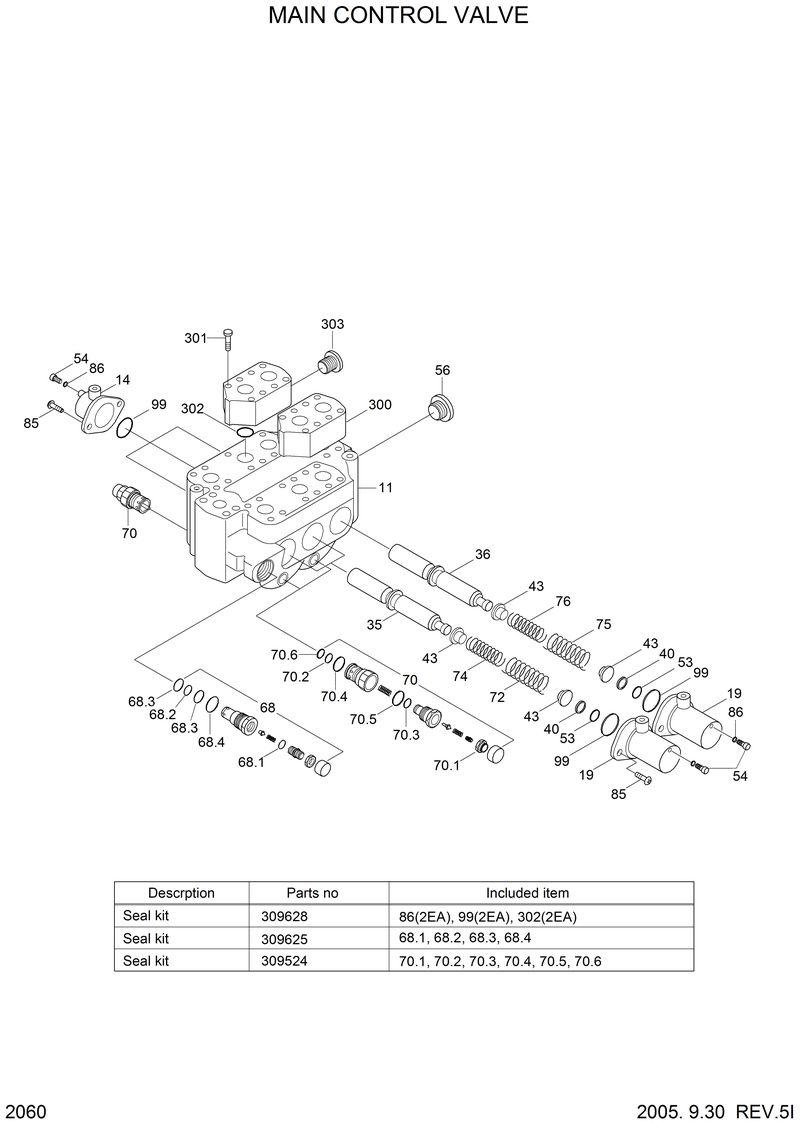

Запчасти Hyundai HL770 MAIN CONTROL VALVE

31L1-10012

31L1-10012-Mcv

*

31L1-1001

31L1-1001-Mcv

14

163642

163642-. Cover-Short

19

163640

163640-. Cover-Long

300

642589

642589-. Plate

301

011450

011450-. Bolt

303

002425

002425-. Screw-Locking

40

150767

150767-. Ring

43

150766

150766-. Retainer-Spring

53

150768

150768-. Ring-Snap

54

117640

117640-. Screw

56

023938

023938-. Screw-Locking

68

304674

304674-. Main Relief Valve

70

318088

318088-. Valve-P/Relief

72

001461

001461-. Spring-Compression

74

017938

017938-. Spring-Compression

75

012811

012811-. Spring-Compression

76

012810

012810-. Spring-Compression

85

003043

003043-. Screw

K

309625

309625-Seal Kit

K

309424

309424-Seal Kit

K

309628

309628-Seal Kit

K302

@

@-. O-Ring

K302

@

@-. O-Ring

K70.1

@

@-.. Seal-Lock Nut

K70.3

@

@-.. Seal-Piston

K70.5

@

@-.. O-Ring

K70.5

@

@-.. O-Ring

K70.5

@

@-.. O-Ring

K70.5

@

@-.. O-Ring

K70.5

@

@-.. O-Ring

K70.5

@

@-.. O-Ring

K70.6

@

@-.. Ring-Thrust

K70.6

@

@-.. Ring-Thrust

K86

@

@-. Seal-Ring

N

@

@-Not Individually Supplied

N11

@

@-. Housing

N36

@

@-. Spool

N36

@

@-. Spool
