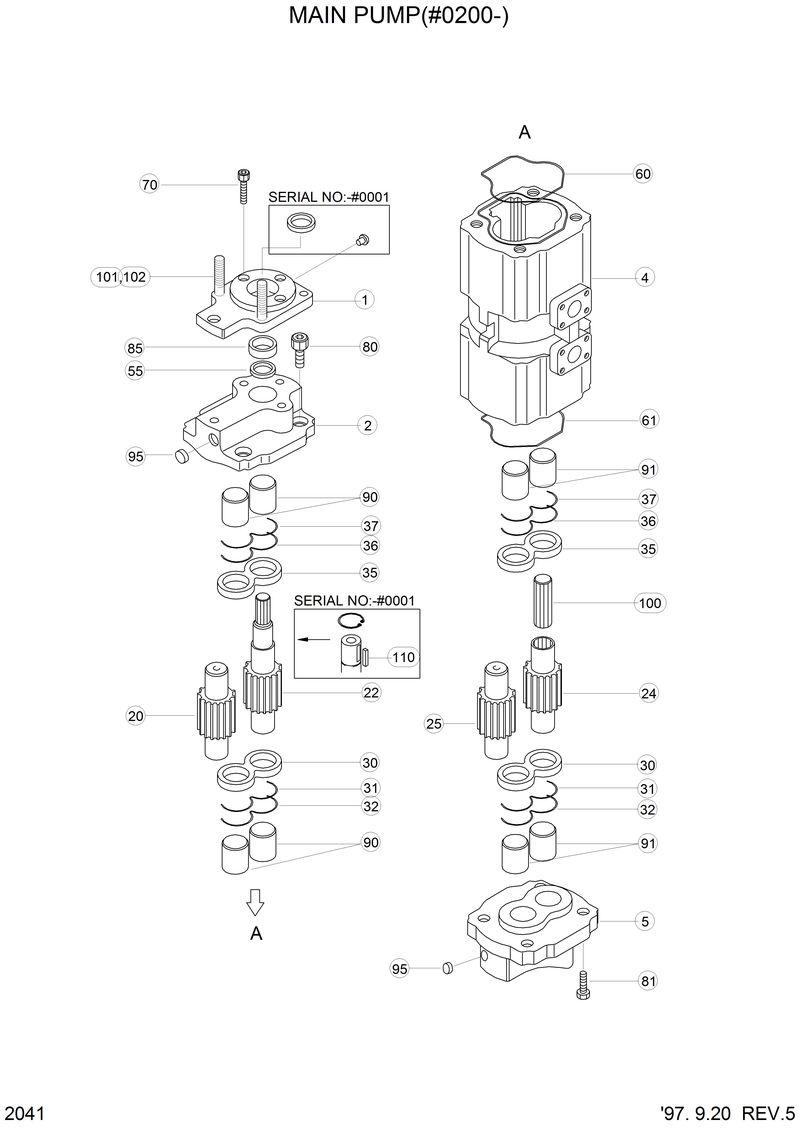

Запчасти Hyundai HL770 MAIN PUMP(#0200-)

KS15501

KS15501-Seal Kit-Dual Body

34L1-02051

34L1-02051-Main Pump

*

34L1-02050

34L1-02050-Main Pump

1

P12R5000001

P12R5000001-. Flange

100

P7407000511

P7407000511-. Coupling-Splined

101

S017-140352

S017-140352-. Bolt-Hex

102

S441-140002

S441-140002-. Washer-Hardened

2

P22R5000001

P22R5000001-. Cover-Front

22

P62R5100C01

P62R5100C01-. Gear-Drive,Fr

24

P64R5100C01

P64R5100C01-. Gear-Drive,Rr

35

P50R5000001

P50R5000001-. Plate-Wear

35

P50R5000001

P50R5000001-. Plate-Wear

37

P8991000211

P8991000211-. Seal-Back Up

37

P8991000211

P8991000211-. Seal-Back Up

4

P35R5555C01

P35R5555C01-. Body-Dual

5

P24R5000001

P24R5000001-. Cover-Rear

55

P9445000101

P9445000101-. Shaft Seal-Viton

61

P9119000651

P9119000651-. O-Ring

61

P9119000651

P9119000651-. O-Ring

70

P9235000141

P9235000141-. Screw-Cap

81

P9646000061

P9646000061-. Screw-Socket Hd Cap

81

P9646000061

P9646000061-. Screw-Socket Hd Cap

85

P7275001481

P7275001481-. Ring-Location

91

@

@-. Bearing-Plain

91

@

@-. Bearing-Plain

95

P9443000091

P9443000091-. Seal

N20

P604R100C01

P604R100C01-. Gear-Driven

N25

P60R5100C01

P60R5100C01-. Gear-Driven

N36

P8908000261

P8908000261-. Seal-Moulded

N36

P8908000261

P8908000261-. Seal-Moulded
