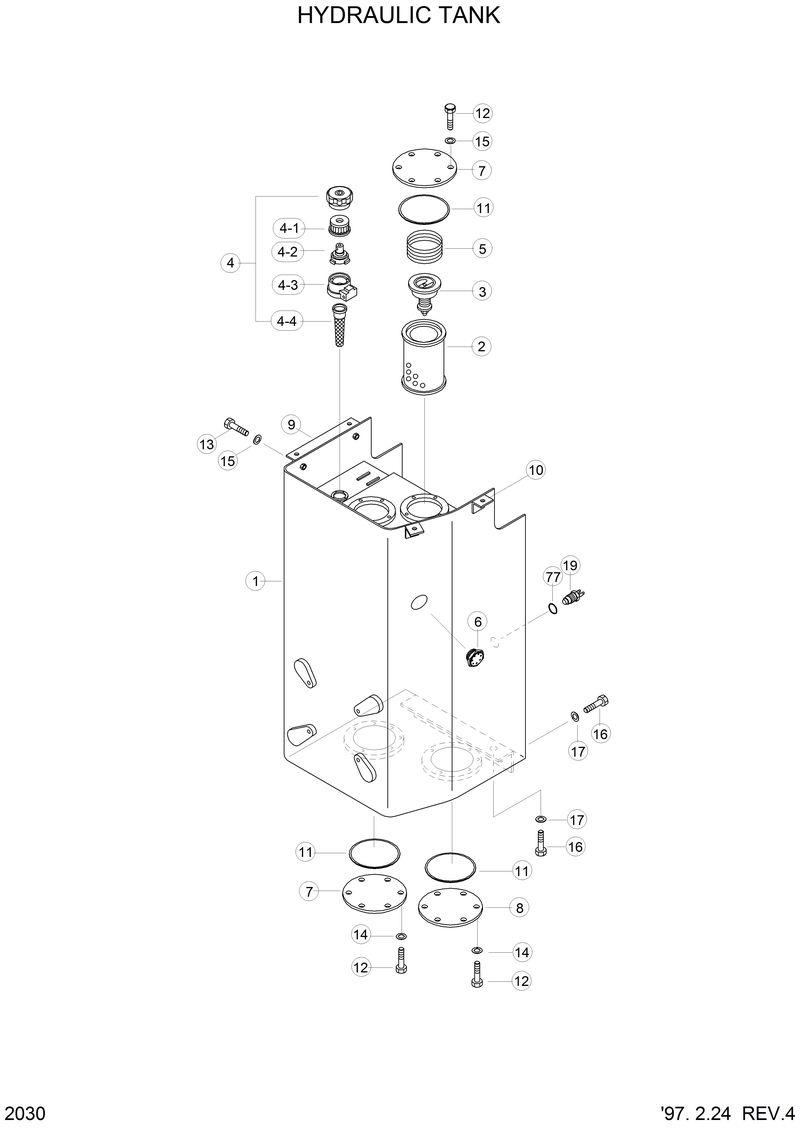

Запчасти Hyundai HL770 HYDRAULIC TANK

34L1-01723

34L1-01723-Hyd Tank Assy

S632-165001

S632-165001-. O-Ring

S632-165001

S632-165001-. O-Ring

S017-100252

S017-100252-. Bolt-Hex

S017-100252

S017-100252-. Bolt-Hex

34L1-00565

34L1-00565-. Hyd Tank Wa

S441-100002

S441-100002-. Washer-Hardened

34L1-01726

34L1-01726-Hyd Tank Assy

34L1-01725

34L1-01725-Hyd Tank Assy

34L1-01724

34L1-01724-Hyd Tank Assy

34L1-00551

34L1-00551-. Plate

34L1-00541

34L1-00541-. Plate

34L1-00566

34L1-00566-. Hyd Tank Wa

34L1-00567

34L1-00567-. Hyd Tank Wa

31E3-4526

31E3-4526-. Cover

31E3-4526

31E3-4526-. Cover

*

34L1-01722

34L1-01722-Hyd Tank Assy

1

34L1-00564

34L1-00564-. Hyd Tank Wa

10

34L1-00550

34L1-00550-. Plate

13

S017-120302

S017-120302-. Bolt-Hex

14

S411-100002

S411-100002-. Washer-Spring

15

S441-120002

S441-120002-. Washer-Hardened

16

S017-200402

S017-200402-Bolt-Hex

17

S441-200004

S441-200004-Washer-Hardened

19

21E3-5002

21E3-5002-Switch-Water Temp

2

31L1-4041

31L1-4041-. Element Assy

3

E131-0256

E131-0256-. Valve-Bypass

4

E131-0253

E131-0253-. Air Breather

4-1

31E1-10380

31E1-10380-.. Element-Filter

4-2

31E1-10370

31E1-10370-.. Bayonet Assy

4-3

31E1-10350

31E1-10350-.. Casing

4-4

31E1-10360

31E1-10360-.. Strainer

5

E131-0220

E131-0220-. Spring

6

31L1-4047

31L1-4047-. Sight Gauge

77

31E7-0179

31E7-0179-O-Ring

8

34L1-01460

34L1-01460-. Cover Assy

9

34L1-00540

34L1-00540-. Plate
