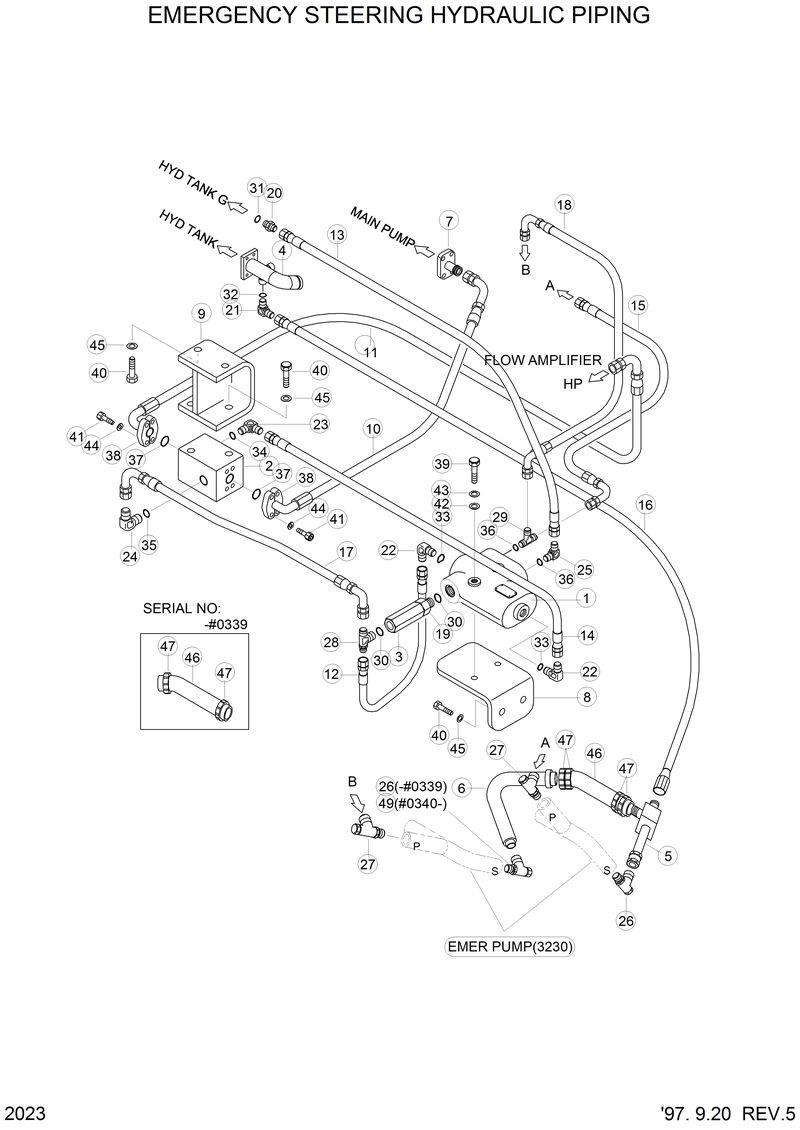

Запчасти Hyundai HL770 EMERGENCY STEERING HYDRAULIC PIPING
№
Артикул
Название
Примечание
Количество
34L1-02352
34L1-02352-Hose-Rubber
P620-124011
P620-124011-Hose Assy-Thd 0x90
34L1-02341
34L1-02341-Pipe Wa
34L1-02342
34L1-02342-Pipe Wa
P770-124015
P770-124015-Hose Assy-Thd 90x45
34L1-02262
34L1-02262-Pipe Wa
31L1-02010
31L1-02010-Fitting
31L1-02010
31L1-02010-Fitting
34L1-02351
34L1-02351-Hose-Rubber
S520-040000
S520-040000-Clamp-Hose
S520-040000
S520-040000-Clamp-Hose
34L1-02261
34L1-02261-Pipe Wa
1
34L1-02030
34L1-02030-Priority Valve
10
34L1-02300
34L1-02300-Hose Assy-Thd
11
34L1-02310
34L1-02310-Hose Assy-Thd
12
P600-047008
P600-047008-Hose Assy-Thd
13
P600-164031
P600-164031-Hose Assy-Thd
15
P620-124009
P620-124009-Hose Assy-Thd 0x90
16
P620-164017
P620-164017-Hose Assy-Thd
17
P770-085008
P770-085008-Hose Assy-Thd
18
P770-124012
P770-124012-Hose Assy-Thd 90x45
19
34L1-02330
34L1-02330-Connector
2
34L1-02240
34L1-02240-Check Valve
20
P010-110005
P010-110005-Connector
21
P020-110005
P020-110005-Elbow-90
22
P020-310001
P020-310001-Elbow-90
23
P020-310002
P020-310002-Elbow-90
24
P020-310005
P020-310005-Elbow-90
25
P020-310009
P020-310009-Elbow-90
27
31L1-02020
31L1-02020-Fitting
29
34L1-02320
34L1-02320-Tee
3
34L3-01310
34L3-01310-Check Valve
30
S631-018001
S631-018001-O-Ring
32
S631-029001
S631-029001-O-Ring
33
S611-009001
S611-009001-O-Ring
34
S611-012001
S611-012001-O-Ring
36
S611-023001
S611-023001-O-Ring
37
31L1-3029
31L1-3029-O-Ring
39
S015-080802
S015-080802-Bolt-Hex
4
34L1-02250
34L1-02250-Pipe Wa
41
S107-100304
S107-100304-Bolt-Socket
42
S403-081002
S403-081002-Washer-Plain
43
S411-080002
S411-080002-Washer-Spring
44
S411-100002
S411-100002-Washer-Spring
45
S441-120002
S441-120002-Washer-Hardened
46
34L1-02350
34L1-02350-Hose-Rubber
49
34L1-02560
34L1-02560-Fitting
5
34L1-02260
34L1-02260-Pipe Wa
6
34L1-02340
34L1-02340-Pipe Wa
7
34L1-02270
34L1-02270-Flange Wa
8
34L1-02280
34L1-02280-Plate Wa
9
34L1-02290
34L1-02290-Plate Wa
N28
P310-080408
P310-080408-Tee
Выбрано товаров: 58
