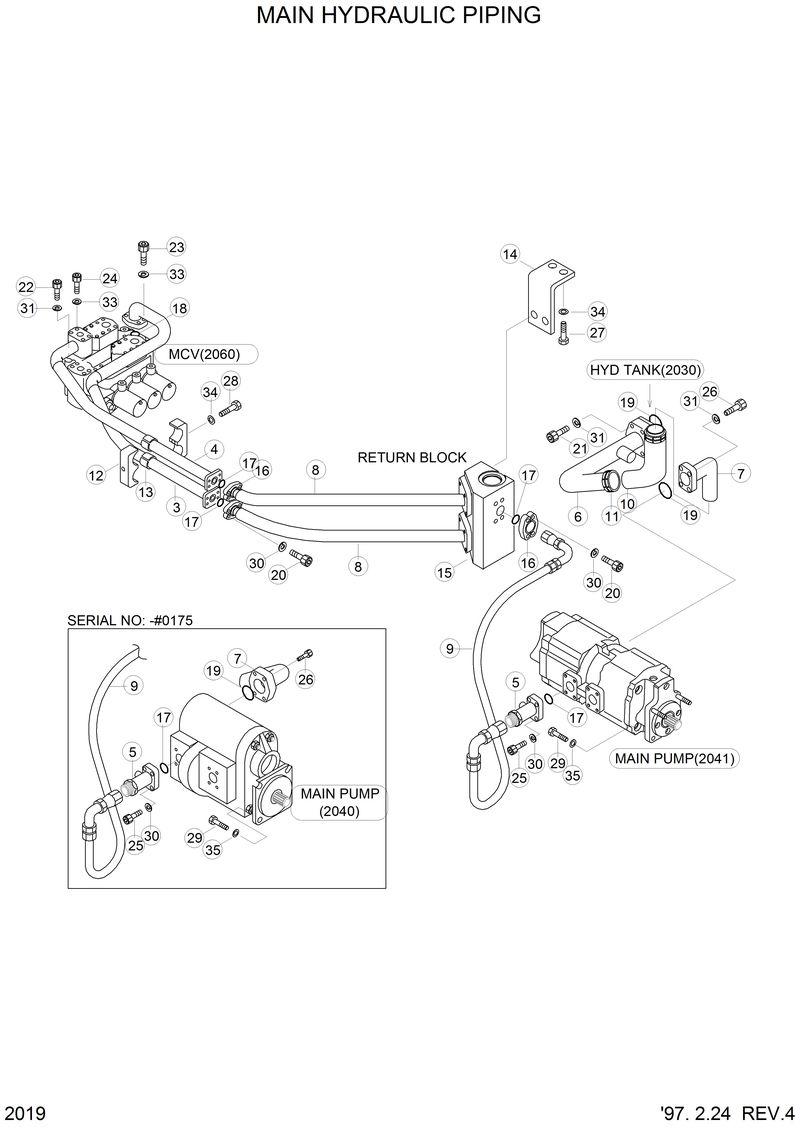

Запчасти Hyundai HL770 MAIN HYDRAULIC PIPING

S441-140002

S441-140002-Washer-Hardened

S017-140352

S017-140352-Bolt-Hex

S017-140352

S017-140352-Bolt-Hex

S017-120402

S017-120402-Bolt-Hex

S411-120002

S411-120002-Washer-Spring

34L1-02130

34L1-02130-Pipe Wa

S441-140002

S441-140002-Washer-Hardened

S441-140002

S441-140002-Washer-Hardened

S411-120002

S411-120002-Washer-Spring

10

34L1-01380

34L1-01380-Hose-Rubber

11

S520-085000

S520-085000-Clamp-Hose

12

34L1-01011

34L1-01011-Clamp

13

S690-043100

S690-043100-Grommet

14

34L1-01390

34L1-01390-Plate

15

34L1-01401

34L1-01401-Block

16

P173-200106

P173-200106-Flange-Split

17

31L1-0059

31L1-0059-O-Ring

18

31L1-0057

31L1-0057-O-Ring

19

34L1-01410

34L1-01410-O-Ring

20

S107-100304

S107-100304-Bolt-Socket

21

S107-120354

S107-120354-Bolt-Socket

22

S107-120904

S107-120904-Deleted...

23

S107-160554

S107-160554-Deleted...

24

S107-160804

S107-160804-Deleted...

25

34L1-01420

34L1-01420-Bolt-Socket

26

34L1-01430

34L1-01430-Bolt-Socket

27

S017-120302

S017-120302-Bolt-Hex

28

S017-120802

S017-120802-Bolt-Hex

29

S017-140302

S017-140302-Bolt-Hex

3

34L1-01291

34L1-01291-Pipe Wa

30

S411-100002

S411-100002-Washer-Spring

33

S411-160002

S411-160002-Washer-Spring

34

S441-120002

S441-120002-Washer-Hardened

4

34L1-01301

34L1-01301-Pipe Wa

5

34L1-02390

34L1-02390-Pipe Wa

6

34L1-01321

34L1-01321-Pipe Wa

7

34L1-01330

34L1-01330-Pipe Wa

8

34L1-01350

34L1-01350-Hose Assy-Thd

9

34L1-02410

34L1-02410-Hose Assy-Thd
