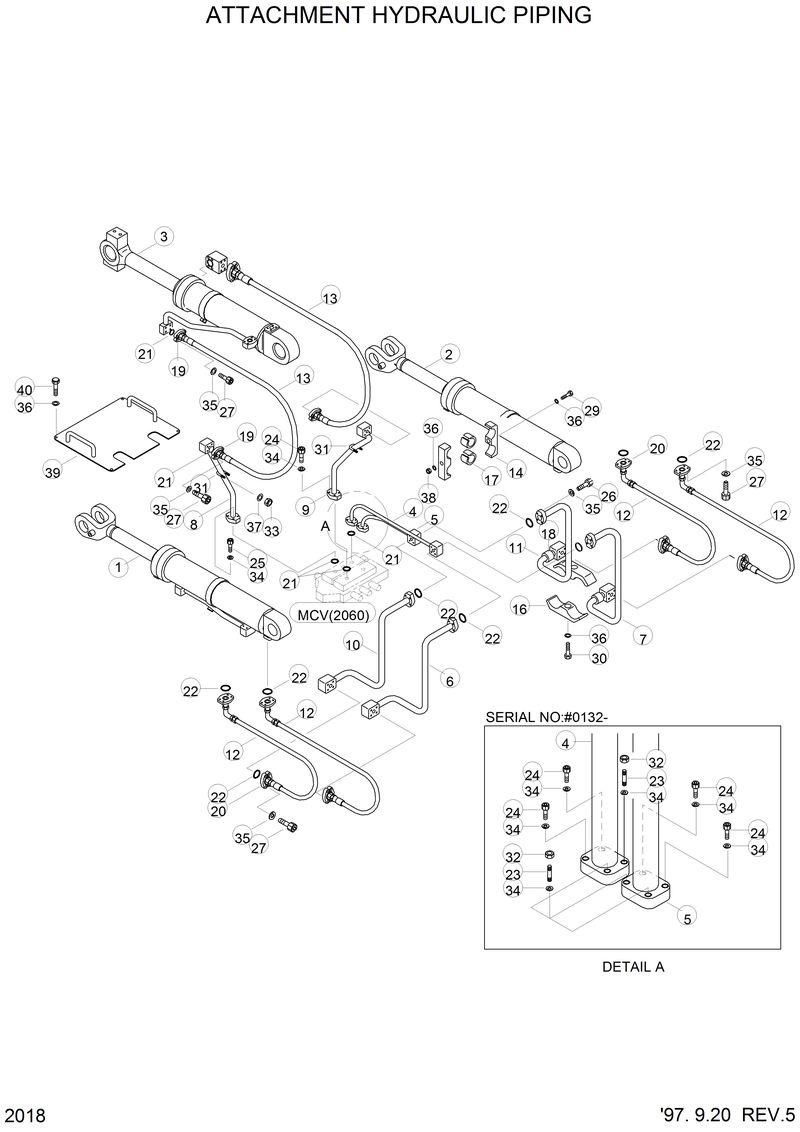

Запчасти Hyundai HL770 ATTACHMENT HYDRAULIC PIPING

34L1-00042

34L1-00042-Boom Cylinder-Lh

S061-314100

S061-314100-Bolt-Stud

S061-314100

S061-314100-Bolt-Stud

34L1-00052

34L1-00052-Boom Cylinder-Rh

S107-141254

S107-141254-Deleted...

S107-141254

S107-141254-Deleted...

S205-141002

S205-141002-Nut-Hex

S205-141002

S205-141002-Nut-Hex

S275-100002

S275-100002-Nut-Self Locking

1

34L1-00041

34L1-00041-Boom Cylinder-Lh

10

34L1-00891

34L1-00891-Pipe Wa-Lh

11

34L1-00901

34L1-00901-Pipe Wa-Rh

12

P701-164326

P701-164326-Hose Assy

13

P681-204324

P681-204324-Hose Assy

14

34L1-01011

34L1-01011-Clamp

16

34L1-01001

34L1-01001-Clamp

17

S690-043100

S690-043100-Grommet

18

S690-034100

S690-034100-Grommet

19

P173-200106

P173-200106-Flange-Split

2

34L1-00051

34L1-00051-Boom Cylinder-Rh

20

P173-160104

P173-160104-Flange-Split

21

31L1-0059

31L1-0059-O-Ring

22

31L1-3029

31L1-3029-O-Ring

25

S107-140454

S107-140454-Deleted...

26

S107-100454

S107-100454-Deleted...

27

S107-100304

S107-100304-Bolt-Socket

29

S017-121002

S017-121002-Bolt-Hex

3

34L1-00061

34L1-00061-Bucket Cylinder

30

S017-120602

S017-120602-Bolt-Hex

31

34L1-01940

34L1-01940-U-Bolt

33

S205-101002

S205-101002-Nut-Hex

34

S411-140002

S411-140002-Washer-Spring

35

S411-100002

S411-100002-Washer-Spring

36

S441-120002

S441-120002-Washer-Hardened

37

S441-100002

S441-100002-Washer-Hardened

38

S205-121002

S205-121002-Nut-Hex

39

34L1-01031

34L1-01031-Plate Wa

4

34L1-00091

34L1-00091-Pipe Wa

40

S017-120252

S017-120252-Bolt-Hex

5

34L1-00101

34L1-00101-Pipe Wa

6

34L1-00111

34L1-00111-Pipe Wa-Lh

7

34L1-00121

34L1-00121-Pipe Wa-Rh

8

34L1-00861

34L1-00861-Pipe Wa

9

34L1-00871

34L1-00871-Pipe Wa
