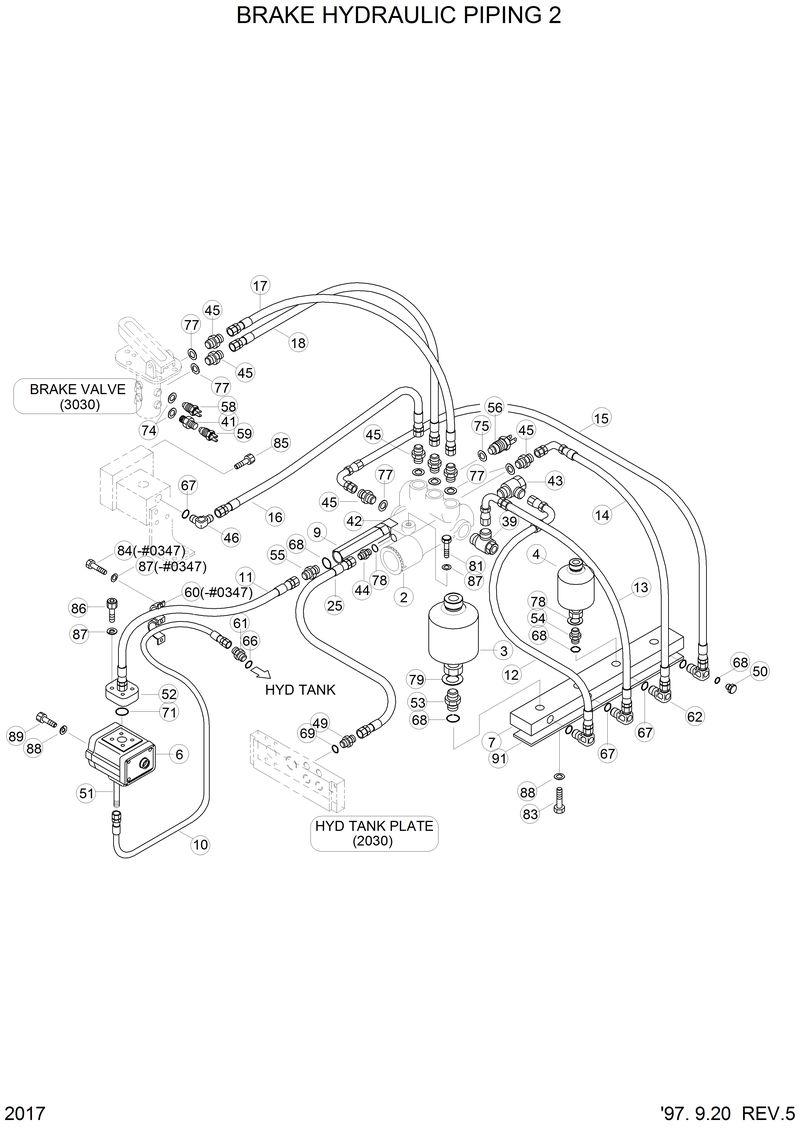

Запчасти Hyundai HL770 BRAKE HYDRAULIC PIPING 2

S411-080002

S411-080002-Washer-Spring

34L1-01551

34L1-01551-Pipe Wa

S411-080002

S411-080002-Washer-Spring

P620-085062

P620-085062-Hose Assy-Thd 0x90

10

P620-122040

P620-122040-Hose Assy-Thd 0x90

11

P620-083062

P620-083062-Hose Assy-Thd 0x90

12

P620-063012

P620-063012-Hose Assy-Thd 0x90

13

P620-063009

P620-063009-Hose Assy-Thd 0x90

14

P620-063010

P620-063010-Hose Assy-Thd 0x90

15

P620-063015

P620-063015-Hose Assy-Thd 0x90

16

P620-063028

P620-063028-Hose Assy-Thd 0x90

17

34L1-00610

34L1-00610-Hose Assy-Thd

18

34L1-00620

34L1-00620-Hose Assy-Thd

2

81L1-0002

81L1-0002-Cut-Off Valve

25

P600-081030

P600-081030-Hose Assy-Thd

3

81L1-0003

81L1-0003-Accumulator

39

P350-220005

P350-220005-Fitting-Banjo

4

81L1-0004

81L1-0004-Accumulator

41

81L1-0033

81L1-0033-Reducer

42

31L1-0138

31L1-0138-Fitting-Banjo

43

34L1-00880

34L1-00880-Fitting-Banjo

44

P010-220008

P010-220008-Connector

45

P010-220005

P010-220005-Connector

46

P030-110011

P030-110011-Elbow-45

49

P010-110004

P010-110004-Connector

50

P220-110102

P220-110102-Plug

51

34L1-01550

34L1-01550-Pipe Wa

52

34L1-00330

34L1-00330-Flange Wa

53

81L1-0031

81L1-0031-Fitting

54

31E3-3099

31E3-3099-Connector

55

P010-110014

P010-110014-Connector

56

31L1-0095

31L1-0095-Switch-Pressure

58

21L3-0001

21L3-0001-Switch-Pressure

59

31L1-0094

31L1-0094-Switch-Pressure

6

31L1-1008

31L1-1008-Brake Pump

60

34L1-01580

34L1-01580-Clamp

61

P010-120005

P010-120005-Connector

62

34L1-00350

34L1-00350-Elbow

66

S631-024001

S631-024001-O-Ring

67

S631-011001

S631-011001-O-Ring

68

S631-014001

S631-014001-O-Ring

69

S631-018001

S631-018001-O-Ring

7

34L1-00300

34L1-00300-Block

71

S632-025001

S632-025001-O-Ring

74

P392-100000

P392-100000-Washer-Copper

75

P392-120000

P392-120000-Washer-Copper

77

P392-160000

P392-160000-Washer-Copper

78

P392-180000

P392-180000-Washer-Copper

79

P392-220000

P392-220000-Washer-Copper

81

S015-080752

S015-080752-Bolt-Hex

83

S017-100252

S017-100252-Bolt-Hex

84

S015-080202

S015-080202-Bolt-Hex

85

S105-050502

S105-050502-Bolt-Socket

86

34L1-01590

34L1-01590-Bolt-Socket

88

S411-100002

S411-100002-Washer-Spring

89

S107-100302

S107-100302-Bolt-Socket

9

31L1-0139

31L1-0139-Line Filter

91

34L1-02370

34L1-02370-Rubber

N52

34L1-00331

34L1-00331-Flange Wa
