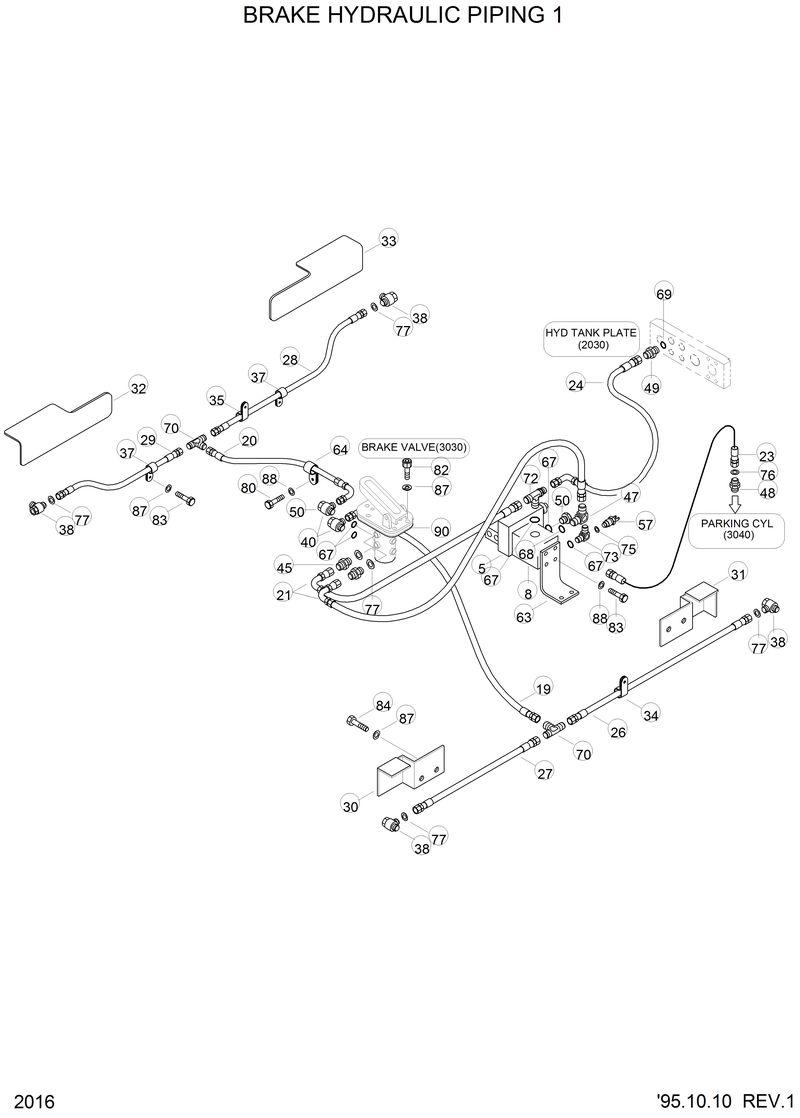

Запчасти Hyundai HL770 BRAKE HYDRAULIC PIPING 1

19

34L1-00630

34L1-00630-Hose Assy-Thd

20

P623-063040

P623-063040-Hose Assy-Thd 0x90

21

P620-063030

P620-063030-Hose Assy-Thd 0x90

23

P620-043027

P620-043027-Hose Assy-Thd 0x90

24

P620-081035

P620-081035-Hose Assy-Thd,0x90

26

34L1-01890

34L1-01890-Tube Assy

27

34L1-01900

34L1-01900-Tube Assy

28

34L1-01560

34L1-01560-Tube Assy

29

34L1-01570

34L1-01570-Tube Assy

30

31L1-0129

31L1-0129-Plate

31

31L1-0130

31L1-0130-Plate

32

31L1-0127

31L1-0127-Plate

33

31L1-0128

31L1-0128-Plate

34

31L1-02250

31L1-02250-Clamp

35

31L1-02240

31L1-02240-Clamp

37

31L1-02220

31L1-02220-Clamp

40

31L1-02180

31L1-02180-Fitting-Banjo

45

P010-220005

P010-220005-Connector

47

P020-110002

P020-110002-Elbow-90

48

P010-220004

P010-220004-Connector

49

P010-110004

P010-110004-Connector

5

E131-0175

E131-0175-Valve-Solenoid

50

P220-110102

P220-110102-Plug

57

31L1-0093

31L1-0093-Switch-Pressure

63

34L1-00852

34L1-00852-Plate

64

34L1-01051

34L1-01051-Clamp

67

S631-011001

S631-011001-O-Ring

68

S631-014001

S631-014001-O-Ring

69

S631-018001

S631-018001-O-Ring

70

31L4-01131

31L4-01131-Tee

72

34L1-00360

34L1-00360-Tee

73

34L1-00370

34L1-00370-Elbow

75

P392-120000

P392-120000-Washer-Copper

76

P392-140000

P392-140000-Washer-Copper

77

P392-160000

P392-160000-Washer-Copper

8

34L1-00311

34L1-00311-Block

80

S017-100202

S017-100202-Bolt-Hex

82

S015-080302

S015-080302-Bolt-Hex

83

S017-100252

S017-100252-Bolt-Hex

84

S015-080202

S015-080202-Bolt-Hex

87

S411-080002

S411-080002-Washer-Spring

88

S411-100002

S411-100002-Washer-Spring

90

74L3-00530

74L3-00530-Pad-Rubber

N38

81L1-00601

81L1-00601-Fitting-Banjo
