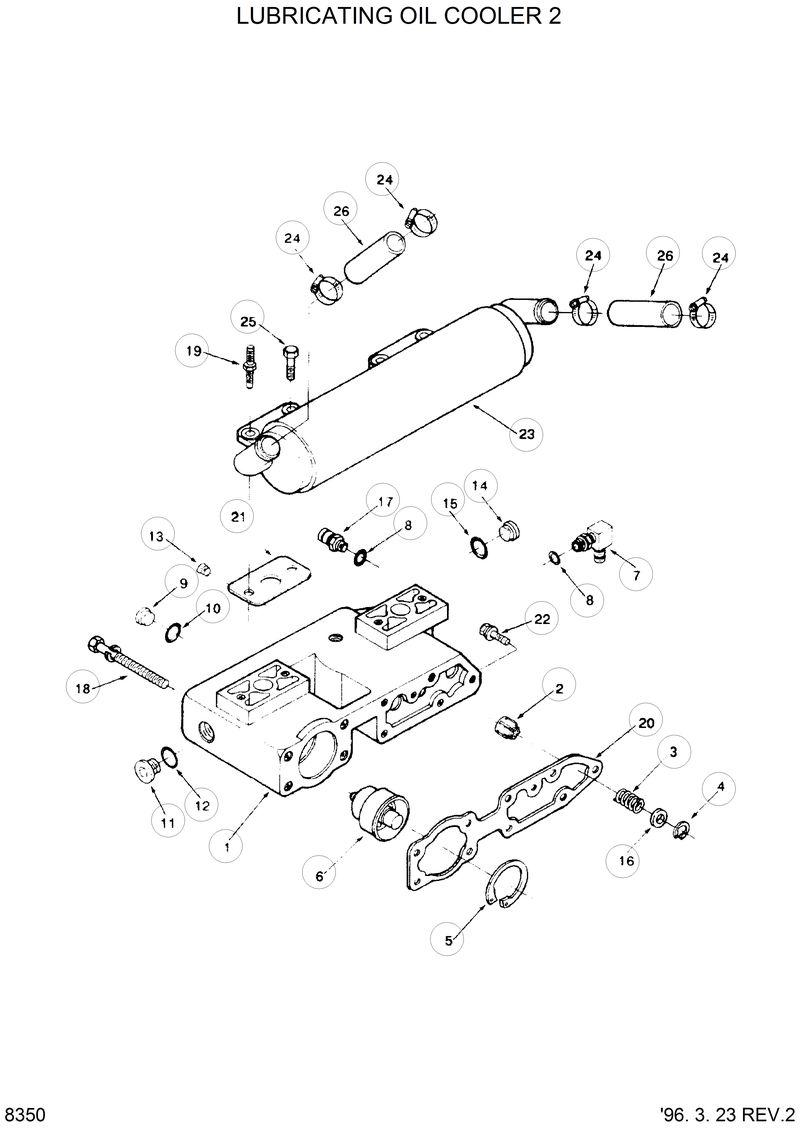

Запчасти Hyundai HL770 LUBRICATING OIL COOLER 2

*

3895946

3895946-Lub Oil Filter Assy

*

3046202

3046202-. Plug-Threaded

*

3040815

3040815-. Plug-Threaded

*

3202101

3202101-. Plug-Threaded

1

3895147

3895147-. Head-Lub Oil Filter

10

3046201

3046201-.. Seal/O-Ring

11

3040816

3040816-.. Plug-Threaded

12

3040817

3040817-.. Seal/O-Ring

13

3008466

3008466-. Plug-Pipe

15

3046943

3046943-.. Seal/O-Ring

16

3882585

3882585-. Plug-Expansion

17

3042619

3042619-. Nipple-Coupling

18

3892106

3892106-Screw-Captive W/Cap

19

3883394

3883394-Screw-Hex Hd Cap

2

3820320

3820320-. Plunger-Bypass Vlv

20

3820629

3820629-Gasket-Filter Head

21

3892625

3892625-Gasket

22

3819448

3819448-Screw-Captive W/Cap

23

3882324

3882324-Cooler-Lub Oil

24

3895734

3895734-Clamp-Hose

25

3034836

3034836-Screw-Hex Hd Cap

26

3820665

3820665-Hose-Plain

3

3882586

3882586-. Spring-Compression

4

3820631

3820631-. Ring-Retaining

5

3820782

3820782-. Ring-Retaining

6

3059408

3059408-. Thermostat

7

3819616

3819616-. Nipple-Coupling

8

3037537

3037537-.. Seal/O-Ring

8

3037537

3037537-.. Seal/O-Ring

9

3040810

3040810-.. Plug-Threaded

N14

3050897

3050897-.. Plug-Threaded
