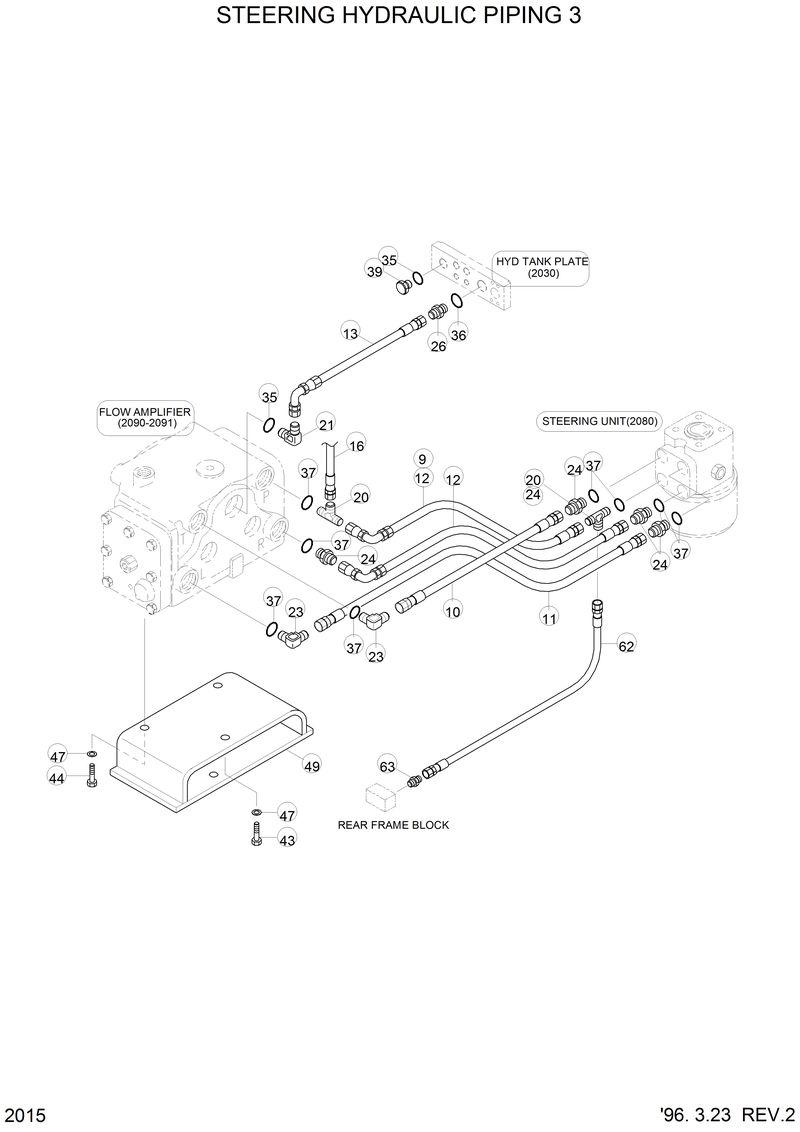

Запчасти Hyundai HL770 STEERING HYDRAULIC PIPING 3

P610-085019

P610-085019-Hose Assy-Thd

34L1-02060

34L1-02060-Hose Assy-Thd

P010-110004

P010-110004-Connector

P010-110004

P010-110004-Connector

P320-080408

P320-080408-Tee

P320-080408

P320-080408-Tee

P600-047008

P600-047008-Hose Assy-Thd

P610-083018

P610-083018-Hose Assy-Thd

34L1-01253

34L1-01253-Bracket Wa

10

P600-083014

P600-083014-Hose Assy-Thd

11

P600-085015

P600-085015-Hose Assy-Thd

12

P620-085017

P620-085017-Hose Assy-Thd 0x90

13

P620-162022

P620-162022-Hose Assy-Thd 0x90

16

P600-043008

P600-043008-Hose Assy-Thd

21

P020-110017

P020-110017-Elbow-90

23

P020-110003

P020-110003-Elbow-90

26

P010-110006

P010-110006-Connector

35

S631-024001

S631-024001-O-Ring

36

S631-029001

S631-029001-O-Ring

37

S631-018001

S631-018001-O-Ring

39

P220-110105

P220-110105-Plug

43

S017-100252

S017-100252-Bolt-Hex

44

S017-100302

S017-100302-Bolt-Hex

47

S411-100002

S411-100002-Washer-Spring

49

34L1-01252

34L1-01252-Bracket Wa

62

P620-047022

P620-047022-Hose Assy-Thd,0x90

63

P010-430002

P010-430002-Connector

9

P620-085015

P620-085015-Hose Assy-Thd 0x90
