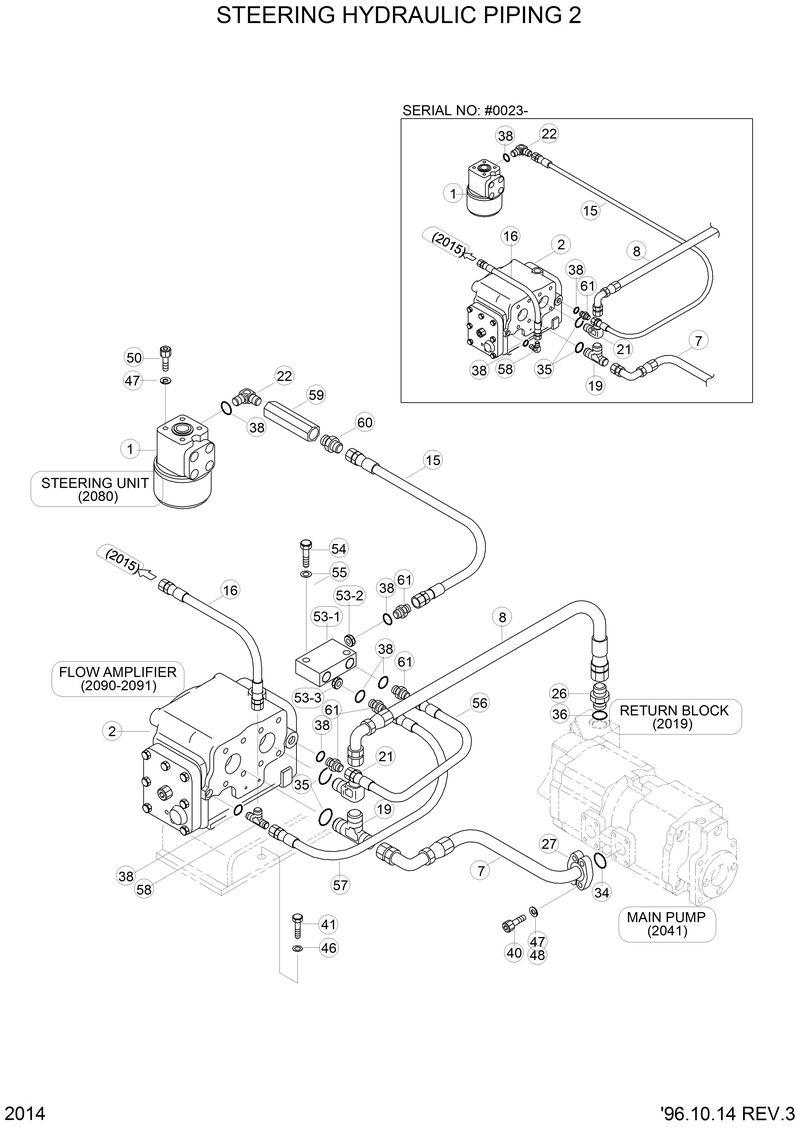

Запчасти Hyundai HL770 STEERING HYDRAULIC PIPING 2

34L1-00031

34L1-00031-Flow Amplifier

S107-100754

S107-100754-Deleted...

S411-100002

S411-100002-Washer-Spring

S411-100002

S411-100002-Washer-Spring

S631-011001

S631-011001-O-Ring

P620-047025

P620-047025-Hose Assy-Thd,0x90

P620-047029

P620-047029-Hose Assy-Thd,0x90

P600-047008

P600-047008-Hose Assy-Thd

P020-110001

P020-110001-Elbow-90

S631-011001

S631-011001-O-Ring

P010-110002

P010-110002-Connector

P010-110002

P010-110002-Connector

S017-100352

S017-100352-Bolt-Hex

1

34L1-00020

34L1-00020-Steering Unit

15

P620-047015

P620-047015-Hose Assy-Thd 0x90

16

P600-043008

P600-043008-Hose Assy-Thd

19

34L1-01260

34L1-01260-Tee

2

34L1-00030

34L1-00030-Flow Amplifier

21

P020-110017

P020-110017-Elbow-90

22

34L1-01620

34L1-01620-Elbow-90

26

P010-110006

P010-110006-Connector

27

34L1-01440

34L1-01440-Flange Wa

34

31L1-0059

31L1-0059-O-Ring

35

S631-024001

S631-024001-O-Ring

36

S631-029001

S631-029001-O-Ring

40

34L1-01420

34L1-01420-Bolt-Socket

41

S017-120252

S017-120252-Bolt-Hex

46

S441-120002

S441-120002-Washer-Hardened

48

S411-120002

S411-120002-Washer-Spring

50

S107-100354

S107-100354-Bolt-Socket

53

34L1-01641

34L1-01641-Block Assy

53-1

34L1-01950

34L1-01950-. Block

53-2

34L1-01960

34L1-01960-. Connector

53-3

34L1-01970

34L1-01970-. Connector

54

S015-080552

S015-080552-Bolt-Hex

55

S411-080002

S411-080002-Washer-Spring

56

P600-047010

P600-047010-Hose Assy

57

P600-047012

P600-047012-Hose Assy-Thd

58

P320-040404

P320-040404-Tee

60

P010-430002

P010-430002-Connector

7

P620-164011

P620-164011-Hose Assy-Thd

8

P620-164021

P620-164021-Hose Assy-Thd

N59

34L1-01650

34L1-01650-Check Valve
