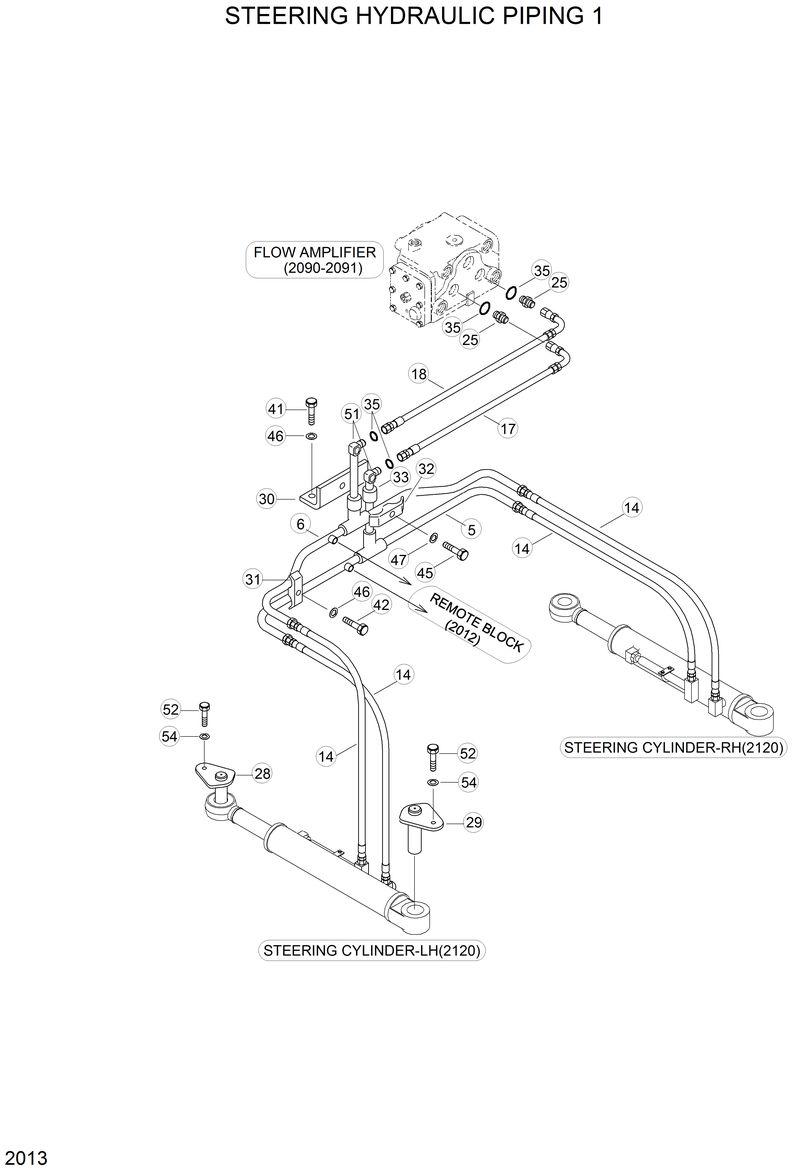

Запчасти Hyundai HL770 STEERING HYDRAULIC PIPING 1

14

P603-124018

P603-124018-Hose Assy-Thd

17

P770-124007

P770-124007-Hose Assy-Thd 90x45

18

P770-124011

P770-124011-Hose Assy-Thd 90x45

25

P010-110005

P010-110005-Connector

28

34L1-00811

34L1-00811-Pin Wa

29

34L1-01530

34L1-01530-Pin Wa

30

34L1-01271

34L1-01271-Plate Wa

31

34L1-01540

34L1-01540-Clamp

32

34L1-00431

34L1-00431-Clamp

33

S690-027100

S690-027100-Grommet

35

S631-024001

S631-024001-O-Ring

42

S017-120252

S017-120252-Bolt-Hex

42

S017-120252

S017-120252-Bolt-Hex

45

S017-100752

S017-100752-Bolt-Hex

46

S441-120002

S441-120002-Washer-Hardened

47

S411-100002

S411-100002-Washer-Spring

5

34L1-01511

34L1-01511-Pipe Wa

51

P020-110004

P020-110004-Elbow-90

52

S017-120352

S017-120352-Bolt-Hex

6

34L1-01521

34L1-01521-Pipe Wa

N3

34L1-00072

34L1-00072-Steering Cylinder-Lh

N4

34L1-00081

34L1-00081-Steering Cylinder-Rh
