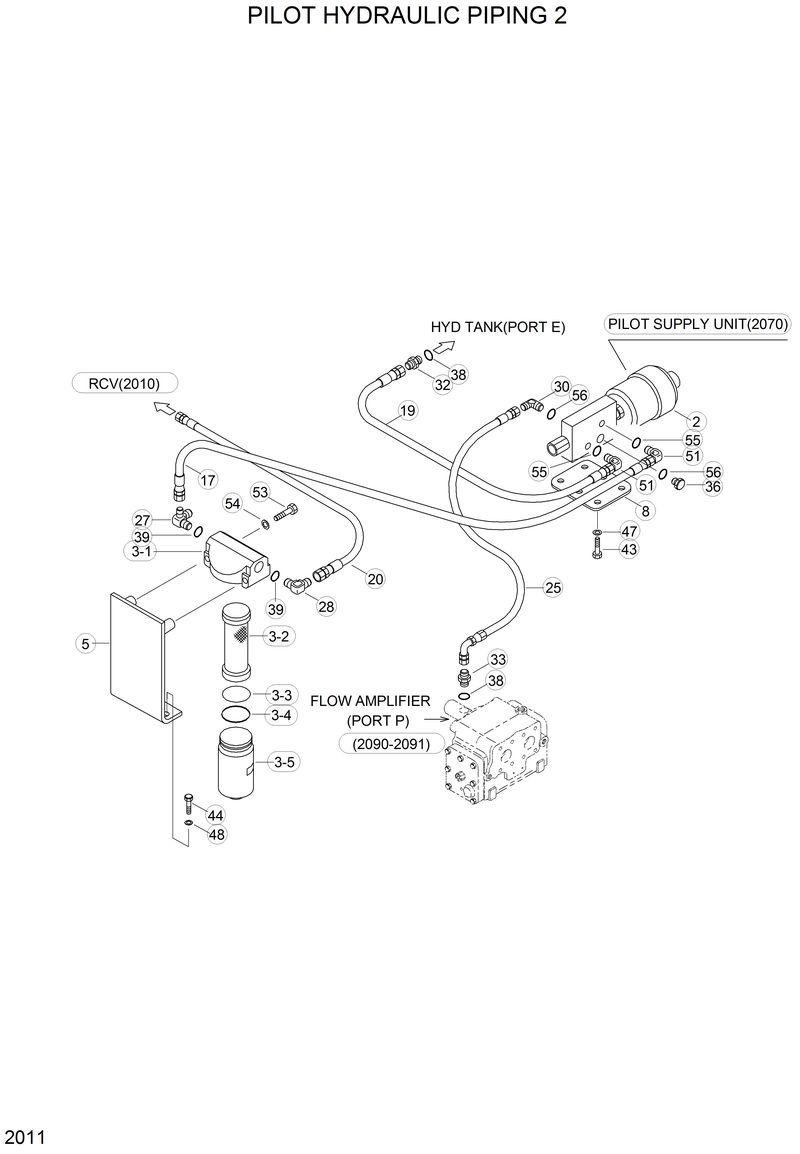

Запчасти Hyundai HL770 PILOT HYDRAULIC PIPING 2

17

P600-042017

P600-042017-Hose Assy-Thd

19

P620-042011

P620-042011-Hose Assy-Thd 0x90

2

31L6-00050

31L6-00050-Pilot Supply Unit

20

P600-042011

P600-042011-Hose Assy

25

P620-066026

P620-066026-Hose Assy-Thd 0x90

27

31L3-0215

31L3-0215-Elbow-90

28

31L3-0375

31L3-0375-Elbow-90

3

31E3-0017

31E3-0017-Filter-Line

3-1

31E3-0067

31E3-0067-. Head-Filter

3-2

31E3-0018

31E3-0018-. Element-Line Filter

3-3

31E3-0069

31E3-0069-. Ring

3-4

31E3-0070

31E3-0070-. O-Ring

3-5

31E3-0071

31E3-0071-. Cap

30

P020-310004

P020-310004-Elbow-90

32

P010-110013

P010-110013-Connector

33

P010-110003

P010-110003-Connector

36

P220-310103

P220-310103-Plug

38

S631-014001

S631-014001-O-Ring

39

S631-018001

S631-018001-O-Ring

43

S015-080202

S015-080202-Bolt-Hex

44

S017-100252

S017-100252-Bolt-Hex

47

S403-082002

S403-082002-Washer-Plain

48

S403-102002

S403-102002-Washer-Plain

5

34L1-01881

34L1-01881-Plate Wa

51

P020-310002

P020-310002-Elbow-90

53

S015-060652

S015-060652-Bolt-Hex

54

S411-060002

S411-060002-Washer-Spring

55

S611-012001

S611-012001-O-Ring

56

S611-016001

S611-016001-O-Ring

8

34L1-01500

34L1-01500-Plate
