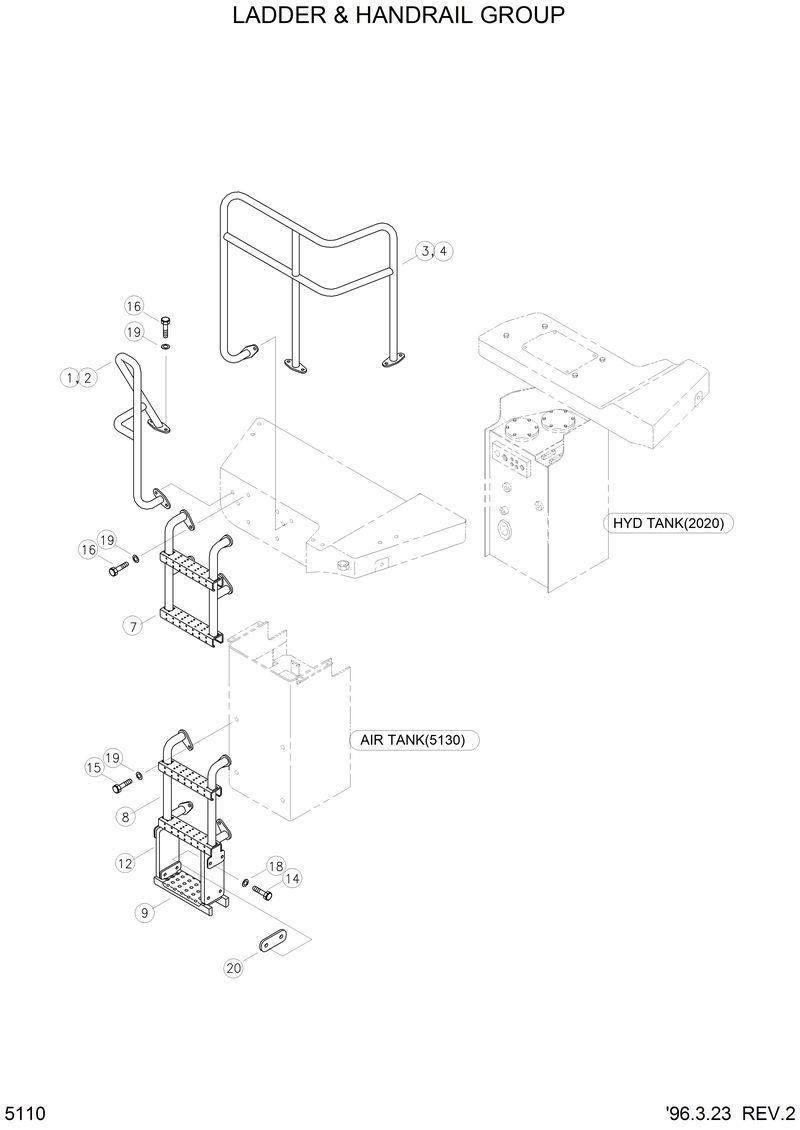

Запчасти Hyundai HL770 LADDER & HANDRAIL GROUP

74L1-20411

74L1-20411-Handrail Wa-Rh

74L1-20401

74L1-20401-Handrail Wa-Lh

74L1-20511

74L1-20511-Band

1

74L1-20400

74L1-20400-Handrail Wa-Lh

12

74L1-20510

74L1-20510-Band

14

S017-100452

S017-100452-Bolt-Hex

15

S017-120252

S017-120252-Bolt-Hex

16

S017-120302

S017-120302-Bolt-Hex

18

S411-100002

S411-100002-Washer-Spring

19

S441-120002

S441-120002-Washer-Hardened

2

74L1-20410

74L1-20410-Handrail Wa-Rh

20

74L3-20640

74L3-20640-Plate

3

74L1-20420

74L1-20420-Handrail Wa-Lh

4

74L1-20430

74L1-20430-Handrail Wa-Rh

7

74L1-20460

74L1-20460-Ladder Wa-Upper

8

74L1-20470

74L1-20470-Ladder Wa-Lower

9

74L1-20480

74L1-20480-Plate Wa
