Запчасти Hyundai HL770 BOTTOM PLATE GROUP(#0075-#0205)

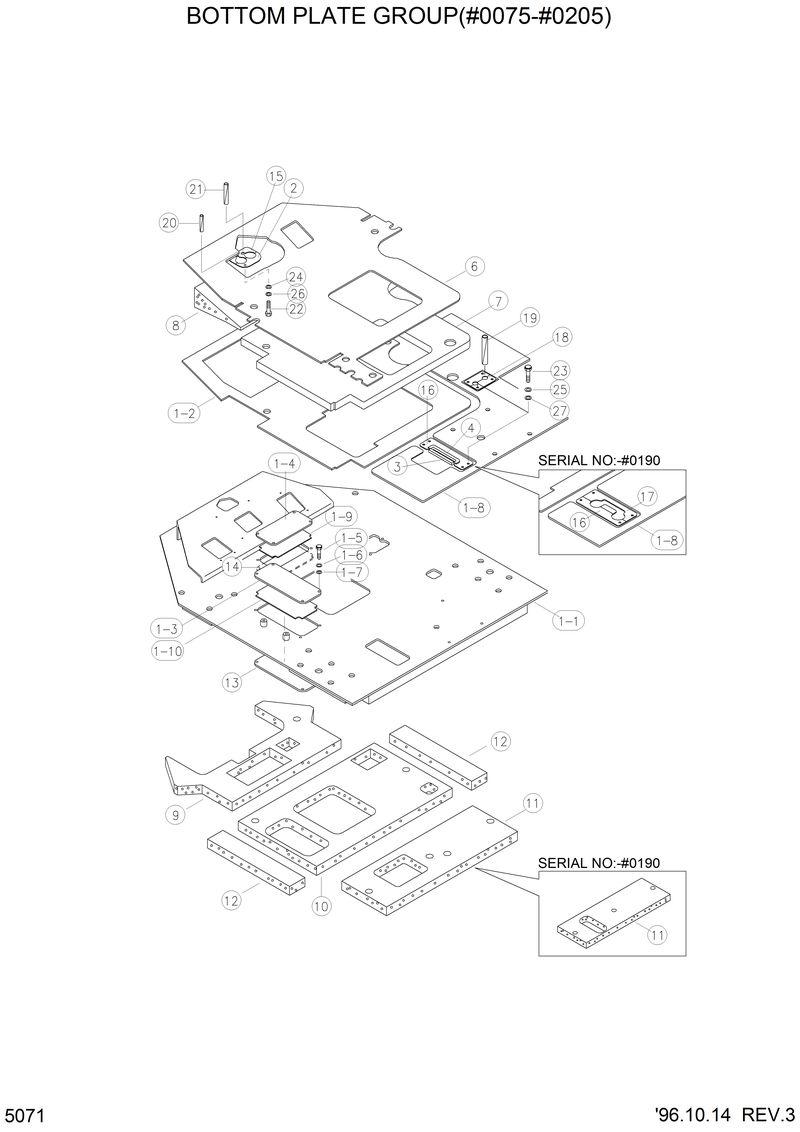

Схема запчастей Hyundai HL770 - BOTTOM PLATE GROUP(#0075-#0205)

Артикул

Название

Примечание

Количество

74L3-05141

74L3-05141-. Bottom Plate Wa

74L3-01218

74L3-01218-. Bottom Plate Wa

74L3-05130

74L3-05130-Bottom Plate Assy

74L3-00761

74L3-00761-Plate

74L3-05140

74L3-05140-. Bottom Plate Wa

74L3-00751

74L3-00751-Cover

74L3-01383

74L3-01383-Sponge-Bottom

74L3-00502

74L3-00502-. Sheet-Asphalt

74L3-05131

74L3-05131-Bottom Plate Assy

74L3-00741

74L3-00741-Cover

1

74L3-07196

74L3-07196-Bottom Plate Assy

1-1

74L3-01217

74L3-01217-. Bottom Plate Wa

1-10

74L3-00520

74L3-00520-. Sheet-Asphalt

1-2

74L3-07172

74L3-07172-. Sheet-Asphalt

1-3

74L3-02920

74L3-02920-. Cover

1-4

74L3-02940

74L3-02940-. Cover

1-5

S017-100202

S017-100202-. Bolt-Hex

1-6

S403-102002

S403-102002-. Washer-Plain

1-7

S411-100002

S411-100002-. Washer-Spring

1-8

74L3-00501

74L3-00501-. Sheet-Asphalt

1-9

74L3-00510

74L3-00510-. Sheet-Asphalt

10

74L3-01373

74L3-01373-Sponge-Bottom

11

74L3-01382

74L3-01382-Sponge-Bottom

12

74L3-07181

74L3-07181-Sponge-Bottom

13

74L3-00540

74L3-00540-Pad-Rubber

14

74L3-00550

74L3-00550-Pad-Rubber

15

74L3-00750

74L3-00750-Cover

16

74L3-00760

74L3-00760-Cover

17

74L3-00770

74L3-00770-Cover

18

74L3-00790

74L3-00790-Cover

19

74L3-00830

74L3-00830-Cover-Rubber

2

74L3-00740

74L3-00740-Cover

20

74L3-00810

74L3-00810-Cover-Rubber

21

74L3-00820

74L3-00820-Cover-Rubber

22

S015-060152

S015-060152-Bolt-Hex

23

S015-080152

S015-080152-Bolt-Hex

24

S411-060002

S411-060002-Washer-Spring

25

S411-080002

S411-080002-Washer-Spring

26

S403-062002

S403-062002-Washer-Plain

27

S403-080002

S403-080002-Washer-Plain

3

74L3-00930

74L3-00930-Grommet

4

74L3-00940

74L3-00940-Grommet

7

74L3-07152

74L3-07152-Sponge-Up

8

74L3-07161

74L3-07161-Sponge-Up

9

74L3-01363

74L3-01363-Sponge-Bottom

N6

74L3-01352

74L3-01352-Cover-Mat Floor

Выбрано товаров: 46
