Запчасти Hyundai HL770 EVAPORATOR UNIT(#0206-)

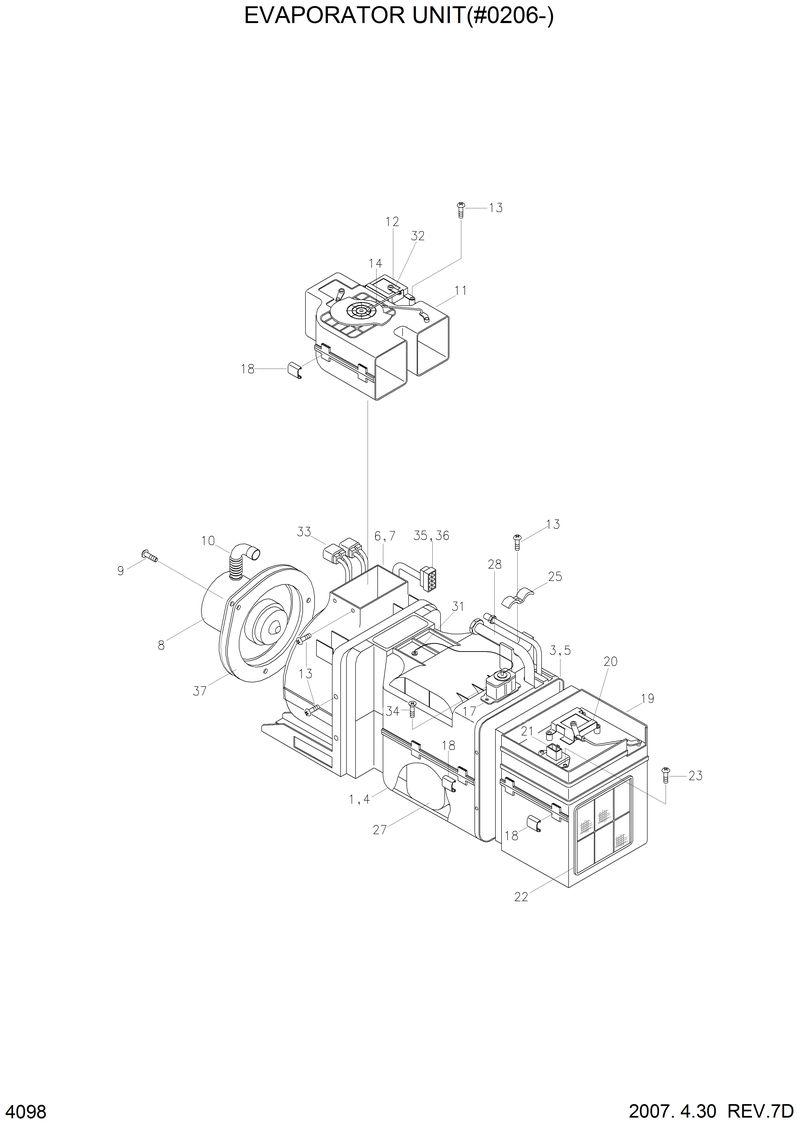

Схема запчастей Hyundai HL770 - EVAPORATOR UNIT(#0206-)

Артикул

Название

Примечание

Количество

*

14L1-01240

14L1-01240-. Evaporator Unit

1

AM12100400-0

AM12100400-0-.. Case-Low

10

3AH-0771

3AH-0771-.. Hose-Cooling

11

AM14001000-1

AM14001000-1-.. Damp Unit Assy

12

AM50200200-1

AM50200200-1-.. Motor Act-Mode

13

K500531

K500531-.. Screw

14

AM53300200-4

AM53300200-4-.. Rod-Cam

17

A110350101-3

A110350101-3-.. Thermostat

18

4AH-0688

4AH-0688-.. Clip-Case

19

AM13000200-1

AM13000200-1-.. Intake Unit Assy

20

AM50400100-1

AM50400100-1-.. Intake D/Act Assy

21

AM86000400-2

AM86000400-2-.. Resistor Assy

22

AM88000300-2

AM88000300-2-.. Air Filter-Refresh

23

K500533

K500533-.. Screw

25

AM81400200-3

AM81400200-3-.. Clamp-Evap Pipe

27

A110055001-0

A110055001-0-.. Evap Core Assy

3

AM11100402-0

AM11100402-0-.. Case-Upper

31

A840003301-4

A840003301-4-.. Sensor-Clip Temp

32

3AH-0705

3AH-0705-.. Clamp-Rod

33

A810001001-3

A810001001-3-.. Relay

34

K500523

K500523-.. Screw

35

AM83301500-1

AM83301500-1-.. Harness-Jump Wire

36

4AH-0643

4AH-0643-.. Holder-Wire

37

3AH-0774

3AH-0774-.. Packing-Motor

4

AM75000800-1

AM75000800-1-.. Insulation-Low

5

AM75000700-1

AM75000700-1-.. Insulation-Upper

6

AM13100100-0

AM13100100-0-.. Case-Blower

7

AM75000900-0

AM75000900-0-.. Insulation-Blower

8

AM60001700-2

AM60001700-2-.. Fan & Motor Assy

9

4AH-0886

4AH-0886-.. Screw

N

@

@-Not Individually Supplied

N28

A113055401-2

A113055401-2-.. Pipe Assy-Outlet

Выбрано товаров: 32
