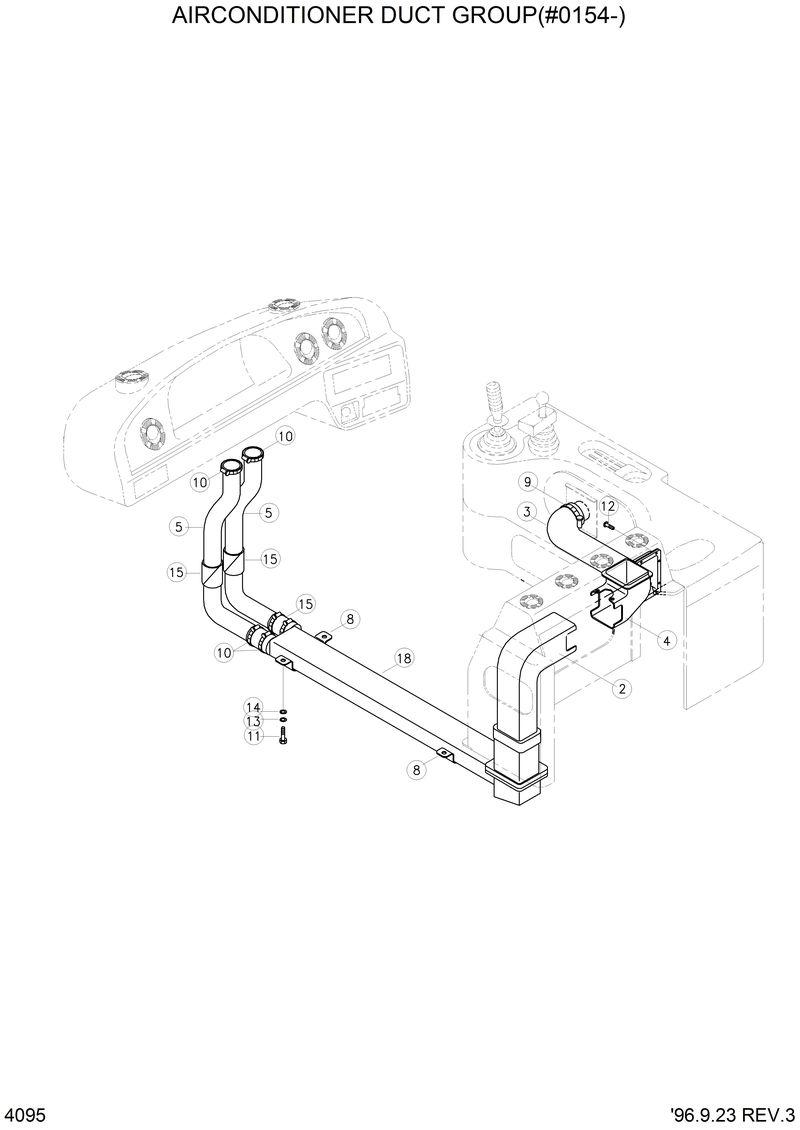

Запчасти Hyundai HL760 AIR CONDITIONER DUCT GROUP(#0154-)

10

S572-530002

S572-530002-Clamp-Hose Wire Type

11

S017-100152

S017-100152-Bolt-Hex

12

S151-040152

S151-040152-Screw-Cross,R/Tap

13

S411-100002

S411-100002-Washer-Spring

14

S403-102002

S403-102002-Washer-Plain

15

74L3-03210

74L3-03210-Connector-Hose

18

74L3-00971

74L3-00971-Duct

2

74L3-03351

74L3-03351-Duct Assy

3

74L3-03361

74L3-03361-Duct Assy

4

74L3-03371

74L3-03371-Duct

5

74L3-00342

74L3-00342-Hose

8

74L3-00391

74L3-00391-Bracket

9

S520-100000

S520-100000-Clamp-Hose
