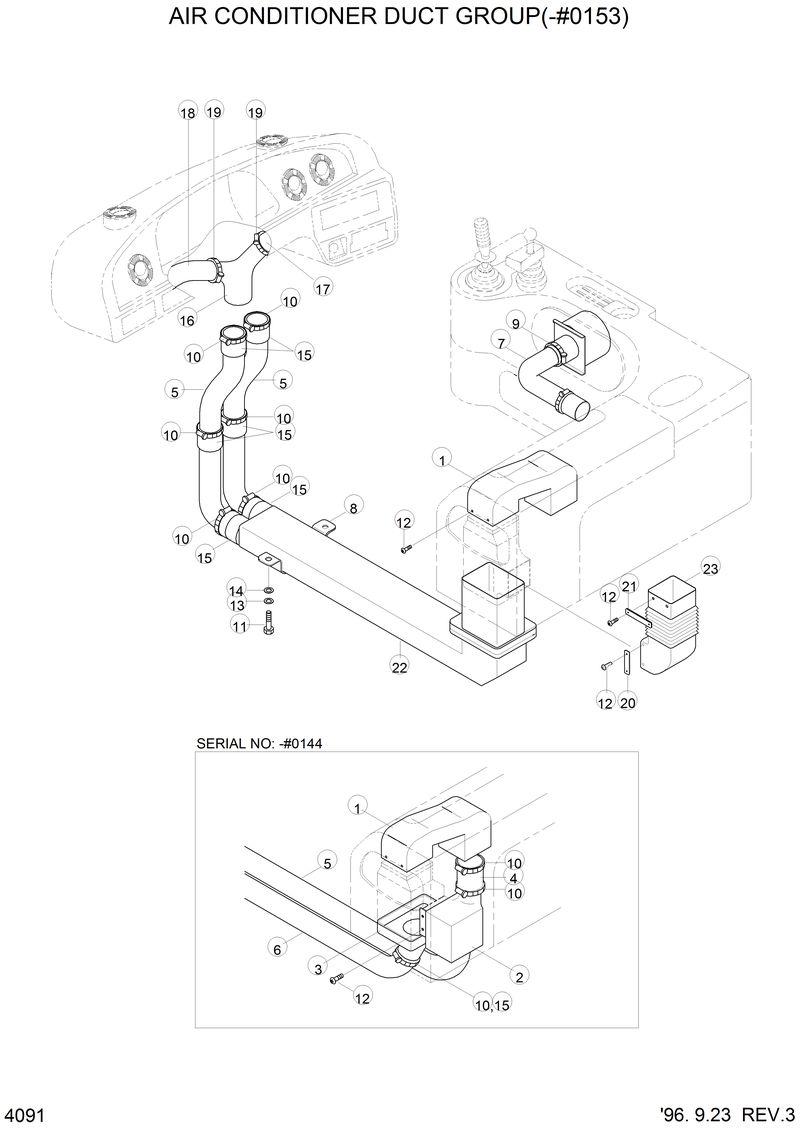

Запчасти Hyundai HL760 AIR CONDITIONER DUCT GROUP(-#0153)
№
Артикул
Название
Примечание
Количество
S151-040152
S151-040152-Screw-Cross,R/Tap
74L3-03210
74L3-03210-Connector-Hose
74L3-03210
74L3-03210-Connector-Hose
74L3-03210
74L3-03210-Connector-Hose
74L3-00342
74L3-00342-Hose
S151-040152
S151-040152-Screw-Cross,R/Tap
1
74L3-00410
74L3-00410-Duct
11
S017-100152
S017-100152-Bolt-Hex
13
S411-100002
S411-100002-Washer-Spring
14
S403-102002
S403-102002-Washer-Plain
16
74L3-03050
74L3-03050-Duct-Center
17
74L3-03060
74L3-03060-Hose-Rh
18
74L3-03070
74L3-03070-Hose-Lh
19
S572-530002
S572-530002-Clamp-Hose Wire Type
19
S572-530002
S572-530002-Clamp-Hose Wire Type
2
74L3-00421
74L3-00421-Duct
20
74L3-00950
74L3-00950-Plate
21
74L3-00960
74L3-00960-Plate
22
74L3-00970
74L3-00970-Duct
23
74L3-00980
74L3-00980-Duct
3
74L3-00490
74L3-00490-Duct
4
74L3-03200
74L3-03200-Hose
5
74L3-00341
74L3-00341-Hose
7
74L3-00382
74L3-00382-Hose
8
74L3-00391
74L3-00391-Bracket
9
S572-930002
S572-930002-Clamp-Hose Wire Type
N6
74L3-00351
74L3-00351-Hose
Выбрано товаров: 27
