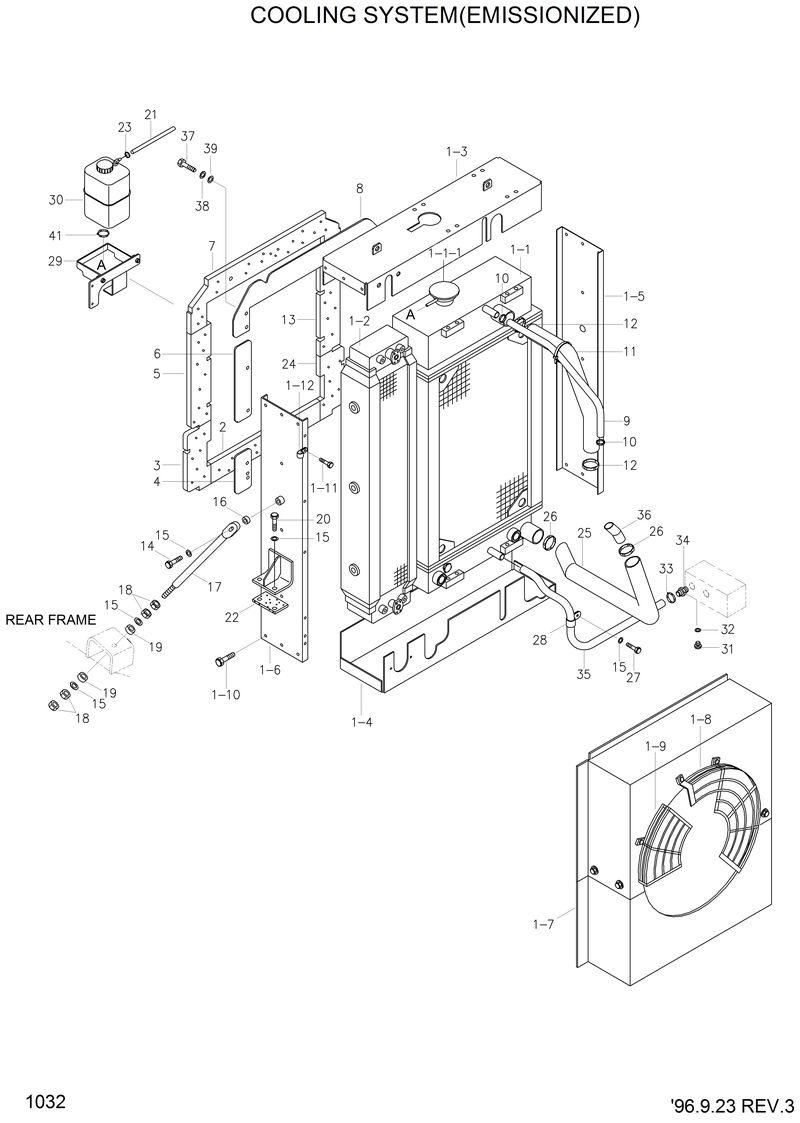

Запчасти Hyundai HL760 COOLING SYSTEM(LOW EMISSION)

1

14L4-00891

14L4-00891-Radiator Total Assy

1-1

14L4-00630

14L4-00630-. Radiator

1-1-1

12101811

12101811-.. Cap-Radiator

1-10

91010221

91010221-. Bolt-Asm

1-11

91008200

91008200-. Bolt-Asm

1-12

31L3-0354

31L3-0354-. Clamp

1-2

14L4-00640

14L4-00640-. Oil Cooler

1-3

14L4-00650

14L4-00650-. Support Assy-Upper

1-4

14L4-00660

14L4-00660-. Support Assy-Lower

1-5

14L4-00670

14L4-00670-. Support Assy-Side

1-6

14L4-00680

14L4-00680-. Support Assy-Side

1-7

14L4-00901

14L4-00901-. Shroud-Complete

1-8

14L4-00911

14L4-00911-. Fan Guard(1) Assy

1-9

14L4-00921

14L4-00921-. Fan Guard(2) Assy

10

S572-200002

S572-200002-Clamp-Hose Wire Type

11

14L4-00811

14L4-00811-Hose-Inlet

12

S572-800002

S572-800002-Clamp-Hose Wire Type

13

14L4-00262

14L4-00262-Sponge

14

S017-120252

S017-120252-Bolt-Hex

15

S441-120002

S441-120002-Washer-Hardened

16

11L1-1005

11L1-1005-Grommet

17

14L3-00130

14L3-00130-Stay

18

S205-121002

S205-121002-Nut-Hex

19

14L3-00140

14L3-00140-Grommet

2

14L4-00311

14L4-00311-Sponge

20

S017-120352

S017-120352-Bolt-Hex

21

P710-061010

P710-061010-Hose

22

14L4-00280

14L4-00280-Plate-Rubber

23

S520-015000

S520-015000-Clamp-Hose

24

14L4-00292

14L4-00292-Sponge

25

14L4-00301

14L4-00301-Hose-Outlet

26

S572-730002

S572-730002-Clamp-Hose Wire Type

27

S017-120202

S017-120202-Bolt-Hex

28

31E7-0315

31E7-0315-Clamp

29

14L4-00830

14L4-00830-Bracket Assy

3

14L4-00202

14L4-00202-Sponge

30

14L4-00840

14L4-00840-Reservoir Tank

31

P220-110104

P220-110104-Plug-Hex

32

P392-180000

P392-180000-Washer-Copper

33

S572-220002

S572-220002-Clamp-Hose Wire Type

34

P090-100808

P090-100808-Connector

35

P710-081019

P710-081019-Hose

36

14L4-00320

14L4-00320-Pipe

37

S015-080202

S015-080202-Bolt-Hex

38

S411-080002

S411-080002-Washer-Spring

39

S403-082002

S403-082002-Washer-Plain

4

14L4-00212

14L4-00212-Plate-Screen

5

14L4-00222

14L4-00222-Sponge

6

14L4-00232

14L4-00232-Plate-Screen

7

14L4-00242

14L4-00242-Sponge

8

14L4-00252

14L4-00252-Plate-Screen

9

11E9-4107

11E9-4107-Hose-Vent
