Запчасти Hyundai HL760 COOLING SYSTEM(-#0114)

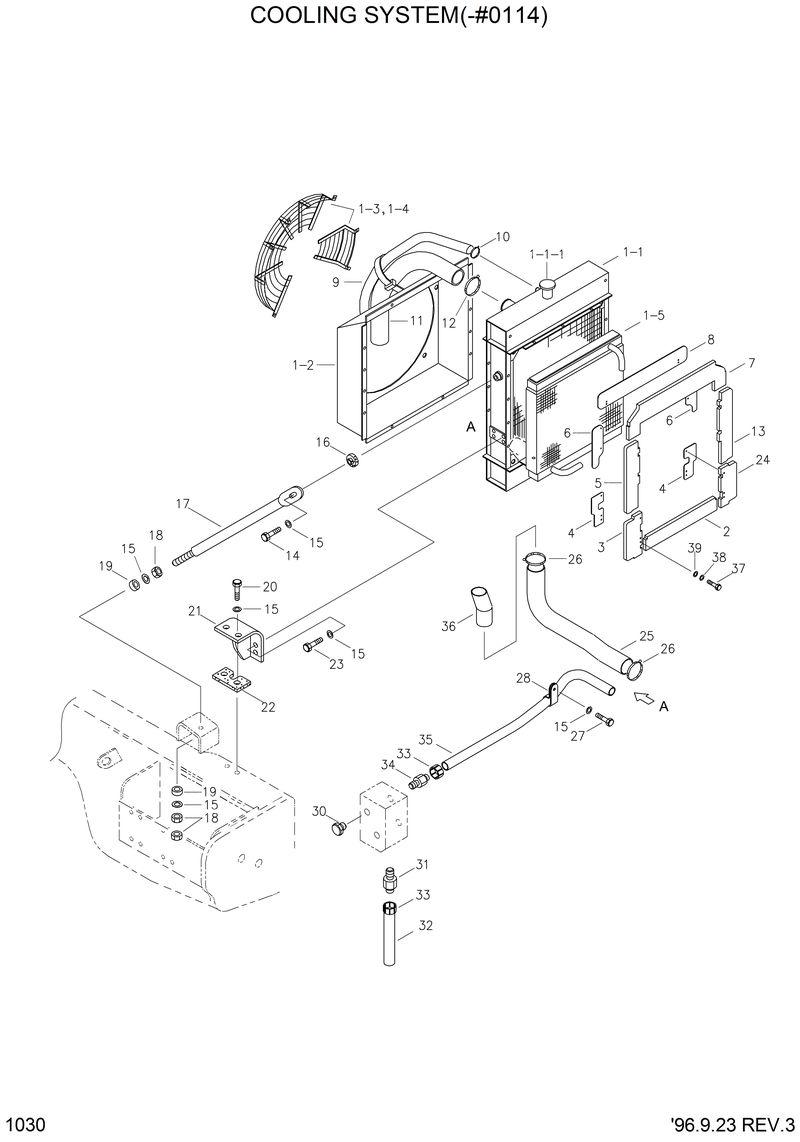

Схема запчастей Hyundai HL760 - COOLING SYSTEM(-#0114)

Артикул

Название

Примечание

Количество

14L4-00291

14L4-00291-Sponge

14L4-00201

14L4-00201-Sponge

14L4-00211

14L4-00211-Screen Plate

14L4-00810

14L4-00810-Hose-Inlet

1

14L4-00551

14L4-00551-Radiator Total Assy

1-1

14L4-00190

14L4-00190-. Radiator Assy

1-1-1

12101811

12101811-.. Cap-Radiator

1-2

11L4-01391

11L4-01391-. Shroud

1-3

11L4-0174

11L4-0174-. Guard-Fan

1-4

14L4-00610

14L4-00610-. Fan Guard

1-5

14L1-00241

14L1-00241-. Oil Cooler

10

S572-200002

S572-200002-Clamp-Hose Wire Type

11

11L4-0136

11L4-0136-Hose-Inlet

12

S572-800002

S572-800002-Clamp-Hose Wire Type

13

14L4-00261

14L4-00261-Sponge

14

S017-120252

S017-120252-Bolt-Hex

15

S441-120002

S441-120002-Washer-Hardened

16

11L1-1005

11L1-1005-Grommet

17

14L3-00130

14L3-00130-Stay

18

S205-121002

S205-121002-Nut-Hex

19

14L3-00140

14L3-00140-Grommet

2

14L4-00310

14L4-00310-Sponge

20

S017-120352

S017-120352-Bolt-Hex

21

14L4-00270

14L4-00270-Bracket Wa

22

14L4-00280

14L4-00280-Plate-Rubber

23

S017-120302

S017-120302-Bolt-Hex

24

14L4-00290

14L4-00290-Sponge

25

14L4-00300

14L4-00300-Hose-Outlet

26

S572-730002

S572-730002-Clamp-Hose Wire Type

27

S017-120202

S017-120202-Bolt-Hex

28

31E7-0315

31E7-0315-Clamp

3

14L4-00200

14L4-00200-Sponge

30

14L3-00410

14L3-00410-Plug

31

P090-100806

P090-100806-Connector-Hose

32

P710-081004

P710-081004-Hose-Vent

33

S572-220002

S572-220002-Clamp-Hose Wire Type

34

P090-100808

P090-100808-Connector

35

P710-081019

P710-081019-Hose

36

14L4-00320

14L4-00320-Pipe

37

S015-080202

S015-080202-Bolt-Hex

38

S411-080002

S411-080002-Washer-Spring

39

S403-082002

S403-082002-Washer-Plain

4

14L4-00210

14L4-00210-Screen Plate

5

14L4-00221

14L4-00221-Sponge

6

14L4-00231

14L4-00231-Screen Plate

7

14L4-00241

14L4-00241-Sponge

8

14L4-00251

14L4-00251-Screen Plate

9

11E9-4107

11E9-4107-Hose-Vent

Выбрано товаров: 48
