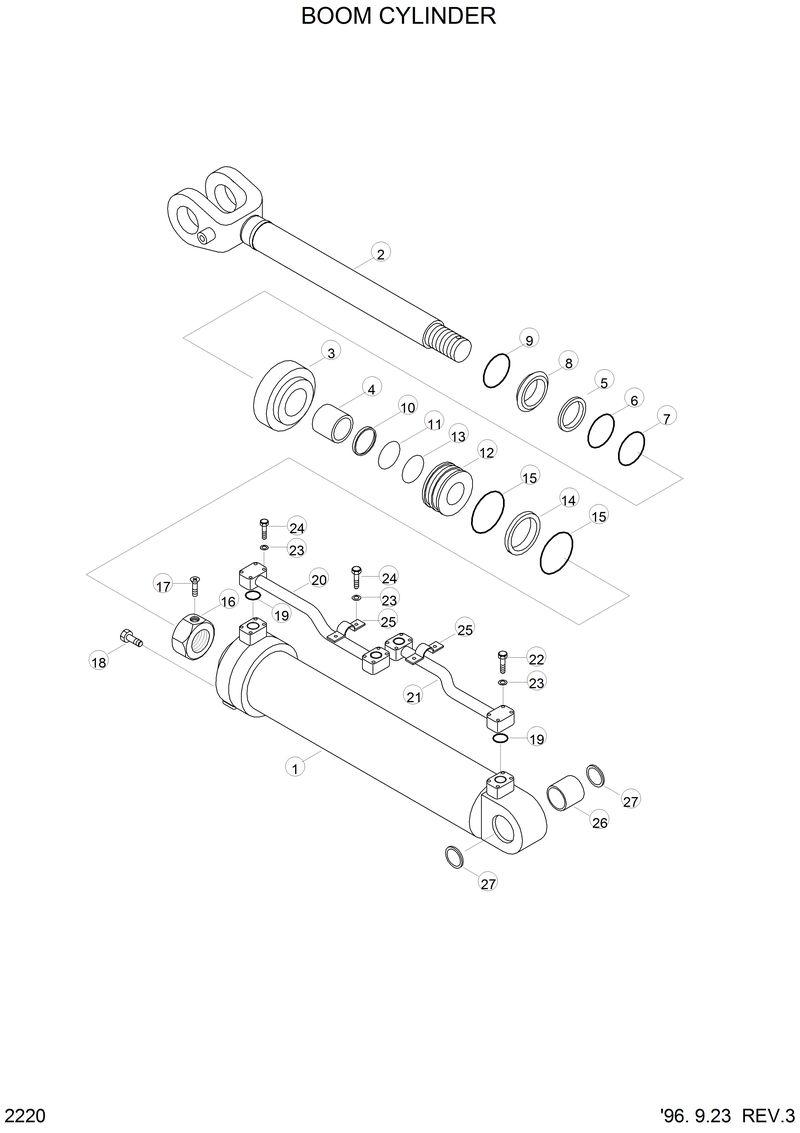

Запчасти Hyundai HL760 BOOM CYLINDER

34L4-00030

34L4-00030-Boom Cylinder-Rh

31Y2-02330

31Y2-02330-. Tube Assy-Rh

31Y2-02460

31Y2-02460-. Pipe Assy-R-Rh

31Y2-02480

31Y2-02480-. Pipe Assy-B-Rh

*

34L4-00020

34L4-00020-Boom Cylinder-Lh

1

31Y2-02320

31Y2-02320-. Tube Assy-Lh

12

31Y2-02440

31Y2-02440-. Piston

16

31YC-62170

31YC-62170-. Nut-Lock

17

S114-100124

S114-100124-. Screw-Set

18

S109-160654

S109-160654-. Deleted...

2

31Y2-02400

31Y2-02400-. Rod Assy

20

31Y2-02450

31Y2-02450-. Pipe Assy-R-Lh

21

31Y2-02470

31Y2-02470-. Pipe Assy-B-Lh

22

S017-100602

S017-100602-. Bolt-Hex

23

S411-100002

S411-100002-. Washer-Spring

24

S011-100152

S011-100152-. Bolt-Hex

25

31YC-38030

31YC-38030-. Clamp-Pipe

26

31YC-13080

31YC-13080-. Bushing-Pin

3

31Y2-02430

31Y2-02430-. Gland

4

S731-090040

S731-090040-. Bushing

K

31Y2-02490

31Y2-02490-Seal Kit

K10

S631-150004

S631-150004-. O-Ring

K11

S641-150003

S641-150003-. Ring-Back Up

K13

S631-090004

S631-090004-. O-Ring

K14

Y410-160000

Y410-160000-. Seal-Piston

K15

Y310-160100

Y310-160100-. Ring-Wear

K19

Y171-024004

Y171-024004-. O-Ring

K27

S700-095208

S700-095208-. Seal-Dust

K5

Y200-090011

Y200-090011-. Seal-Rod

K6

Y180-090020

Y180-090020-. Ring-Back Up

K7

Y240-090011

Y240-090011-. Ring-Buffer

K8

Y110-090011

Y110-090011-. Wiper-Dust

K9

Y190-104000

Y190-104000-. Ring-Snap
