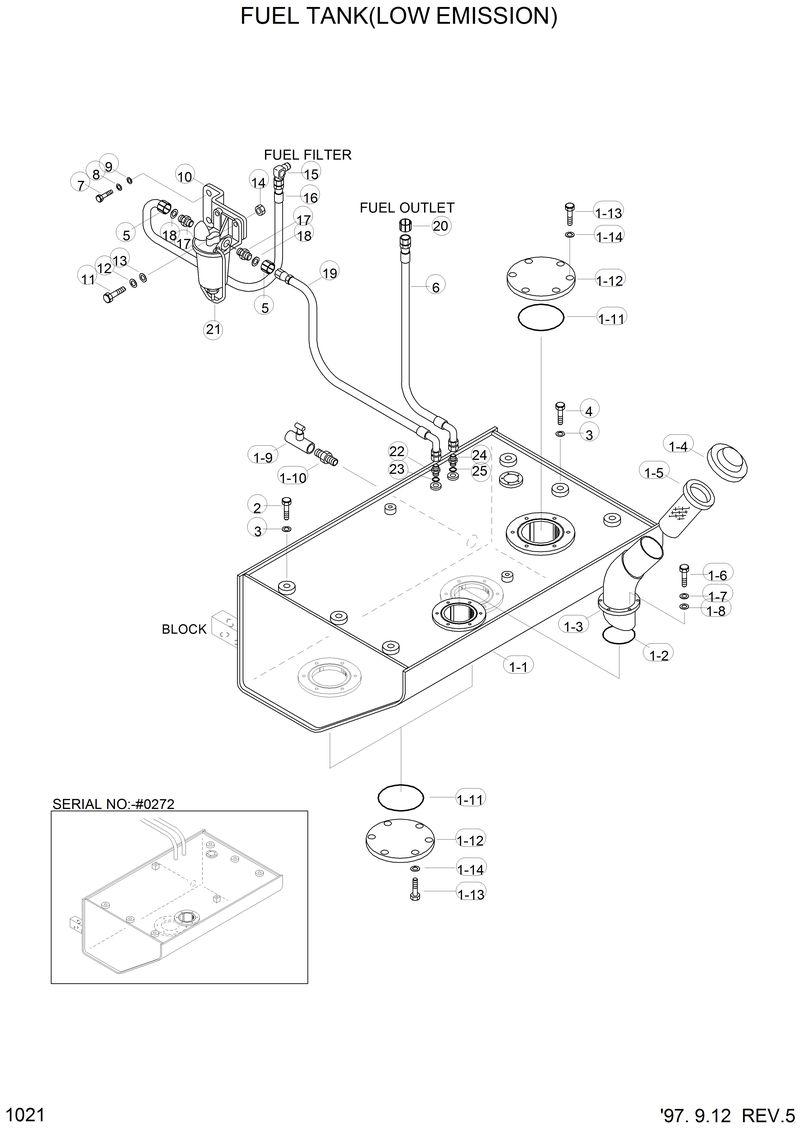

Запчасти Hyundai HL760 FUEL TANK(LOW EMISSION)

S017-100252

S017-100252-. Bolt-Hex

14L4-01111

14L4-01111-. Fuel Tank Wa

S632-165001

S632-165001-. O-Ring

31E3-4526

31E3-4526-. Cover

S441-100002

S441-100002-. Washer-Hardened

1

14L4-01170

14L4-01170-Fuel Tank Assy

1-1

14L4-01110

14L4-01110-. Fuel Tank Wa

1-10

P040-001111

P040-001111-. Connector

1-11

S632-150001

S632-150001-. O-Ring

1-12

11L1-0134

11L1-0134-. Flange

1-13

S017-120302

S017-120302-. Bolt-Hex

1-14

S441-120002

S441-120002-. Washer-Hardened

1-2

S632-105001

S632-105001-. O-Ring

1-3

14L1-00460

14L1-00460-. Filler Wa

1-4

E131-1038

E131-1038-. Filler Cap

1-5

E131-1039

E131-1039-. Strainer

1-6

S015-080252

S015-080252-. Bolt-Hex

1-7

S411-080002

S411-080002-. Washer-Spring

1-8

S403-082002

S403-082002-. Washer-Plain

1-9

E131-1006

E131-1006-. Valve-Needle

10

11L4-02050

11L4-02050-Bracket

11

S015-080252

S015-080252-Bolt-Hex

12

S411-080002

S411-080002-Washer-Spring

13

S403-082002

S403-082002-Washer-Plain

14

S205-081002

S205-081002-Nut-Hex

16

14L4-01080

14L4-01080-Hose Assy

17

14L4-01070

14L4-01070-Connector

18

P392-120000

P392-120000-Washer-Copper

19

14L4-01060

14L4-01060-Hose Assy

2

S017-200602

S017-200602-Bolt-Hex

20

S520-015000

S520-015000-Clamp-Hose

21

3908633

3908633-Filter-Fuel

22

P010-110002

P010-110002-Connector

23

S631-011001

S631-011001-O-Ring

24

P010-110004

P010-110004-Connector

25

S631-018001

S631-018001-O-Ring

3

S441-200004

S441-200004-Washer-Hardened

4

S017-200402

S017-200402-Bolt-Hex

5

S520-027000

S520-027000-Clamp-Hose

6

14L4-00330

14L4-00330-Hose Assy

7

S017-100252

S017-100252-Bolt-Hex

8

S411-100002

S411-100002-Washer-Spring

9

S403-102002

S403-102002-Washer-Plain

N1

14L4-01171

14L4-01171-Fuel Tank Assy

N15

11L4-01090

11L4-01090-Elbow-90
