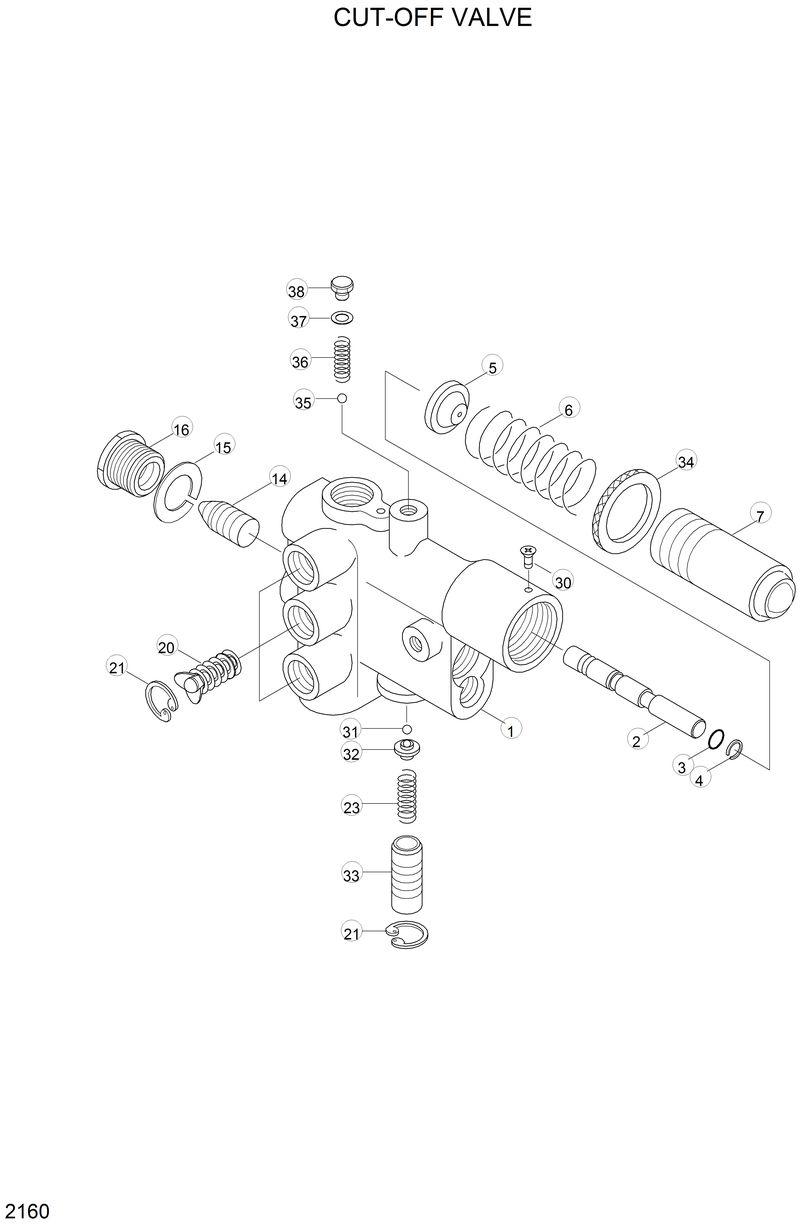

Запчасти Hyundai HL760 CUT-OFF VALVE

@

@-Not Individually Supplied

*

81L1-0002

81L1-0002-Cut-Off Valve

1

@

@-. Housing

14

4773975222

4773975222-. Valve-Return

2

@

@-. Spool

20

4773975212

4773975212-. Valve

21

@

@-. Ring-Retaining

23

8960311704

8960311704-. Spring

30

@

@-. Screw

31

8107010664

8107010664-. Ball

32

4773973804

4773973804-. Plug

34

8919907424

8919907424-. Nut

35

8107010034

8107010034-. Ball

36

8960496204

8960496204-. Spring

37

@

@-. Washer

37

@

@-. Washer

37

@

@-. Washer

38

@

@-. Plug

38

@

@-. Plug

4

@

@-. Ring-Back Up

5

@

@-. Cap

6

@

@-. Spring

7

4773970234

4773970234-. Pipe

N3

8970833084

8970833084-. O-Ring
