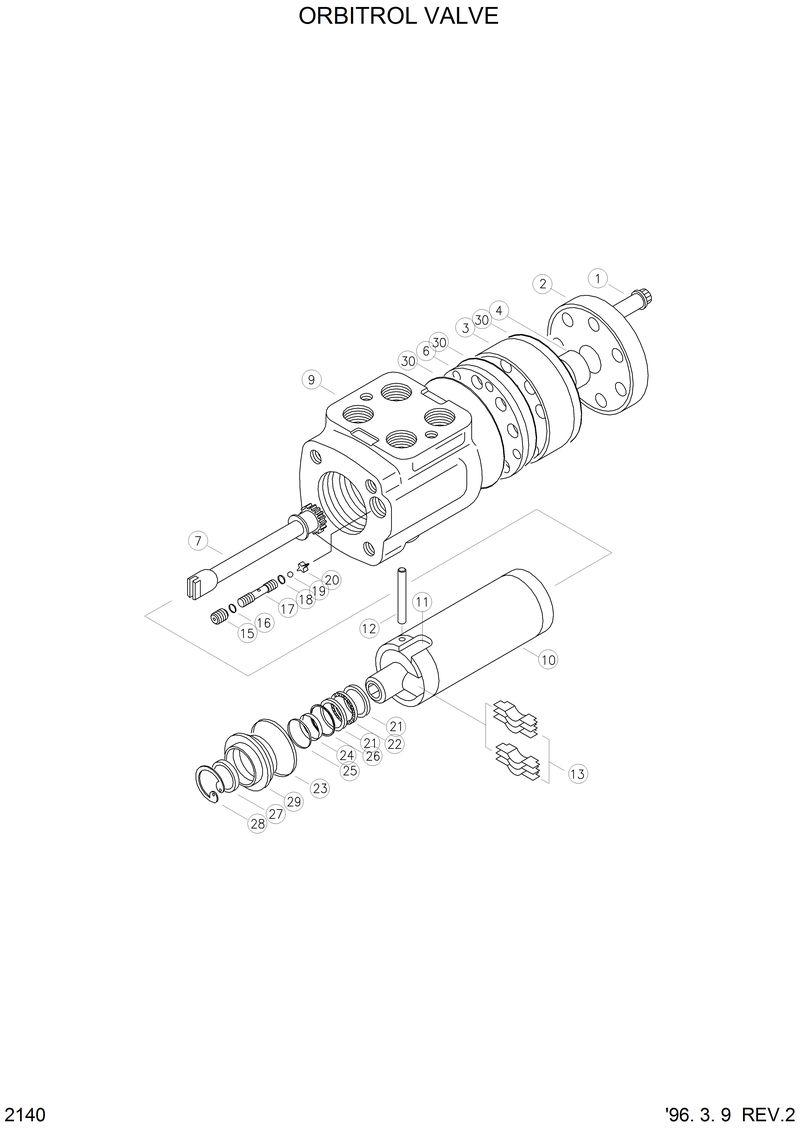

Запчасти Hyundai HL760 ORBITROL VALVE

31L2-3002

31L2-3002-Orbitrol Valve

31L2-3002

31L2-3002-Orbitrol Valve

1

5389-12

5389-12-. Screw-Cap

13

230327

230327-.. Spring-Centering

15

14380

14380-. Screw-Set

17

8318

8318-. Seat-Check Ball

19

18001

18001-. Ball-Check

2

8438S-1

8438S-1-. Cap-End

20

6862

6862-. Retainer-Check Ball

22

5544

5544-. Bearing-Needle

3

8436-11

8436-11-. Gerotor

4

8352S-2

8352S-2-. Spacer

6

7970

7970-. Plate-Spacer

7

5126

5126-. Drive

K

64426

64426-Seal Kit

K16

15007

15007-. O-Ring

K18

15006

15006-. O-Ring

K23

15074

15074-. O-Ring

K24

9092-033

9092-033-. Seal

K25

14400

14400-. Ring-Back Up

K27

844

844-. Seal-Dust

K30

5776

5776-. O-Ring

N

@

@-Not Individually Supplied

N10

@

@-.. Sleeve

N11

@

@-.. Spool

N12

15

15-.. Pin

N21

8329

8329-. Bearing-Race

N28

14317

14317-. Ring-Retaining

N29

8703

8703-. Bushing

N8

BL0055A

BL0055A-. Control Parts

N9

@

@-.. Housing

NK24

9233-001

9233-001-. Seal

NK26

25001-121

25001-121-. O-Ring
