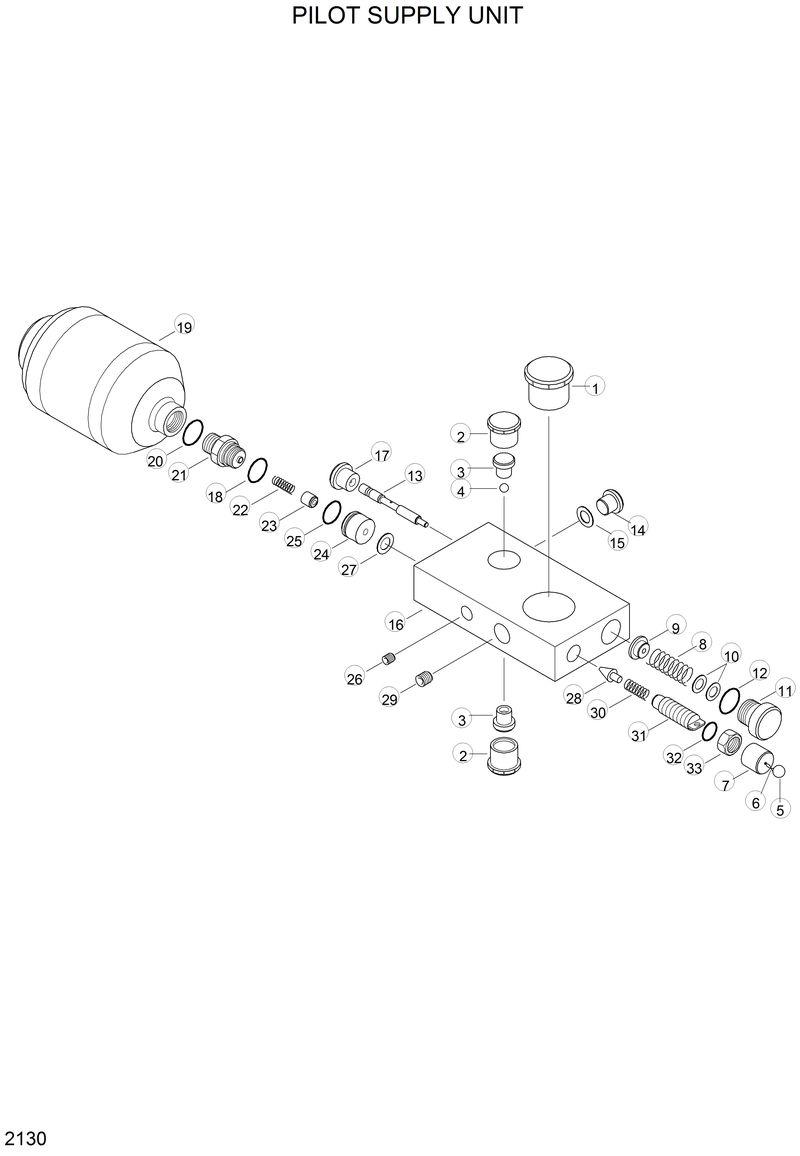

Запчасти Hyundai HL760 PILOT SUPPLY UNIT

*

31L6-00050

31L6-00050-Pilot Supply Unit

1

P9466003331

P9466003331-. Accumulator

10

P9466005501

P9466005501-. Seat-Valve

11

P9466005511

P9466005511-. O-Ring

12

P9466005401

P9466005401-. Plug

13

P9466005381

P9466005381-. Washer-Copper

14

P9466005361

P9466005361-. Plug

15

P9466005441

P9466005441-. Poppet-Valve

16

P9466005431

P9466005431-. Washer-Copper

17

P9466005351

P9466005351-. Plug

18

P9466005451

P9466005451-. Spring

19

P9466005461

P9466005461-. Screw-Adjusting

2

P9466005341

P9466005341-. Housing

20

P9466005471

P9466005471-. Washer

21

P9466005481

P9466005481-. Nut

22

P9466004881

P9466004881-. Wire-Sealing

23

P9466004871

P9466004871-. Lead

24

P9466002161

P9466002161-. Cup-Plastic

25

P9466005611

P9466005611-. Spring

26

P9466005581

P9466005581-. Guide-Spring

27

P9466005591

P9466005591-. Shim

28

P9466005561

P9466005561-. Plug

29

P9466005601

P9466005601-. Seal

3

P9466005411

P9466005411-. Spool

30

P9466005391

P9466005391-. Ball

31

P9466005371

P9466005371-. Seat

32

P9466005761

P9466005761-. Plug

33

P9466005751

P9466005751-. Plug

4

P9466005421

P9466005421-. Plug

5

P9466005541

P9466005541-. O-Ring

6

P9466005551

P9466005551-. Seal

7

P9466005531

P9466005531-. Adapter

8

P9466005521

P9466005521-. Spring

9

P9466005491

P9466005491-. Valve-Check
